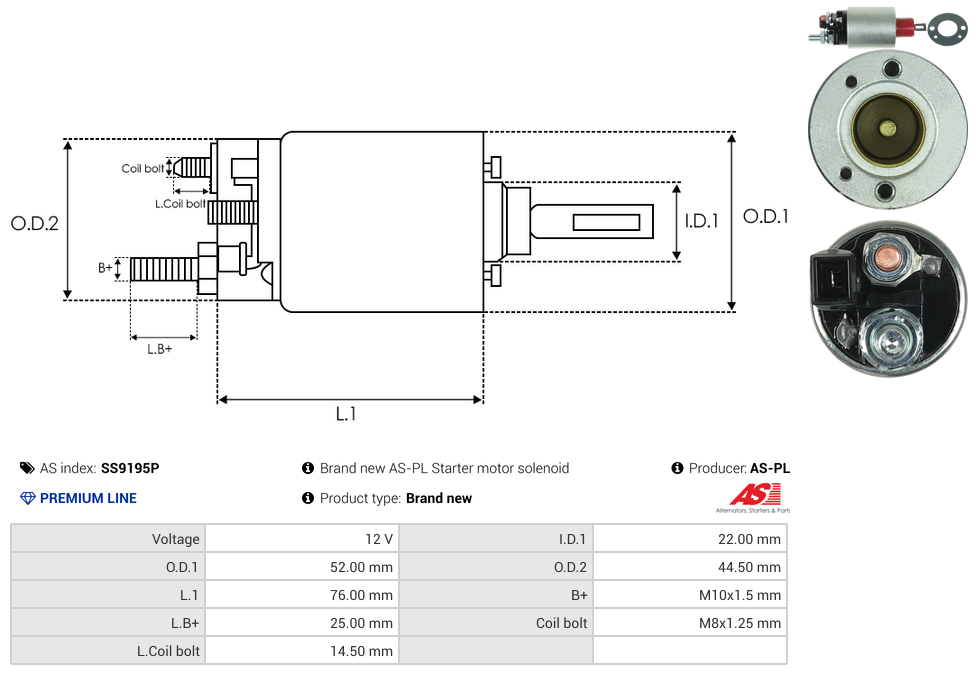

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 14.5 mm |
Inside Diameter (I.D.1) | 22 mm |
L.B+ | 25 mm |
Length (L.1) | 76 mm |
Outside Diameter (O.D.1) | 52 mm |
Outside Diameter (O.D.2) | 44.5 mm |
Type | Solenoid |
Unit Type | PRESTOLITE |
Voltage | 12 V |
Reference Information
35641160 K01351 UD16096SS 054.000.445 F042011165 ZM1482 35640995 227053 SS9195PVideo/Publications
35259880 35259870 35262710 35641160 5S4511000AA XC4511001CA UD16096SS XS4511001CA 35262580 35261120 2C4511001AA K01351 054.000.445 F042011165 ZM1482 35640995 4C4511001BA 227053 SS9195PAdd Your Number
