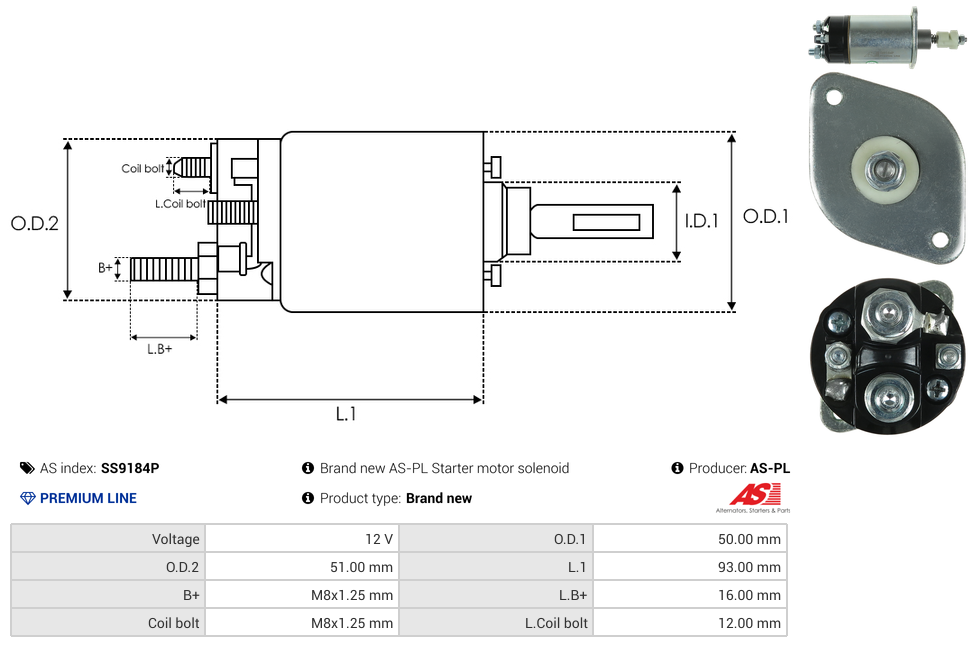

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 12 mm |
| L.B+ | 16 mm |
| Length (L.1) | 93 mm |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 51 mm |
| Type | Solenoid |
| Unit Type | PRESTOLITE |
| Voltage | 12 V |
Reference Information
227804 88DR-11001-A ZM821 SS9184PVideo/Publications
35258000 227804 88DR-11001-A ZM821 SS9184PAdd Your Number
