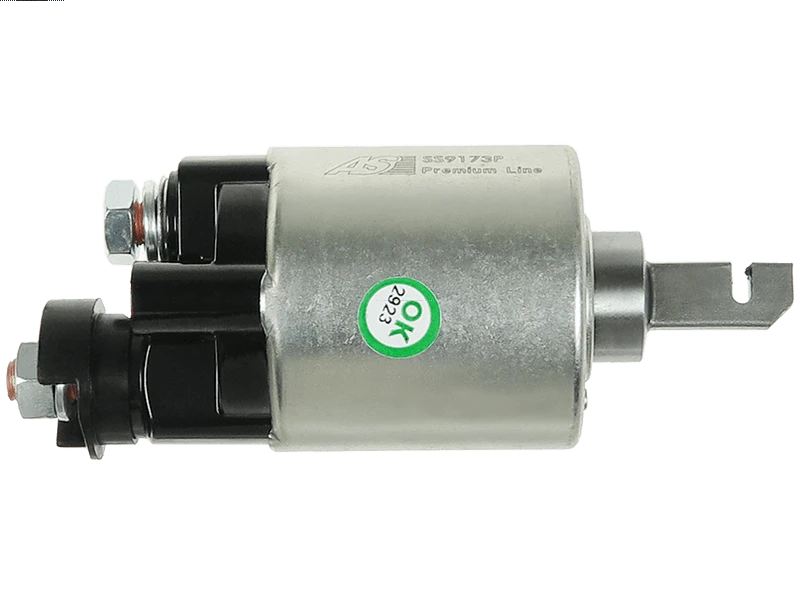

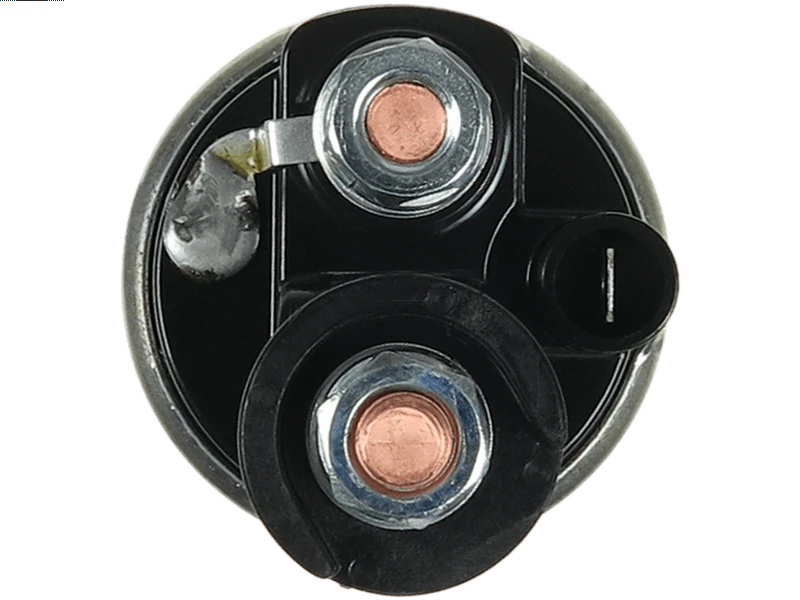

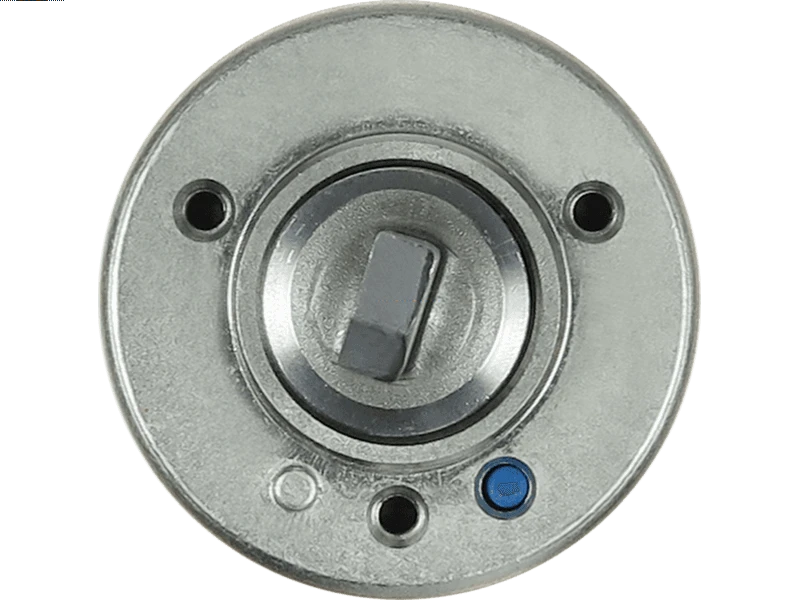

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 9 mm |
L.B+ | 12 mm |
Length (L.1) | 65.5 mm |
Outside Diameter (O.D.1) | 50.5 mm |
Outside Diameter (O.D.2) | 48 mm |
Type | Solenoid |
Unit Type | MITSUBA |
Voltage | 12 V |
Reference Information
81014583 31210-PT0-9050 E4775 138009 31210-PT0-004 SSU8009 SS9173P 227538 ZM604Video/Publications
81014583 SM40203 31210-PT0-9050 E4775 138009 31210-PT0-004 SSU8009 SS9173P SM40207 227538 ZM604Add Your Number
