Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 14 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 15 mm |
Length (L.1) | 67 mm |
Outside Diameter (O.D.1) | 51.5 mm |
Outside Diameter (O.D.2) | 45 mm |

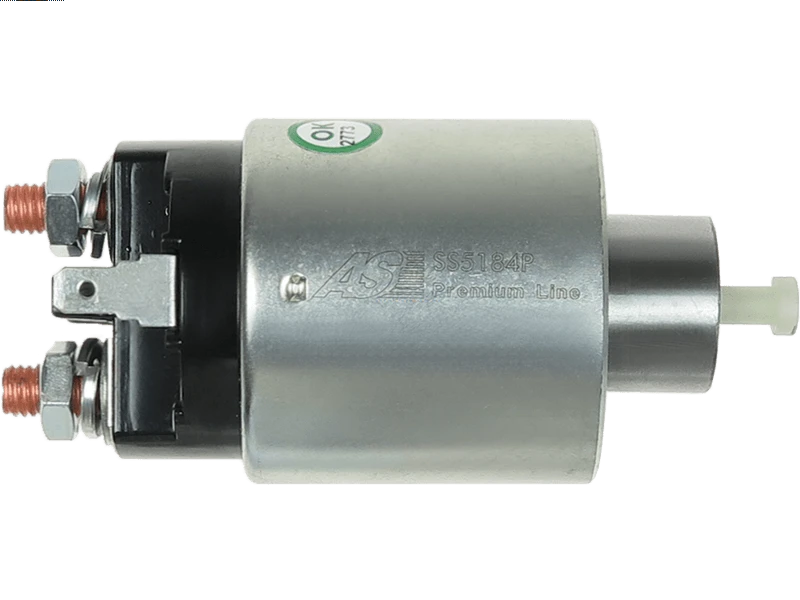

Type | Solenoid |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Reference Information
SS5184P SOL5145 ZM4995 M371XD2071Video/Publications
M000T31671ZC SS5184P M0T31671 M0T31671ZC 1810A008 M000T31671 ZM4995 M371XD2071Add Your Number
