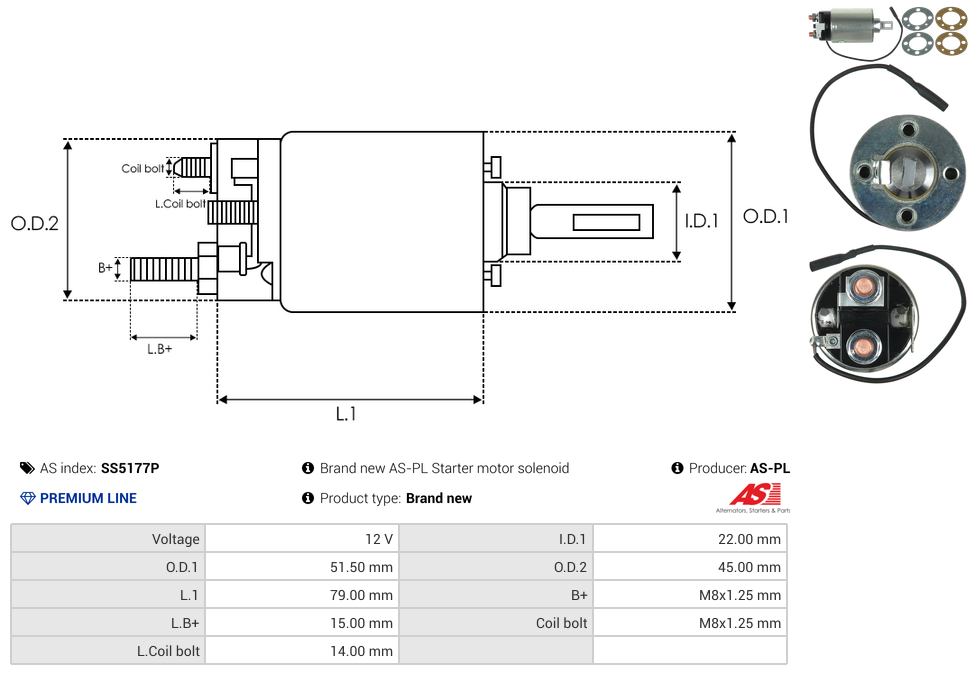

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 14 mm |
Inside Diameter (I.D.1) | 22 mm |
L.B+ | 15 mm |
Length (L.1) | 79 mm |
Outside Diameter (O.D.1) | 51.5 mm |
Outside Diameter (O.D.2) | 45 mm |
Type | Solenoid |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Reference Information
227785 AME0289 9.40113E+11 SOL5096 60-27-15143 SND12424 SB513 ZM796 SSM0796 SS5177P M371X51371Video/Publications
AME0289 940113050289 60-27-15143 M3T25885A M2T53086 SSM0796 M3T25885 M371X51371 227785 M002T53086 M003T25885 SND12424 SB513 ZM796 SS5177P M003T25885AAdd Your Number
