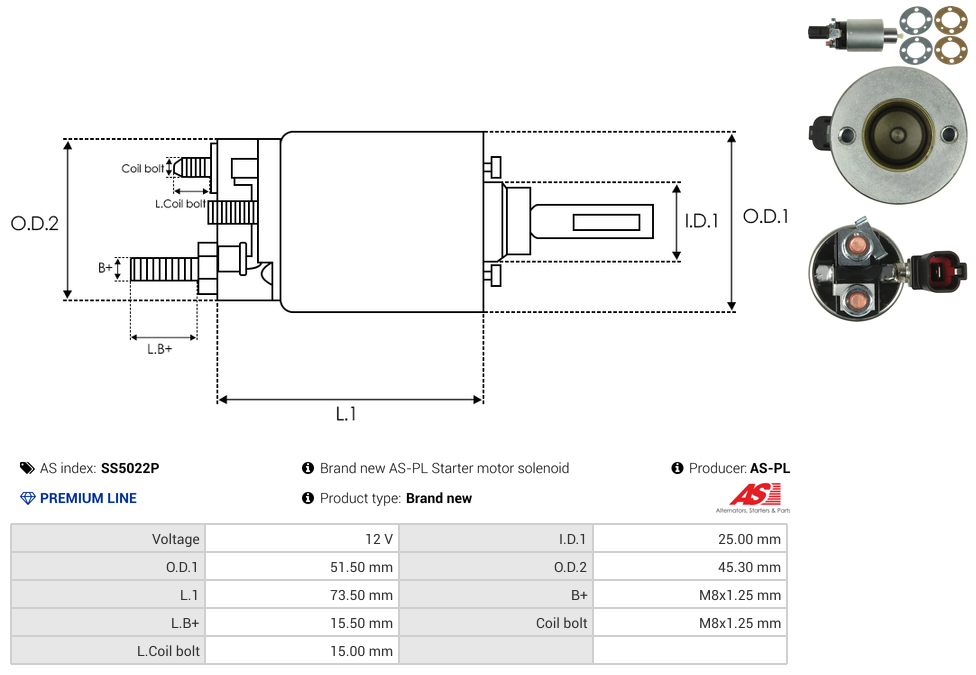

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 15 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 15.5 mm |
Length (L.1) | 73.5 mm |
Outside Diameter (O.D.1) | 51.5 mm |
Outside Diameter (O.D.2) | 45.3 mm |
Type | Solenoid |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Reference Information
SND1807 66-8371 333788 UD14481SS(ZM) 23343-0W010 SSM9275BA M371X95275 227346 6643-1215 ZM4695 UD16344SS SSM6275 M371XC4075 SSM9275Video/Publications
SND1807 23300-0W010 23300-0W011 66-8371 MOT60781 333788 M000T60181A UD14481SS(ZM) 23343-0W010 SSM9275BA M371X95275 23300-8J000 227346 MOT60181 6643-1215 ZM4695 UD16344SS SSM6275 M371XC4075 SSM9275 MOT60181AAdd Your Number
