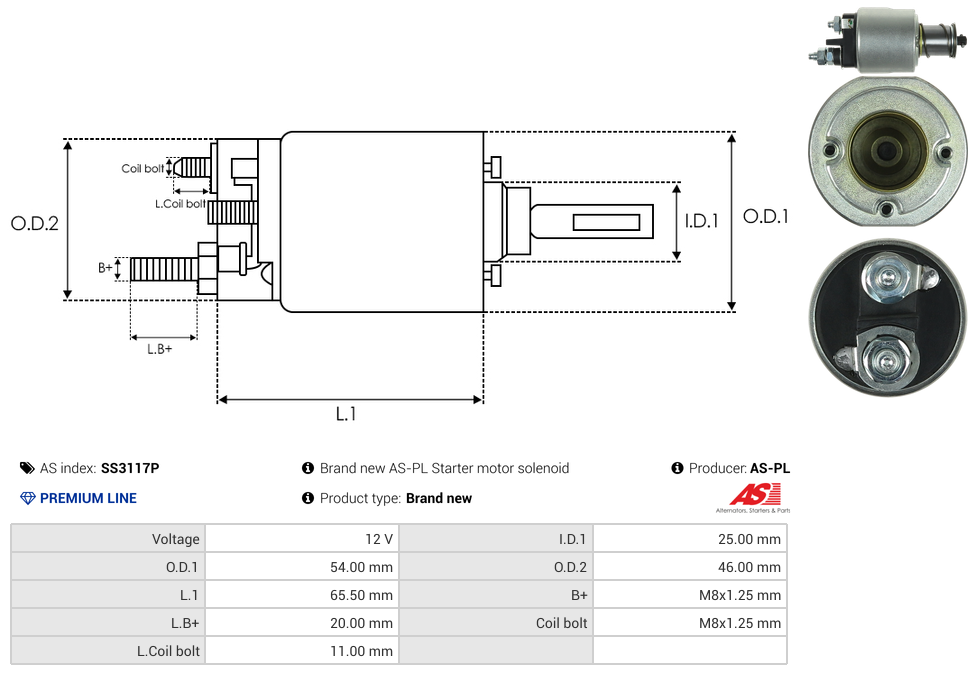

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 11 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 20 mm |
Length (L.1) | 65.5 mm |
Outside Diameter (O.D.1) | 54 mm |
Outside Diameter (O.D.2) | 46 mm |
Type | Solenoid |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
ZM8495 SS3117P 8495 594459 46311 SSV9966 9949438 66-9463 227934 81018956 239966 054.001.042.590 SND13083Video/Publications
ZM8495 SS3117P 190825 594459 SSV9966 S3188S 66-9463 227934 D7E52 239966 SND13083 438144 054.001.042 458102Add Your Number
