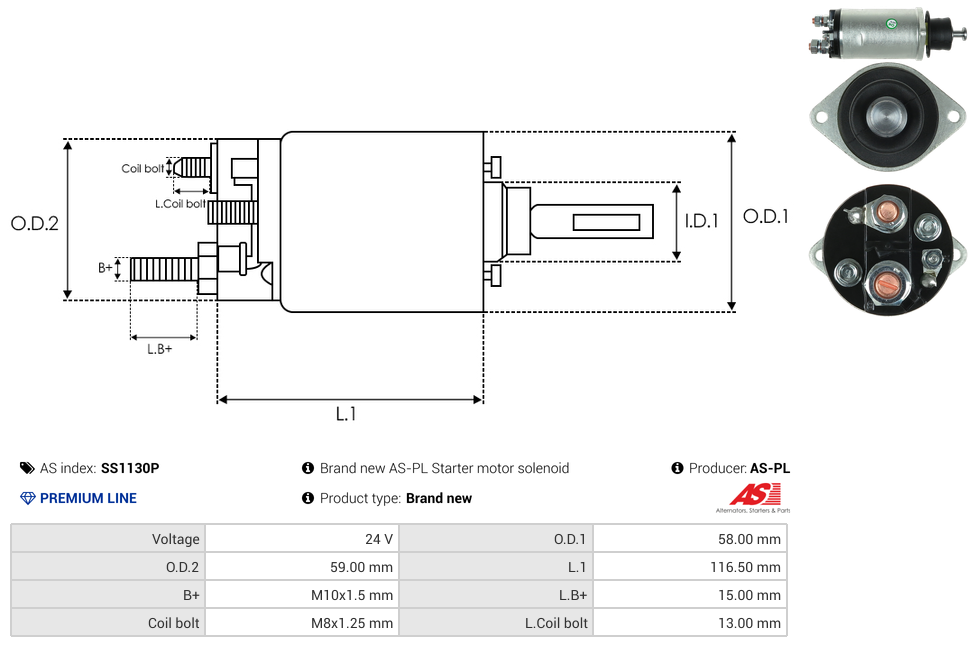

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 13 mm |
L.B+ | 15 mm |
Length (L.1) | 116.5 mm |
Outside Diameter (O.D.1) | 58 mm |
Outside Diameter (O.D.2) | 59 mm |
Type | Solenoid |
Unit Type | DELCO |
Voltage | 24 V |
Reference Information
9.40113E+11 60-01-3605 81011458 SND12090 231928 6601-2821 227799 AME0304 SOL2735 10457123 SSD1928 ZM813Video/Publications
60-01-3605 81011458 SND12090 231928 6601-2821 940113050304 227799 10479611 AME0304 10457123 SSD1928 ZM813Add Your Number
