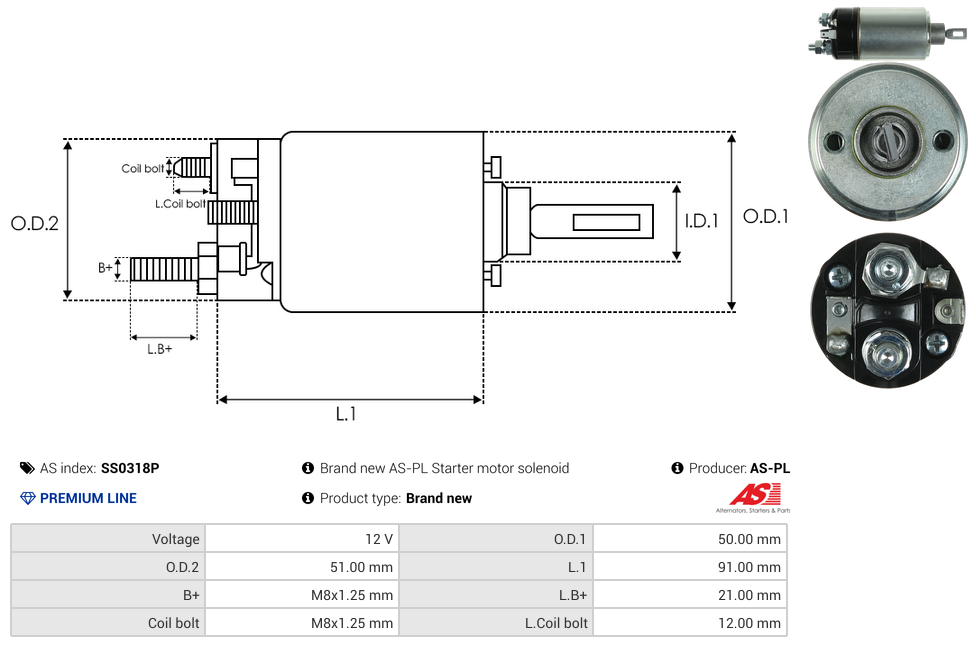

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 12 mm |
| L.B+ | 21 mm |
| Length (L.1) | 91 mm |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 51 mm |
| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
133643 AME0248 CSO10147AS 2008302002 SSO10147.0 E3678 60-15-6564 227703 ZM726 9.40113E+11 SB-160 20301741BN 81017099 331302056Video/Publications
133643 AME0248 CSO10147AS 2008302002 0001311042 0001314001 SSO10147.0 0001314004 0331302056 940113050248 1314004 1311042 E3678 60-15-6564 1314001 227703 ZM726 SB-160 20301741BN 81017099Add Your Number
