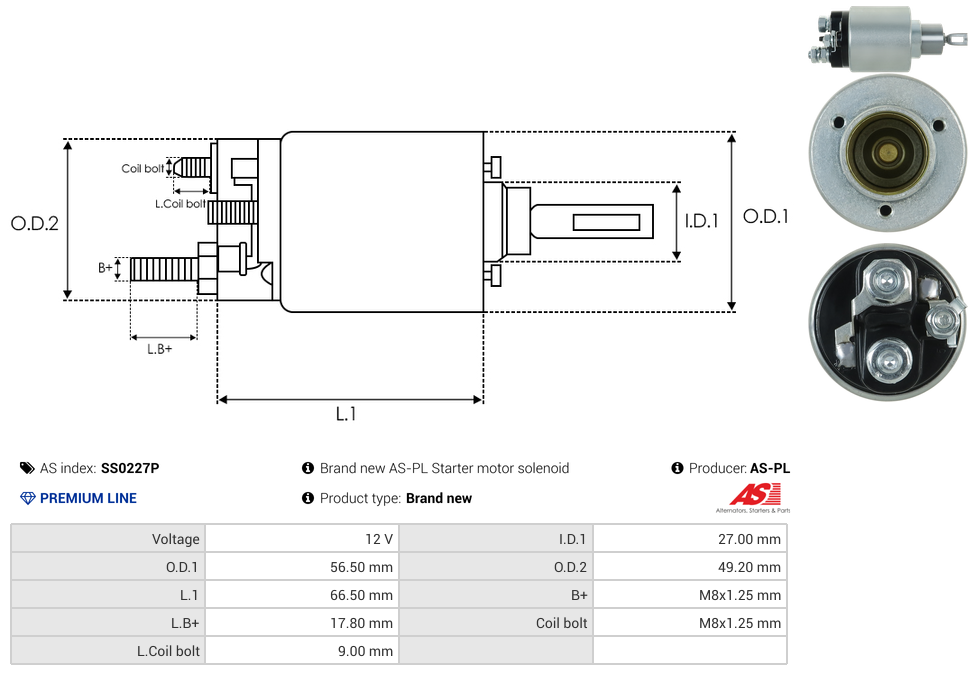

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 9 mm |
Inside Diameter (I.D.1) | 27 mm |
L.B+ | 17.8 mm |
Length (L.1) | 66.5 mm |
Outside Diameter (O.D.1) | 56.5 mm |
Outside Diameter (O.D.2) | 49.2 mm |
Type | Solenoid |
Unit Type | BOSCH |
Voltage | 12 V |
Reference Information
77363708 F00ASH0127 ZM1974 227138 SOL1010 F000SH0109 SSB1125 UD14445SS(ZM) UD16185SS F000SH0127 66-91168Video/Publications
77363708 F00ASH0127 ZM1974 227138 F000SH0109 SSB1125 UD14445SS(ZM) UD16185SS F000SH0127 F000AL0310 F000AL0309Add Your Number
