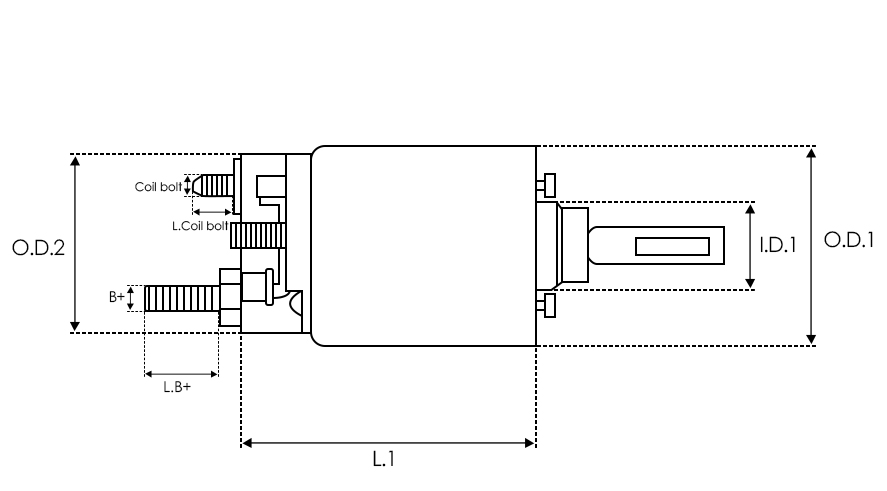

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 9.6 mm |
| Inside Diameter (I.D.1) | 26.9 mm |
| L.B+ | 19.3 mm |
| Length (L.1) | 65.9 mm |
| Outside Diameter (O.D.1) | 56.3 mm |
| Outside Diameter (O.D.2) | 49.3 mm |
| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
SOL1292Video/Publications
E3686 1108056 0001108056 UD14397SS(ZM) 1108051 0001108051 60-15-6556 227767 UD15976SS 1012315 0331303106 81012315 SSB6370 SND12595 136370 ZM779 0331303606Add Your Number
