DRA-10461772 Delco StarterCONDITION Remanufactured ELECTRIC STARTER TYPE Planetary Gear Reduction (PLGR) FAMILY 29MT 500 GEAR OD 1.386" 35.200mm HP 3.889 MOUNT HOLE 1 Unthreaded 2 3 ID 11mm NUMBER OF TEETH 9 POWER 2.900 kw ROTATION DIRECTION Clockwise SOLENOID POSITION 315 ° VOLT 12 DRA-19011403 New 1.378" 35mm DRA-61006208 31MT 1.402" 35.600mm 5.498 INSULATED TRUE LENGTH 236.300 mm 9.303" OVERCRANK PROTECTION FALSE 4.100 DRA-8200065 5.364 11.100mm 4 24 WET CLUTCH SEAL DRA-8200103 1.382" 35.100mm DRA-8200295 DRA-8200570 DRA-8200826 DRA-8200885 8200001 8200003 PartCONDITION 8200011 8200511 8200565 8200824 8200848 8200851 8200866 8200886 8200890 8200895Specifications

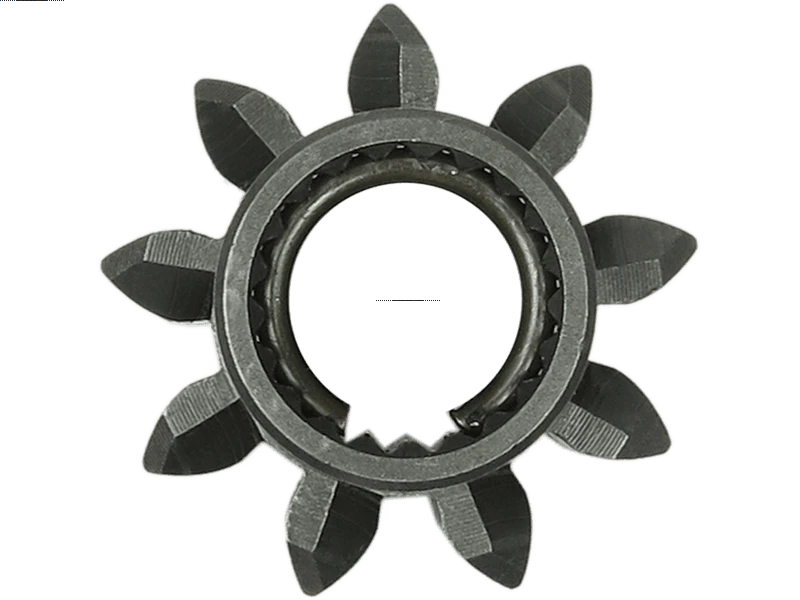

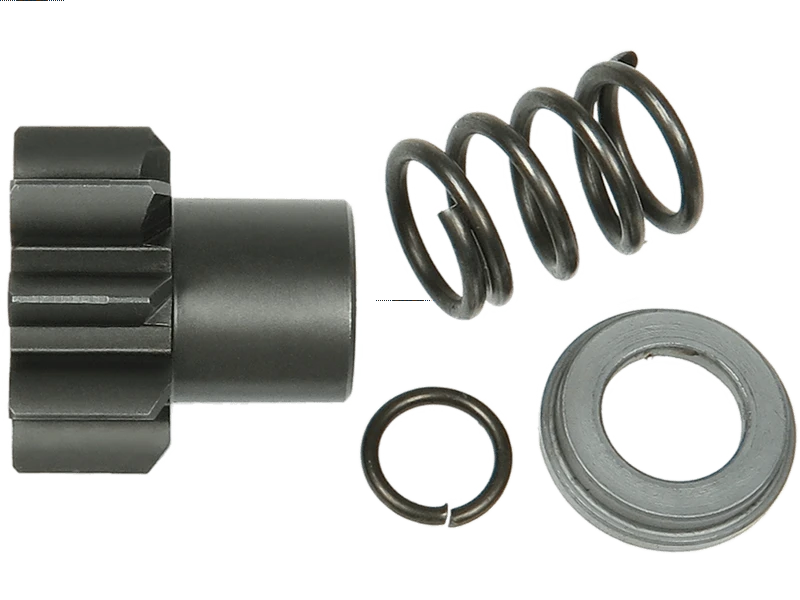

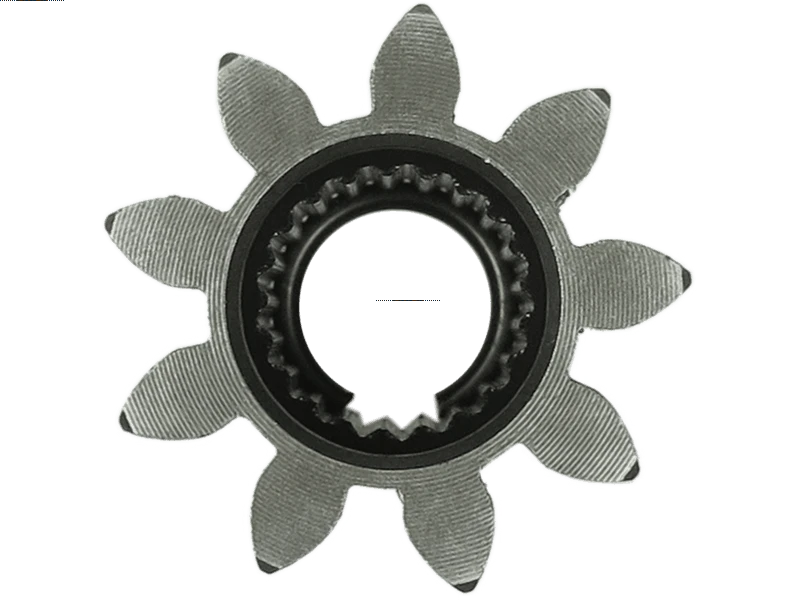

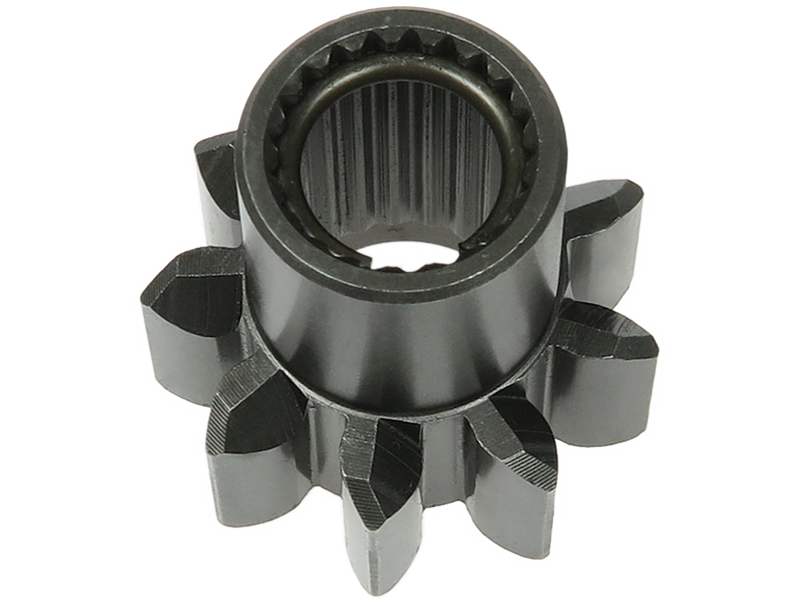

| Inside Diameter (I.D.1) | 15.5 mm |
| Length (L.1) | 34.5 mm |
| Length (L.2) | 16 mm |
| No./Splines | 21 qty |
| No./Teeth | 9 qty |
| Outside Diameter (O.D.1) | 35.5 mm |
| Rotation | CW |
| Type | Pinion |
| Unit Type | DELCO |
Reference Information
81018206 225607 UD18195SDK 1018206 10515807 GEAR2621 SPD1011 12961 54-1221 SDK1011P ZN12961 060.000.190Video/Publications
UD18195SDK 225607 10515807 ZN12961 8200511 81018206 8200003 1018206 SPD1011 12961 54-1221 SDK1011P 8200295 060.000.190Add Your Number
