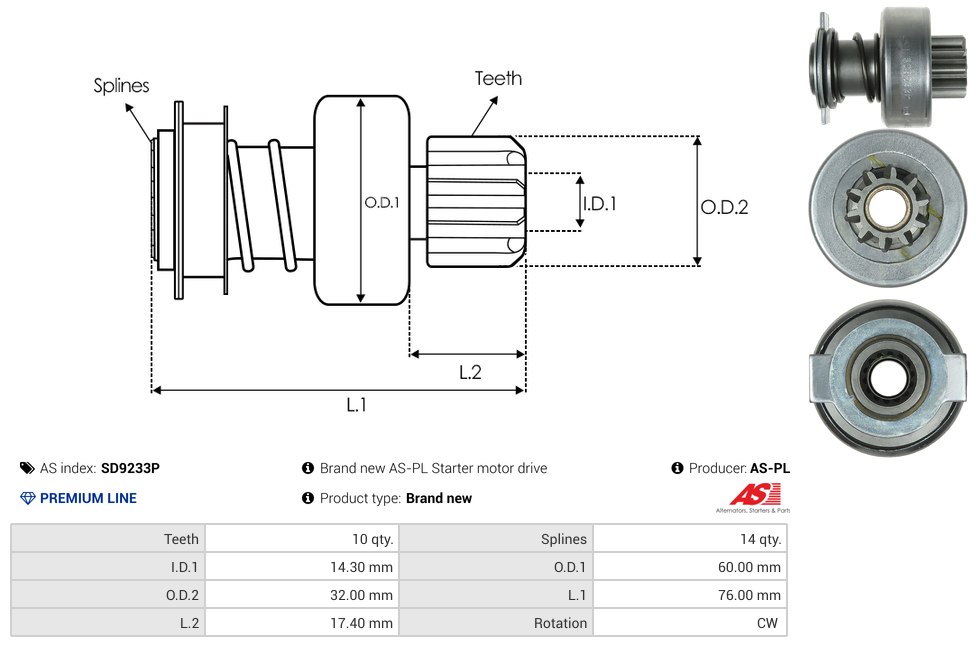

Specifications
Inside Diameter (I.D.1) | 14.3 mm |
Length (L.1) | 76 mm |
Length (L.2) | 17.4 mm |
No./Splines | 14 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 60 mm |
Outside Diameter (O.D.2) | 32 mm |
Rotation | CW |
Type | Drive |
Unit Type | ISKRA / LETRIKA |
Reference Information
1.01.1709.0 UD17951SD DRV7936 1018201 225736 16.902.653 SD9233P 01-053 333683 ZN1709 1709 SDV38323 MAHMSX149 MSX149 SDI0191 81018201Video/Publications
AZE4169 1280002830 1.01.1709.0 AZE4261 AZE4185 11132084 1280007770 333683 ZN1709 0280008580 MAHMSX149 AZE4228 UD17951SD 11131833 11132227 11131751 1018201 280008580 16.902.653 225736 SD9233P 01-053 1280007200 SDV38323 SDI0191 81018201Add Your Number
