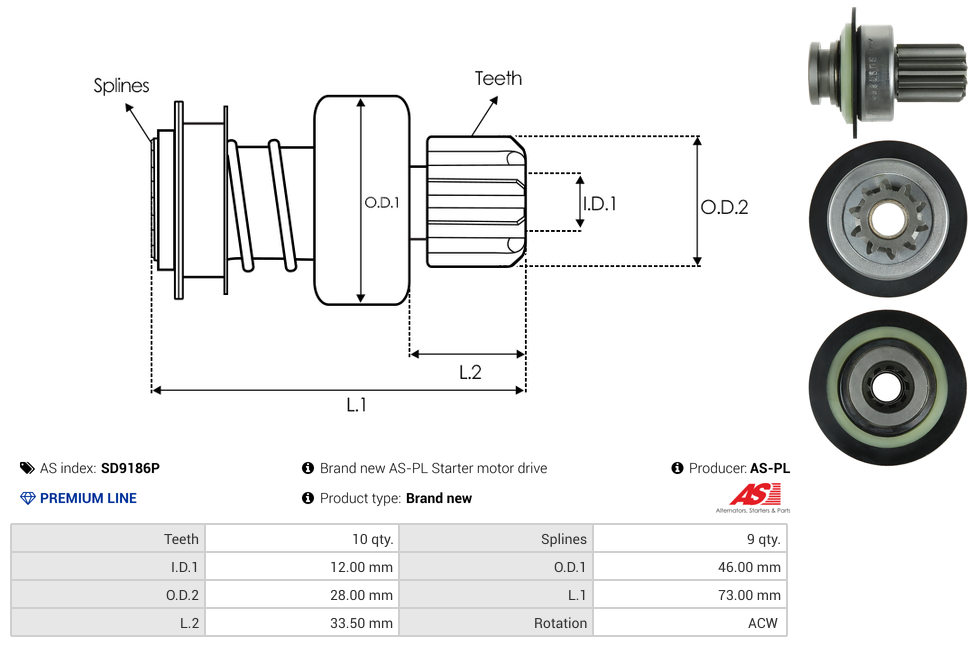

Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 73 mm |
Length (L.2) | 33.5 mm |
No./Splines | 9 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 46 mm |
Outside Diameter (O.D.2) | 28 mm |
Rotation | ACW |
Type | Drive |
Unit Type | LUCAS/MARELLI |
Reference Information
35258396 SD9186P 860 DRV4029 ZN0860 228396 225386 1.01.0860.0 18914 UD17795SD 47131Video/Publications
D7E1 D7E39 35258396 SD9186P 35258640 ZN0860 35258270 3S6511000AA 35259060 1.01.0860.0 D7E23 D7E24 D7E35 D7E37 D7E16 0860 228396 D7E52 225386 3S6511000CA 18914 UD17795SD D7E5Add Your Number
