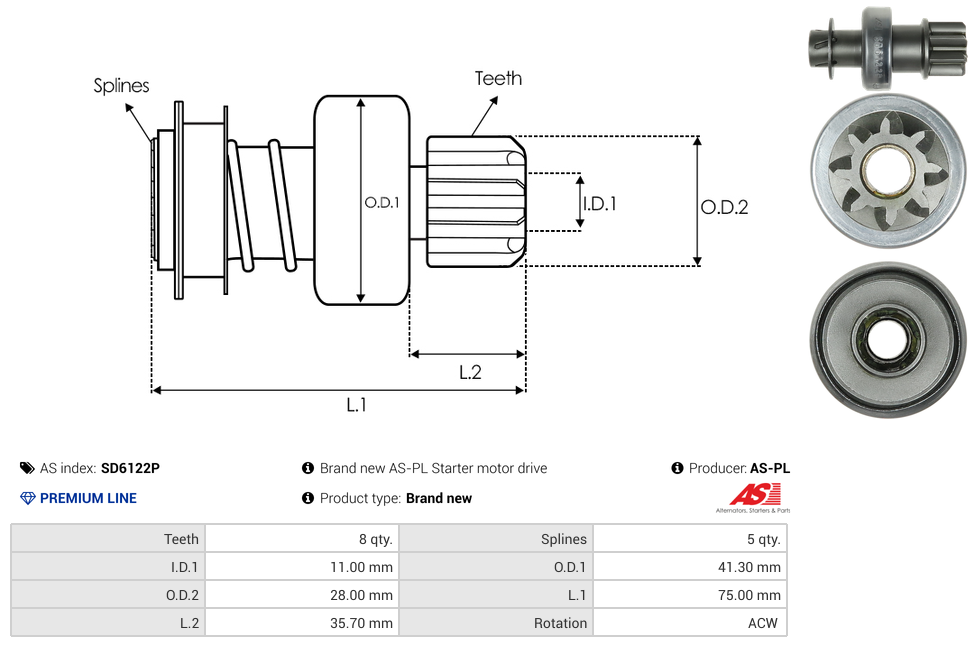

Specifications
Inside Diameter (I.D.1) | 11 mm |
Length (L.1) | 75 mm |
Length (L.2) | 35.7 mm |
No./Splines | 5 qty |
No./Teeth | 8 qty |
Outside Diameter (O.D.1) | 41.3 mm |
Outside Diameter (O.D.2) | 28 mm |
Rotation | ACW |
Type | Drive |
Unit Type | DENSO |
Reference Information
SDV38749 54-8256-1 028300-5800 225437 3132051A10 DRV6087 ZN0951 1013852 9.40113E+11 54-8256 2159 951 31320-51A10 UD17816SD 135651 81013852 54-8256-ZEN 1.01.0951.0Video/Publications
028300-5800 1280009170 1280009171 1280004030 1280004031 1280004130 1280004050 1280005480 1280004070 1280004170 1280009931 1280007610 1280007611 135651 1.01.0951.0 SDV38749 54-8256-1 1280004201 225437 3132051A10 1280004200 ZN0951 1280004160 1280004040 1013852 1280004060 0951 54-8256 2280003350 2159 31320-51A10 UD17816SD 81013852 54-8256-ZEN 940113020316Add Your Number
