SD4094P - Brand new AS-PL Starter motor drive

Brand new AS-PL Starter motor drive
Brand new AS-PL Starter motor drive
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 48.99 including GST

NZ$ 42.60 excluding GST
each
SD4094P
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

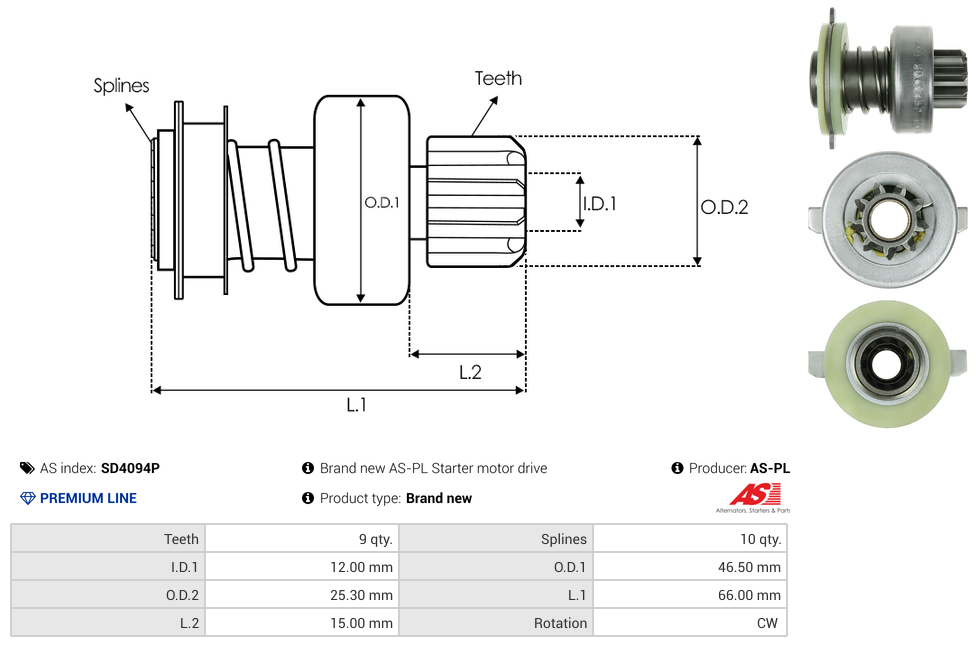

Inside Diameter (I.D.1)12 mm
Length (L.1)66 mm
Length (L.2)15 mm
No./Splines10 qty
No./Teeth9 qty
Outside Diameter (O.D.1)46.5 mm
Outside Diameter (O.D.2)25.3 mm
RotationCW
TypeDrive
Unit TypeLUCAS/MARELLI
85540481010 SDE2187 132187 9941467 00-020 9938328 1.01.0395.0 ZN0395 85540481 SD4094P 74895431 1016085 395 DRV4178 225158 74888761 3168 UD17665SD 01-41-91 SDV37028
063223237010 SDE2187 00-020 9941467 5933930 63223237 0395 SD4094P 63223332010 63223000 63223330010 225158 63223300 63223203 5996771 01-41-91 063223236010 63223237010 SDV37028 085540481010 132187 9938328 1.01.0395.0 ZN0395 63223206 63223207 74895431 1016085 63223330 063223332010 63223332 74888761 063223330010 63223236 3168 UD17665SD 63223236010
