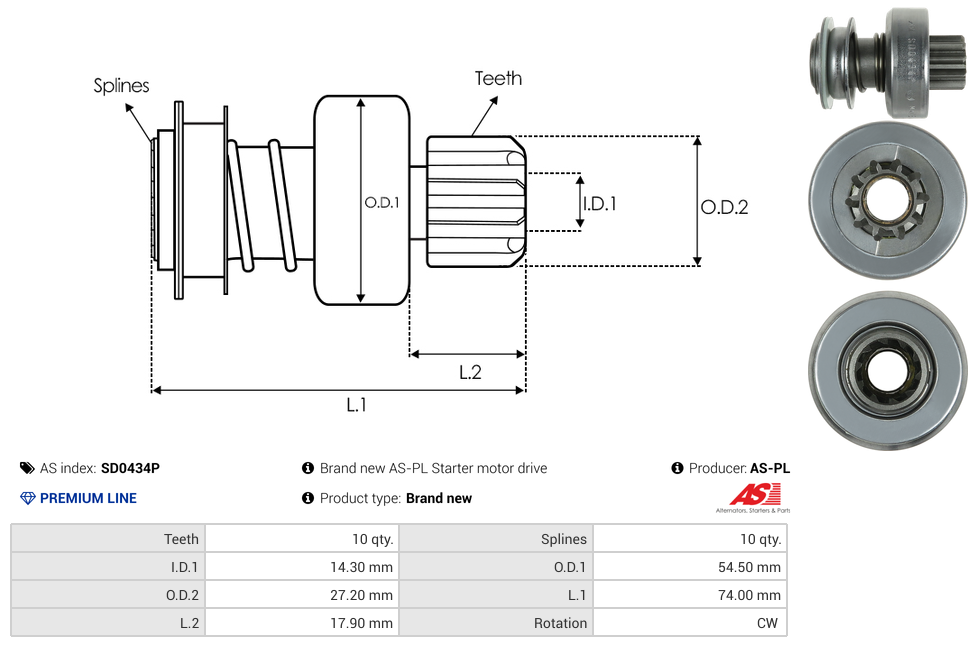

Specifications
| Inside Diameter (I.D.1) | 14.3 mm |
| Length (L.1) | 74 mm |
| Length (L.2) | 17.9 mm |
| No./Splines | 10 qty |
| No./Teeth | 10 qty |
| Outside Diameter (O.D.1) | 54.5 mm |
| Outside Diameter (O.D.2) | 27.2 mm |
| Rotation | CW |
| Type | Drive |
| Unit Type | BOSCH |
Reference Information
22401611BN ZN0460 131207 6122080 83BB11350A 9.40113E+11 CDR10116AS 12-431 1011763 81011763 54-9111 4.5062.1 SDB1207 DRV1313 SDV3794 AMB0134 UD17682SD 42-42-21 460 3194 225186 1.01.0460.0 CQ2010057 SDR10116.0 2006209431Video/Publications
22401611BN ZN0460 0001359021 131207 6122080 83BB11350A 0001362603 0001362602 CDR10116AS 0001362607 0001362606 12-431 1011763 81011763 54-9111 4.5062.1 SDB1207 0001362081 1362081 SDV3794 0460 AMB0134 UD17682SD 42-42-21 3194 225186 1362602 1362603 1.01.0460.0 940113020134 1362606 CQ2010057 1359021 1362607 SDR10116.0 2006209431Add Your Number
