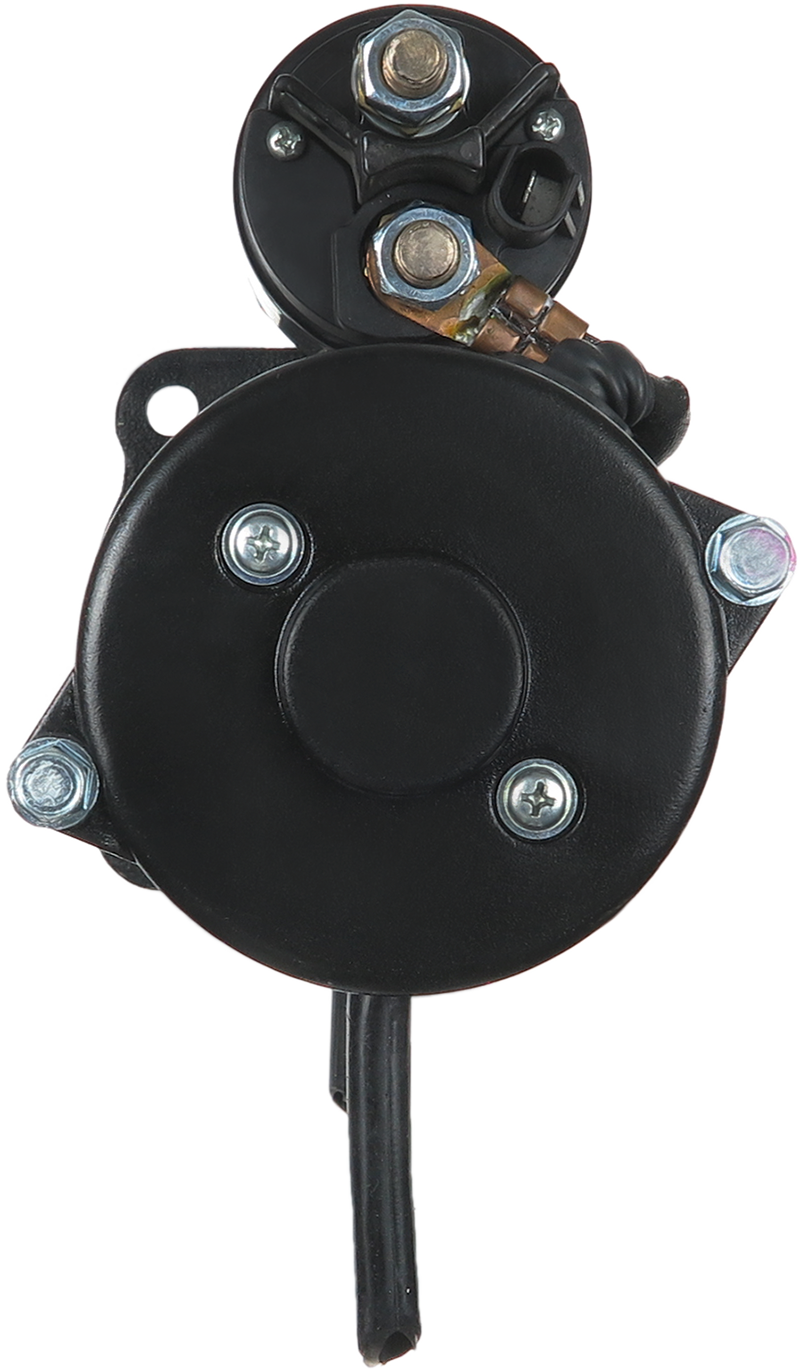

S9417S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S9417S
Price: 691.35 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

ISKRA / LETRIKA

Price:

NZ$ 691.35 including GST

NZ$ 601.18 excluding GST

UOM:

each

Product Code:

S9417S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

Kilowatt	3 kW
Length (L.1)	321 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	29 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Make	Model	Type	Year
CLAAS	696 6.8	[6068TRT]	01.2003-12.2005
CLAAS	696RZ 6.8	[6068TRT]	01.2003-12.2005
MASSEY FERGUSON	9790	[1006-60]
MASSEY FERGUSON	MF 5465 6.0
MASSEY FERGUSON	MF 8140	[620DE]
MASSEY FERGUSON	MF 8150	[620DS]
MASSEY FERGUSON	MF 8160	[634DS]
MASSEY FERGUSON	MF 8210
MASSEY FERGUSON	MF 8220
MASSEY FERGUSON	MF 8250 7.4	[634DWE]
VALTRA	BT150 6.6	[620DS]	08.2009-
VALTRA	BT170 6.6	[620DS]	08.2009-
VALTRA	BT190 6.6	[620DSA]	08.2009-
VALTRA	BT210	[634DSA]	08.2009-

6030161.1 702284 113654 6030161.5 CST21107GS 3127539 S12MA0197A2 AZF4102 CGB-93404 T400268 11.131.410 T410874 RNL2873K404 CST30161GS 700.503.103.090 MS289 STRL051 428000-1380 19083001 18941N-IK 220814 AZF4569 254194 2873K621 3784889M2 3784889M1 700.016.103.090 AZF4321 71437150 IS1071 4227442M91 MAV321610 11.131.070 20404161BN 63280040 AZE4199 11445780 700.503.103.510 788129 11.131.508 28738071 25-3377 11.131.228 DRS0066 781742 UD18578S PRSL051 6911913 3823621M91 STR7999 3823621M95 7020620 2873K404 3680133M91 18941R AZF4264 11.131.973 LES0272 3575202 MSN8040 2253148 LRS2206 3586847 5269854 AZE4172 11.132.035 2873K632 700.503.103.050 11.131.606 11.131.964 63280040010 AZF4132 114387 3667040M91 88213778 AZE4219 EAA-121074 700.503.103.265 DRS0066N MS111 3667040J9A 26.0006 116307 254194L MAV231060 254194M 225-3148 DRS0279 11.131.397 AZE4207 STR52055 CST30161AS 700.016.103.311 6021107.1 AEY2598 700.503.103.311 AZJ3369 AZE4151 CST30161IS MAV231070 6030161 20419701OE 11.132.175 11.131.946 18941N 860714 AZF4111 3784890M1 11.131.780 LRS02206

11.131.228 11.132.175 182-30103 19083034 20419601OE 254194 254194L 254194M 3667040M91 3680133M91 3784890M1 3823621M92 3823621M93 3823621M94 3823621M95 6021106.1 700.016.103 72735739 AZF4321 AZF4569 CST21106GS DRS0279 DS1389 IS1071 MAHMS111 MAV231060 PRSL051 PRSL051L PRSL051LU STRL051LU UD18578S WRM21106OE
