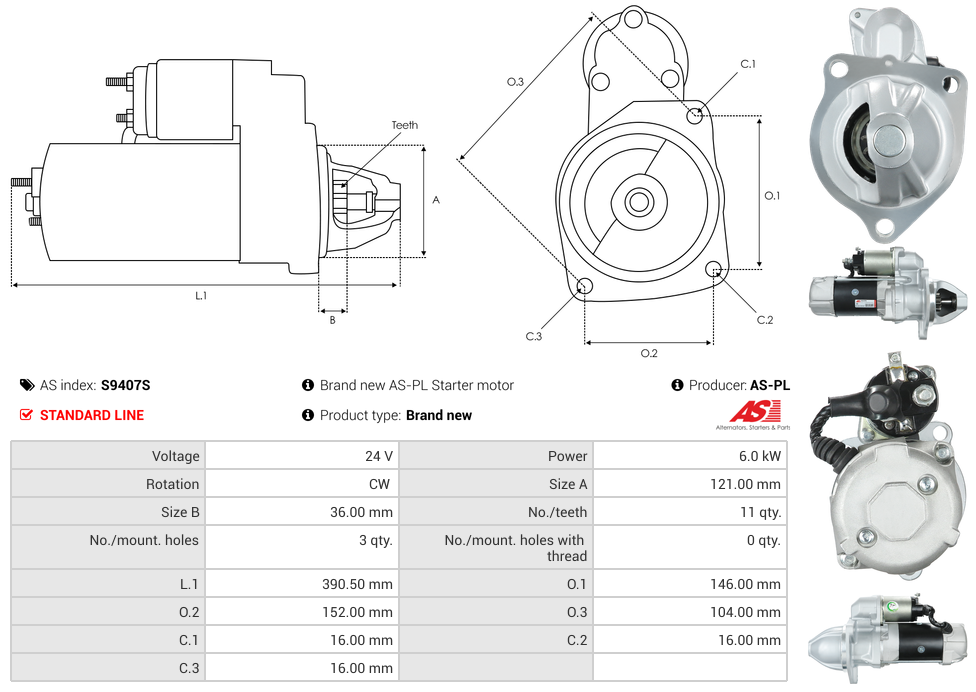

Specifications
Kilowatt | 6 kW |
Length (L.1) | 390.5 mm |
Mount Hole Center - Center (O.1) | 146 mm |
Mount Hole Center - Center (O.2) | 152 mm |
Mount Hole Center - Center (O.3) | 104 mm |
Mount Hole Diameter (C.1) | 16 mm |
Mount Hole Diameter (C.2) | 16 mm |
Mount Hole Diameter (C.3) | 16 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 36 mm |
Rotation | CW |
Spigot Diameter (A) | 121 mm |
Unit Type | SAWAFUJI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
NISSAN | Various Models |
Reference Information
233000-97077 UD17071S 0350-602-0232Video/Publications
0350-602-0232 233000-97077 UD17071SAdd Your Number
