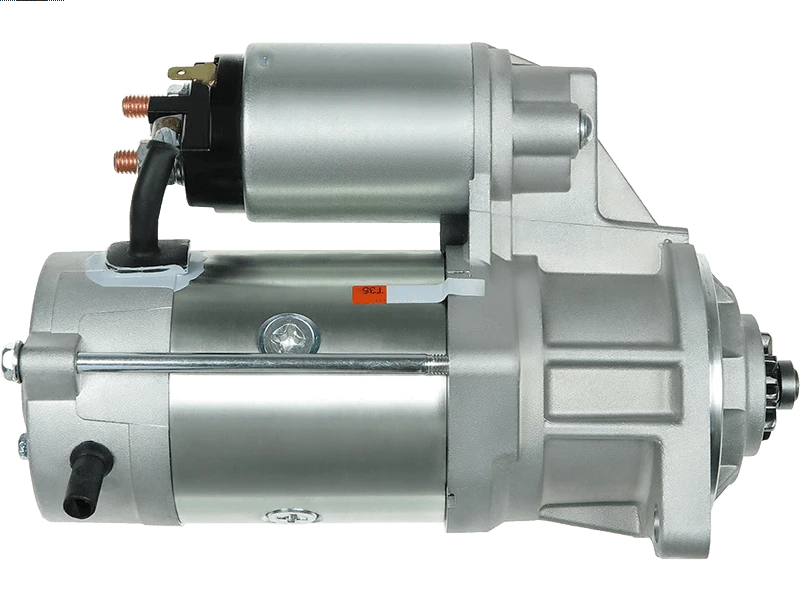

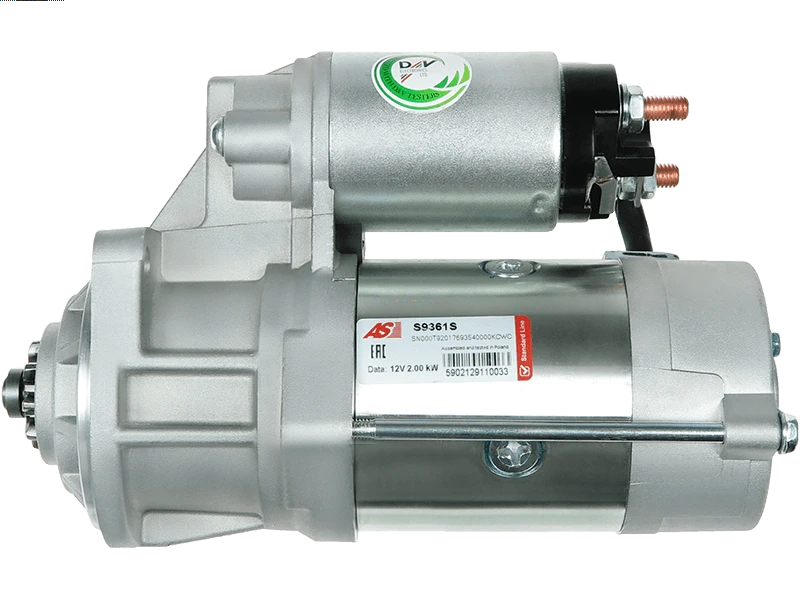

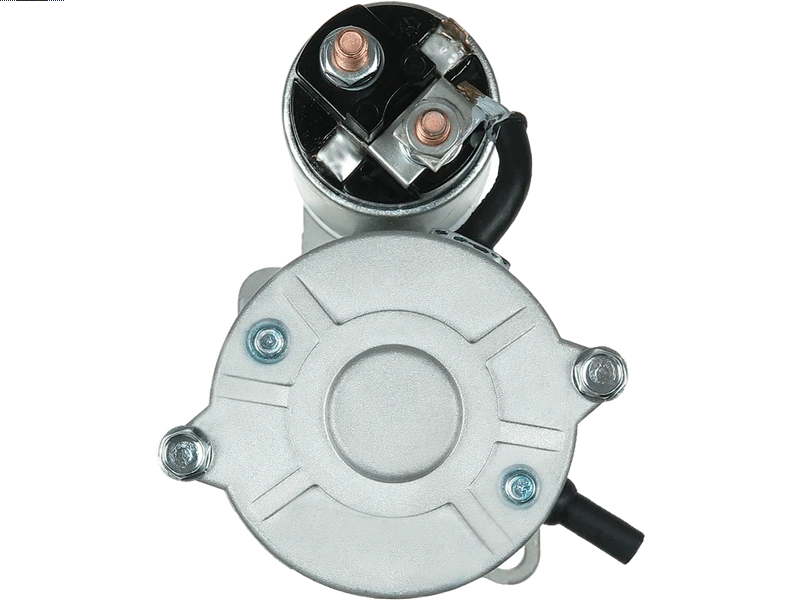

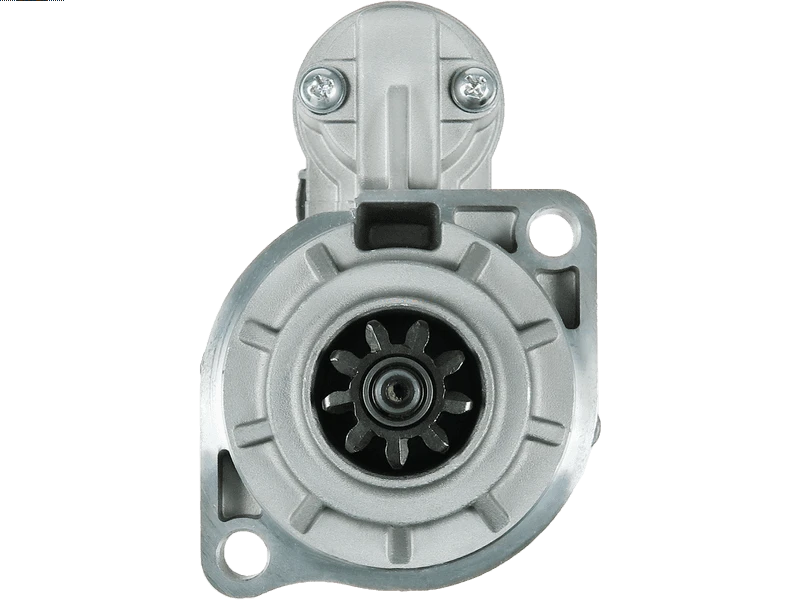

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
KUBOTA
Price:
NZ$ 801.55 including GST
NZ$ 697.00 excluding GST
or four payments of $200.39
with
Learn More
each
S6096
S9361S
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
E6530-63012Associated Numbers
ARROWHEAD 410-58107
ARROWHEAD 410-58107
CUB CADET DD-E6530-63012
KIOTI E6530-6301, E6530-63012
CUB CADET DD-E6530-63012
KIOTI E6530-6301, E6530-63012
DD-E6530-63012
Dixie Electric Ltd S-80581
J&N 410-58107
PIC 140-6090
Romaine Electric 30554N
Standard Starter Drive 400716
Voltux V1-400716
30554 Lester
40006954 Case
40334005 Case
540521092 PSH
MT40006954 Case
MT40334005 Case
Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | KUBOTA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KIOTI | DK35 |
Reference Information
| 140-10511 | ROBERT'S |
| 17123-63012 | KUBOTA |
| 20460211OE | REAL |
| 255690D | KUHNER |
| 40006954 | CASE |
| 40334005 | CASE |
| 6046112.1 | SANDO |
| CST46112GS | CASCO |
| DD-E6530-63012 | KIOTI |
| E6530-6301 | KIOTI |
| E6530-63011 | KUBOTA |
| E6530-63012 | DAEDONG |
| MAV481120 | SIOM |
| MT40006954 | CASE |
| MT40334005 | CASE |
| UD13988S | AS-PL |
Video/Publications
