S9036PR - Remanufactured AS-PL Starter motor

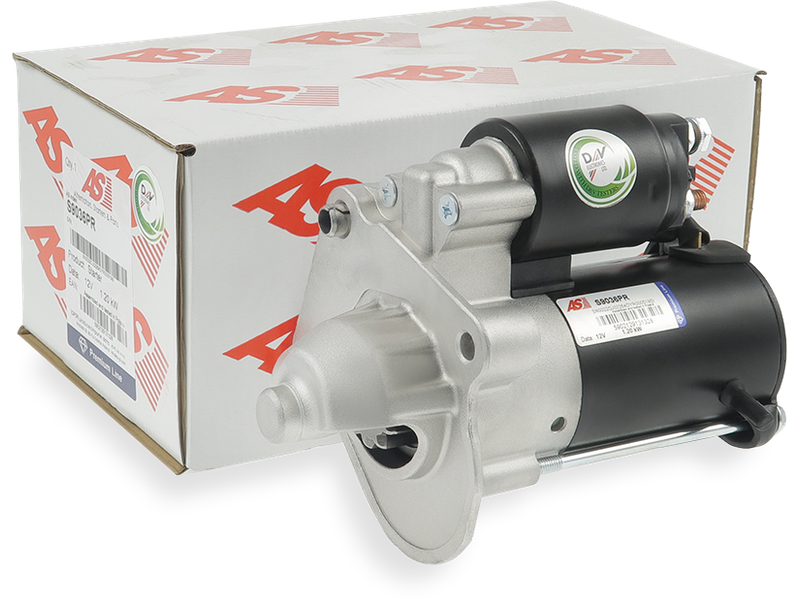

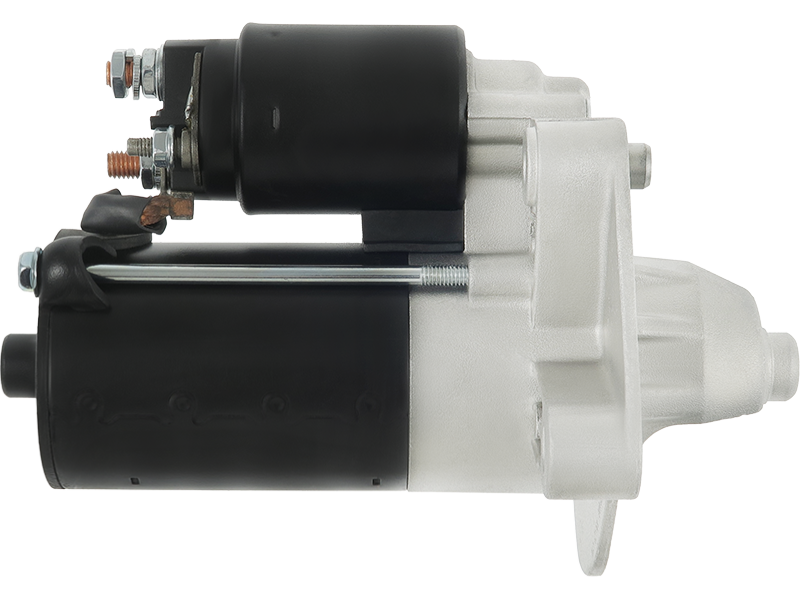

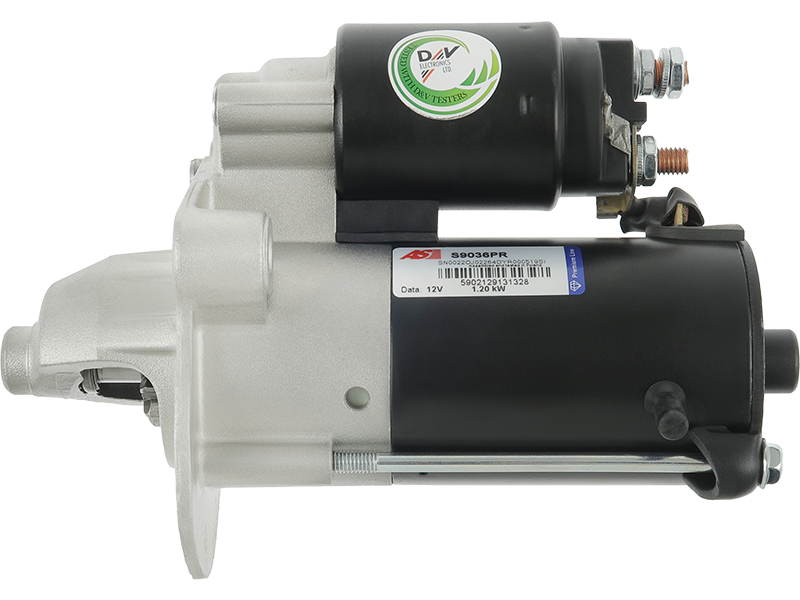

Remanufactured AS-PL Starter motor
Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
FORD
Price:
NZ$ 226.52 including GST

NZ$ 196.97 excluding GST


or four payments of $56.63 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S9036PR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

Kilowatt1.20 kW
Length (L.1)207.50 mm
Mount Hole Center - Center (O.1)83 mm
Mount Hole Center - Center (O.2)116 mm
Mount Hole Center - Center (O.3)75 mm
Mount Hole Diameter (C.1)M8x1.25 mm
Mount Hole Diameter (C.2)9 mm
Mount Hole Diameter (C.3)M10x1.5 mm
No./Mount holes3 qty
No./Mount holes with thread2 qty
No./Teeth11 qty
OEM ProductNo
Pinion at Rest (B)15 mm
Product LinePremium Line
Product TypeRemanufactured
RotationCW
Unit TypeFORD
Voltage12 V
Make Model Type Year
FORD C-Max 1.6 TDCi 02.2007-
FORD Focus 1.6 TDCi [G8DA] 11.2004-
FORD Focus 1.6 TDCi [G8DB] 11.2004-
FORD Focus 1.6 TDCi [HHDA] 05.2005-
FORD Focus 1.6 TDCi C-Max [G8DA] 10.2003-03.2007
FORD Focus 1.6 TDCi C-Max [G8DB] 10.2003-03.2007
FORD Focus 1.6 TDCi C-Max [HHDA] 06.2005-03.2007
FORD Focus 1.6 TDCi C-Max [HHDB] 06.2005-03.2007
MAZDA 3 1.6 TD [Y601] 06.2004-
MAZDA 3 1.6 Turbo Di [Y601] 06.2004-
VOLVO C30 1.6 Diesel [D4164T] 10.2006-
VOLVO S40 1.6 Diesel [D4164T] 01.2005-
VOLVO V50 1.6 Diesel [D4164T] 01.2005-
063280029010MAGNETI MARELLI
0986022131BOSCH
101341KUHNER
101341VKUHNER
101341VAKUHNER
113908CARGO
116062CARGO
1229427FORD
1233234FORD
1254222FORD
1368970FORD
1469712FORD
1707507FORD
1715776FORD
1762872FORD
1986S01017BOSCH
20-100-01029VISTEON
20450901BNREAL
20450901OEREAL
2073366FORD
2109635FORD
220371ERA
220371AERA
25-3390ELSTOCK
2S0124RIDEX
2S0124XRIDEX
30644972VOLVO
30667060VOLVO
30667739VOLVO
30795406VOLVO
3123CEVAM
32508NWAI / TRANSPO
36003219VOLVO
36013613VOLVO
3M5T-11000-CBFORD
3M5T-11000-CCFORD
3M5T-11000-CDFORD
3M5T-11000-CEFORD
3M5T-11000-CFFORD
3M5T-11000-CGFORD
42022131HERTH+BUSS
446522VALEO
458650VALEO
5014010MEAT & DORIA
590.539.113.020PSH
590.539.113.028PSH
590.539.113.231PSH
590.539.113.235PSH
6014109.0SANDO
6014109.1SANDO
63280029MAGNETI MARELLI
8603690VOLVO
88213302POWERMAX
8EA011610-271HELLA
8EA738258-091HELLA
943213411010MAGNETI MARELLI
AEY2219AUTOELECTRO
AI-80035AINDE
ASM1046APEC
BG9T-11000-AAFORD
BG9T11000AAFORD
BS51-11000-AAFORD
BS5111000AAFORD
CS1341HC PARTS
CST14109ASCASCO
CST14109GSCASCO
DRS3968DELCO
DRS3968NDELCO
EZ0046ELTA AUTOMOTIVE
F032113908CARGO
F032116062CARGO
F042S0H069UNIPOINT
FL1WAFORD
GS001029-AGPARTS
GS001029VI-RGPARTS
LRS002219LUCAS
LRS02219LUCAS
MAV161090SIOM
MAV161090ASIOM
MSN8029MAGNETI MARELLI
MSRC1341MAGNETI MARELLI
NPANSM1046NAPA
RE3M5T-11000-CFFORD
RE3M5T11000CFFORD
RM3M5T-11000-CFFORD
RM3M5T11000CFFORD
S12VS0193SIDAT
S12VS0193A2SIDAT
S134.444PSH
S144.531PSH
SG0388GHIBAUDI
STF1341KRAUF
STM1060ROLLCO
STR61812WOODAUTO
STR8914ELECTROLOG
STX200194STARDAX
STX200194RSTARDAX
STX200488STARDAX
STX200488RSTARDAX
STX201084STARDAX
Y601-18-400AMAZDA
Y601-18-400BMAZDA
Y601-18-400CMAZDA
S9036PR
