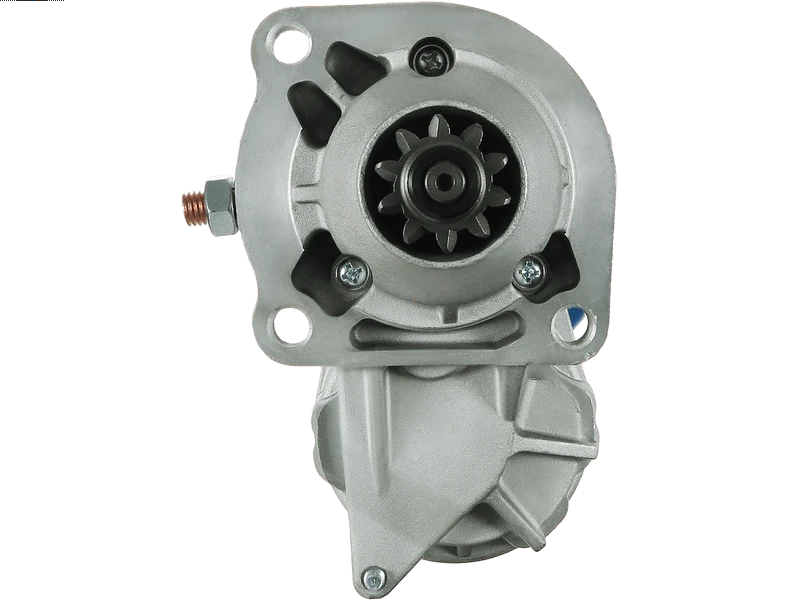

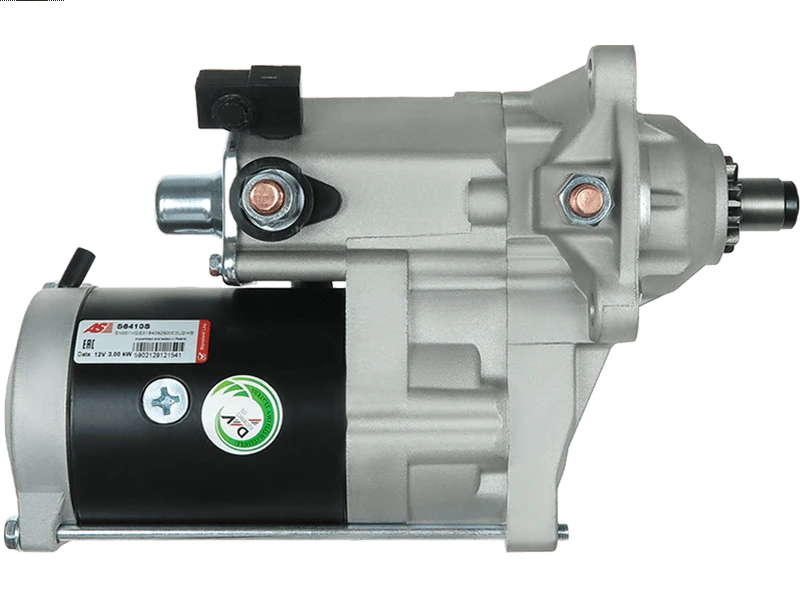

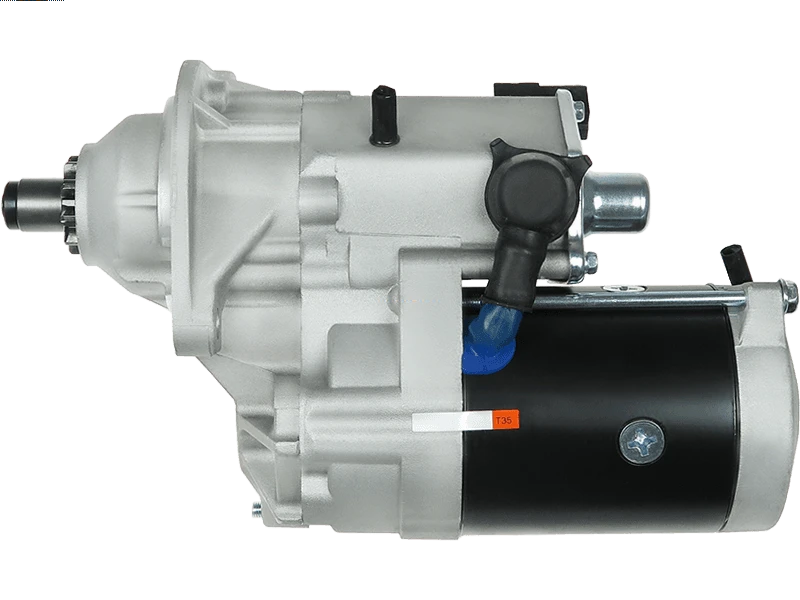

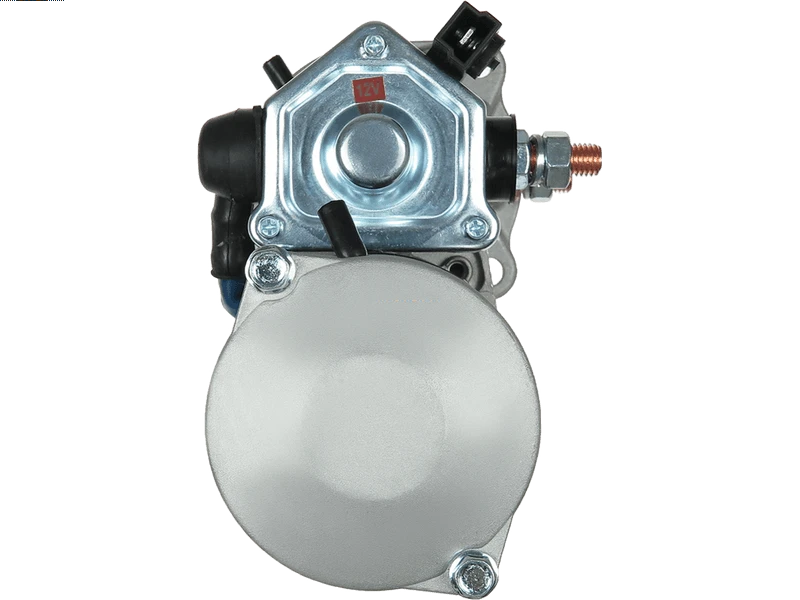

Specifications
Kilowatt | 3 kW |
Length (L.1) | 313 mm |
Mount Hole Center - Center (O.1) | 125 mm |
Mount Hole Center - Center (O.2) | 89 mm |
Mount Hole Center - Center (O.3) | 89 mm |
Mount Hole Diameter (C.1) | 12 mm |
Mount Hole Diameter (C.2) | 12 mm |
Mount Hole Diameter (C.3) | 12 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 48 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CATERPILLAR | 446B 4.4 | [3114] | 01.1993-12.2004 |
CATERPILLAR | 446D 4.4 | [3114] | 01.2004-12.2008 |
CATERPILLAR | 933 5.0 | [3046] | 01.1996-12.2002 |
CATERPILLAR | 933C 5.0 | [3046] | 01.1994-12.2002 |
CATERPILLAR | 933C Hystat 5.0 | [3046] | 01.2000-12.2003 |
CATERPILLAR | 933C LGP 5.0 | [3046] | 01.1997-12.2003 |
CATERPILLAR | 933C LGP Hystat 5.0 | [3046] | 01.2000-12.2003 |
CATERPILLAR | 933 LGP 5.0 | [3046] | 01.1994-12.1997 |
CATERPILLAR | 939 5.0 | [3046] | 01.1993-12.2000 |
CATERPILLAR | 939C 5.0 | [3046] | 01.1997-12.2003 |
CATERPILLAR | 939C 5.0 | [3046T] | 01.1997-12.2008 |
CATERPILLAR | 939C Hystat 5.0 | [3046T] | 01.1999-12.2010 |
CATERPILLAR | D4G 5.0 | [3046] | 01.2002-12.2008 |
CATERPILLAR | D4G LGP 5.0 | [3046] | 01.2002-12.2007 |
CATERPILLAR | D4G XL 5.0 | [3046] | 01.2002-12.2007 |
CATERPILLAR | D5C 5.0 | [3046] | 01.1994-12.2000 |
CATERPILLAR | D5C Hystat 5.0 | [3046] | 01.1994-12.2000 |
CATERPILLAR | D5C LGP 5.0 | [3046] | 01.1993-12.2001 |
CATERPILLAR | D5C XL 5.0 | [3046] | 01.1997-12.2002 |
CATERPILLAR | D5C XL 5.0 | [3046] | 01.1997-12.2006 |
CATERPILLAR | D5G 5.0 | [3046T] | 01.2001-12.2008 |
CATERPILLAR | D5G LGP 5.0 | [3046T] | 01.2001-12.2008 |
CATERPILLAR | D5G XL 5.0 | [3046T] | 01.2001-12.2005 |
Reference Information
228000-3700 20432902BN CST40209AS 228000-3701 113237 190-30137 1053133 9X1270 EAA-161302 246-30140 STN3237 6667825 DSN2012 91-29-5466N S-8939 640.545.103 128000-5721 128000-5720 128000-5723 9W2946 128000-5722 3E5382 17615N 91-29-5466 STN9237 6040209 UD17028S STR6056 128080-5723 CGB-25720 MAV422090 DRS0284 DS1394Video/Publications
1053133 113237 128000-5720 128000-5721 128000-5722 128000-5723 128080-5723 17615N 190-30137 20432902BN 228000-3700 228000-3701 246-30140 3E5382 6040209.0 640.545.103 6667825 91-29-5466 91-29-5466N 9W2946 9X1270 CGB-25720 CST40209AS DRS0284 DS1394 DSN2012 EAA-161302 MAV422090 S-8939 STN3237 STN9237 UD17028SAdd Your Number
