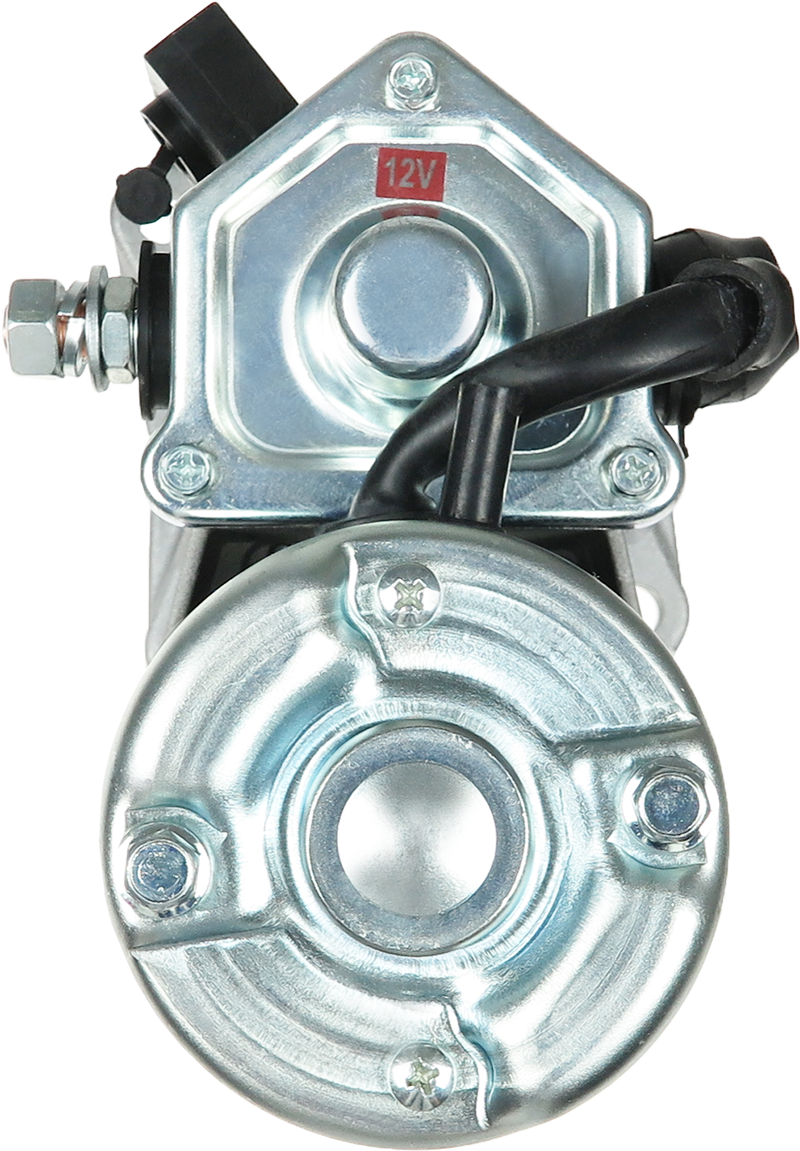

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 481.91 including GST
NZ$ 419.05 excluding GST
or four payments of $120.48
with
Learn More
each
S6405S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
228000-7500Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 297 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 216 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 226 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 232 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 236 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 242 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 246 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 248 3.0 | [3034] | |
| CATERPILLAR | 252 3.0 | [3034] | 01.1999-12.2004 |
| CATERPILLAR | 906 3.0 | [3034] | 01.1998-12.2008 |
| CATERPILLAR | Engine | [704-30] | 01.1998-12.2006 |
| CATERPILLAR | TC560B 4.4 | 01.2004-12.2006 | |
| CATERPILLAR | TH220B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH330B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH340B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH350B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH360B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH407 4.4 | [C4.4] | 01.2008-12.2008 |
| CATERPILLAR | TH414 4.4 | [C4.4] | 01.2009-12.2017 |
| CATERPILLAR | TH417 4.4 | [C4.4] | 01.2009-12.2017 |
| CATERPILLAR | TH460B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH514 4.4 | [C4.4] | 01.2009-12.2017 |
| CATERPILLAR | TH560B 4.4 | [3054] | 01.2003-12.2007 |
| CATERPILLAR | TH560B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TH580B 4.4 | [3054E] | 01.2003-12.2009 |
| CATERPILLAR | TL1255 4.4 | [C4.4TA] | 01.2008-12.2012 |
Reference Information
| 0R9702 | CATERPILLAR |
| 115323 | CARGO |
| 1449955 | CATERPILLAR |
| 144-9955 | CATERPILLAR |
| 18992N | WAI / TRANSPO |
| 18992R | WAI / TRANSPO |
| 190-25119 | ROBERT'S |
| 20432463BN | REAL |
| 228000-7500 | DENSO |
| 228080-7500 | DENSO |
| 246-25163 | DIXIE |
| 254491 | KUHNER |
| 336462 | LOGISTIK |
| 5040578 | MEAT & DORIA |
| 6040364.0 | SANDO |
| 640.521.103 | PSH |
| 8826 | CEVAM |
| 91-29-5490 | WILSON |
| CST40364AS | CASCO |
| DENDSN2055 | WOODAUTO |
| DRS0335 | DELCO |
| DS1445 | DELCO |
| DSN2055 | DENSO |
| F032115323 | CARGO |
| S12DE0378A2 | SIDAT |
| S134.715 | PSH |
| S144.366 | PSH |
| S163.803 | PSH |
| S6405S | AS-PL |
| S-8651 | DIXIE |
| STN7501 | KRAUF |
| STR70096 | WOODAUTO |
| UD17020S | AS-PL |
Video/Publications
