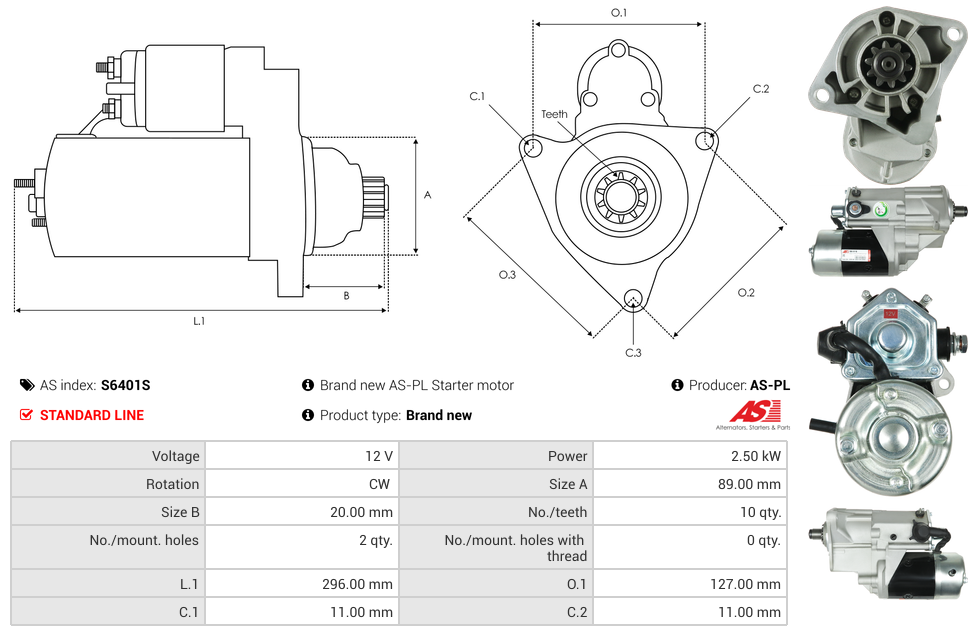

Specifications
| Kilowatt | 2.5 kW |
| Length (L.1) | 296 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 20 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLARK | Engine | 01.1986-12.2002 | |
| CONTINENTAL | Engine | 01.1985-12.2002 | |
| TENNANT | Engine | 01.1985-12.1991 |
Reference Information
128000-1781 128000-1780 BOM S-8277 UNIT 128000-3032 128000-1782 255088 TMD27M506 TMD27M517 190-25140 TMD27M504 STR70205 909947 91-29-5145 128000-3030 246-25110 190-824 128000-3031 TMD27M00504 TMD27M00506 TMD27M00517 UD17010SVideo/Publications
128000-1780 128000-1781 128000-1782 128000-3030 128000-3031 128000-3032 190-25140 246-25110 255088 909947 91-29-5145 S-8277 STR70205 TMD27M00504 TMD27M00506 TMD27M00517 TMD27M504 TMD27M506 TMD27M517 UD17010S UNIT BOM 190-824Add Your Number
