S6400S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S6400S
Price: 595.24 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DENSO

Price:

NZ$ 595.24 including GST

NZ$ 517.60 excluding GST

UOM:

each

Product Code:

S6400S

Quantity In Stock:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

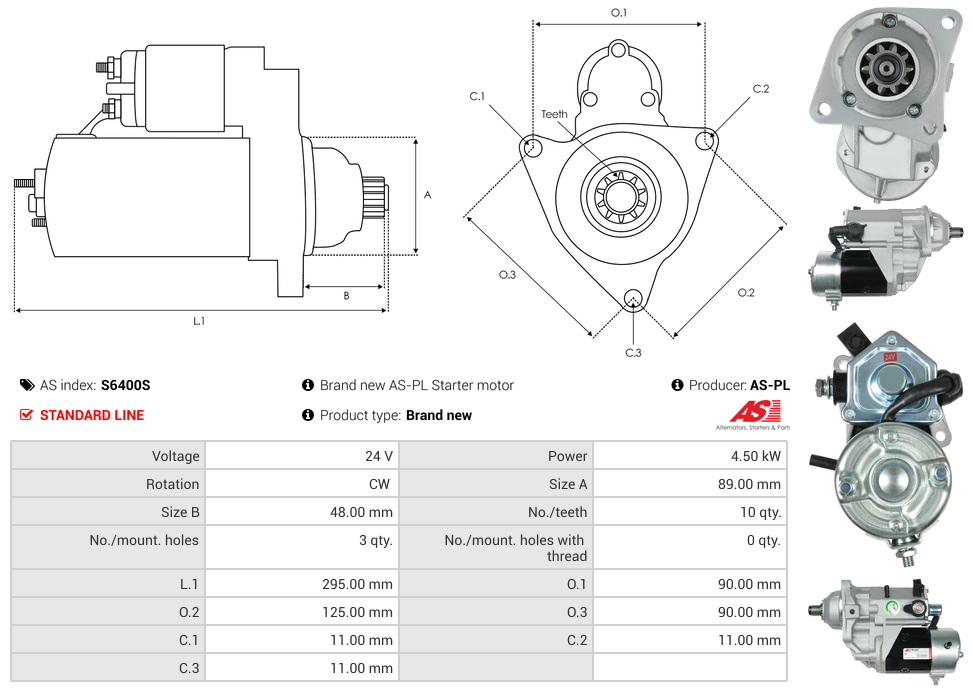

Kilowatt	4.5 kW
Length (L.1)	295 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	125 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	48 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DENSO
Voltage	24 V

Make	Model	Type	Year
CUMMINS	Engine 5.9

254831D 3935200 DENDSN966 DSN966 6040643.1 CST40643GS 11040923 228000-8852 STN8850 228000-8851 228000-8850 336304 3957595 STR70311 19168N 641.512.103 88214608 UD17008S 20432346OE 228080-8852 246-25255 S-80449

11040923 19168N 20432346OE 228000-8850 228000-8851 228000-8852 228080-8852 246-25255 254831D 3935200 3957595 6040643.1 641.512.103 88214608 CST40643GS DENDSN966 S-80449 STN8850 STR70311 UD17008S
