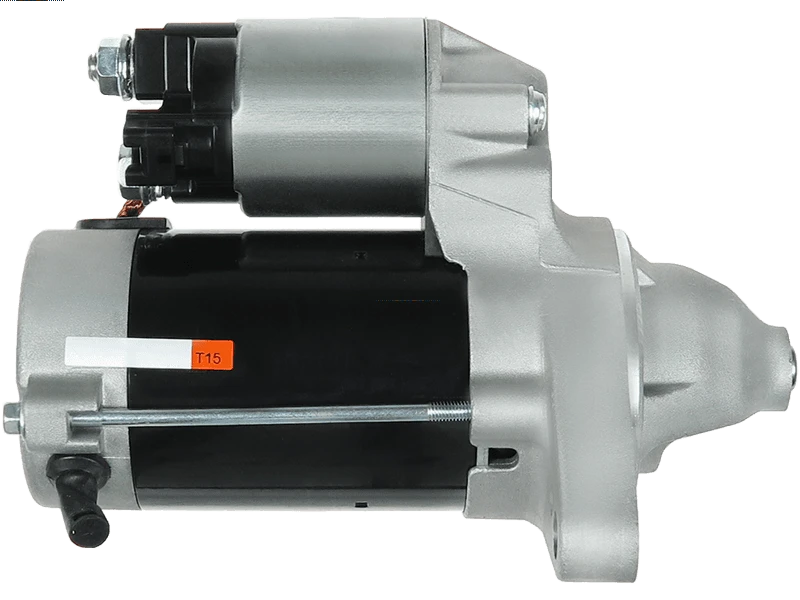

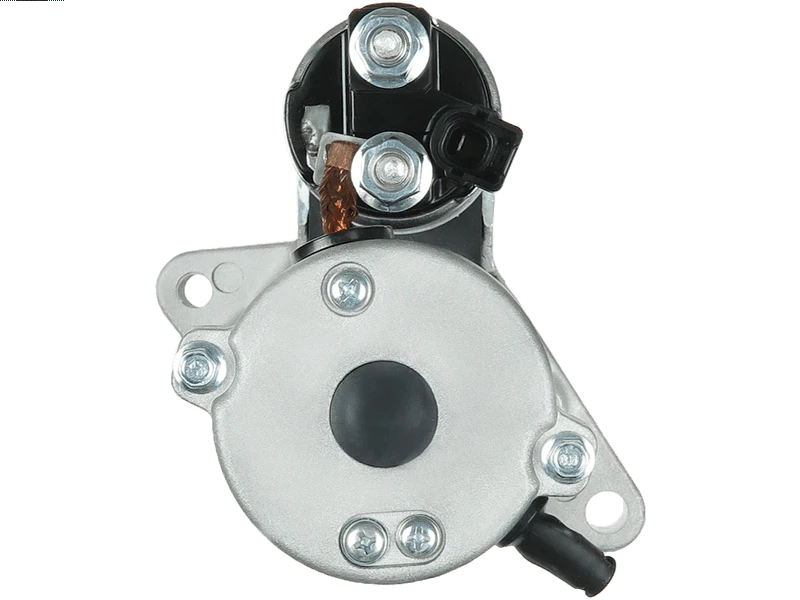

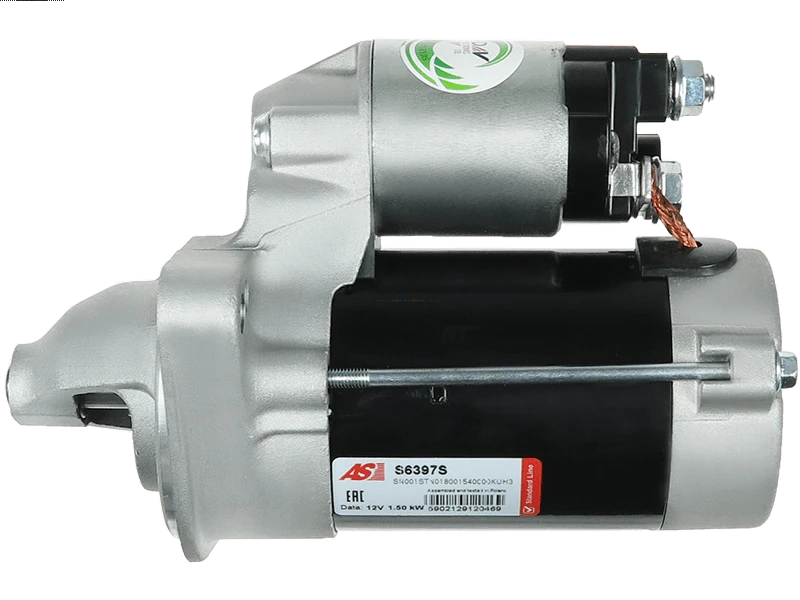

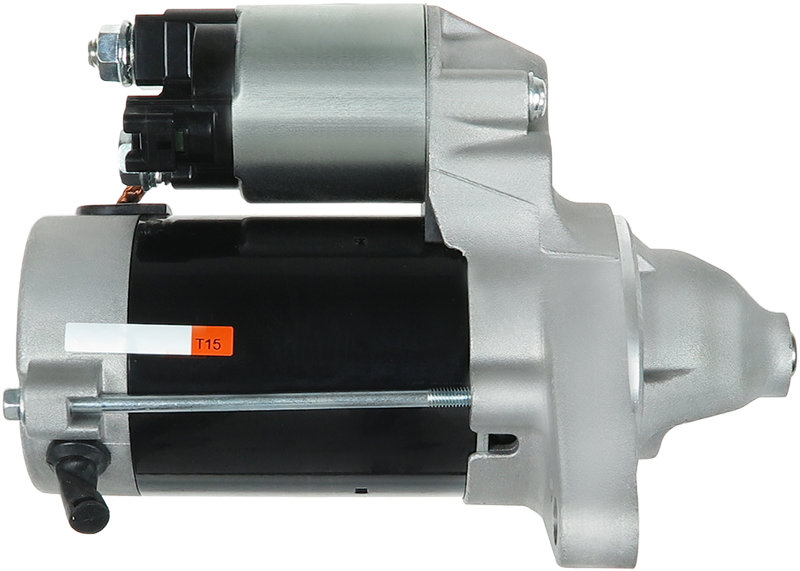

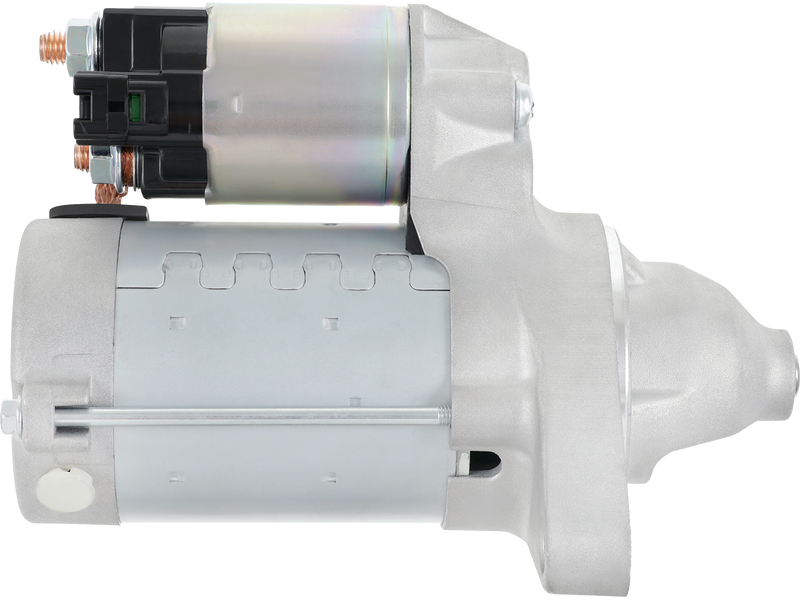

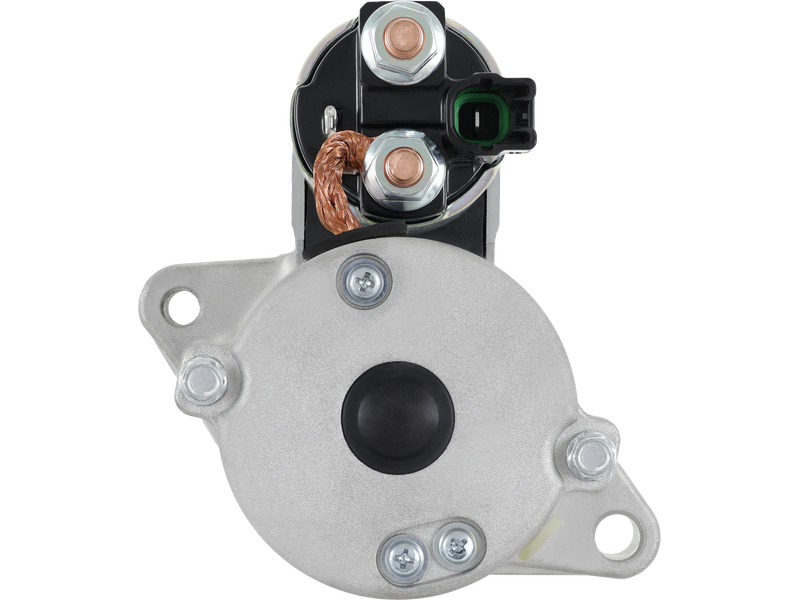

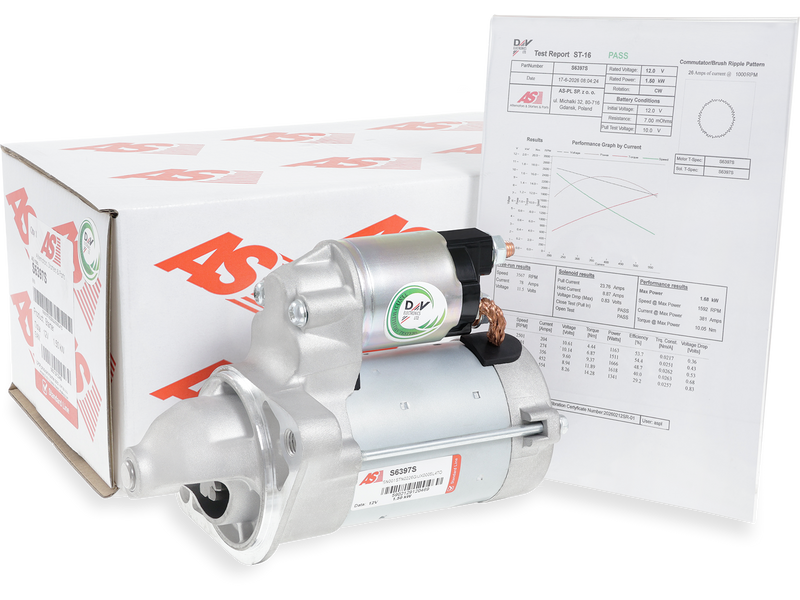

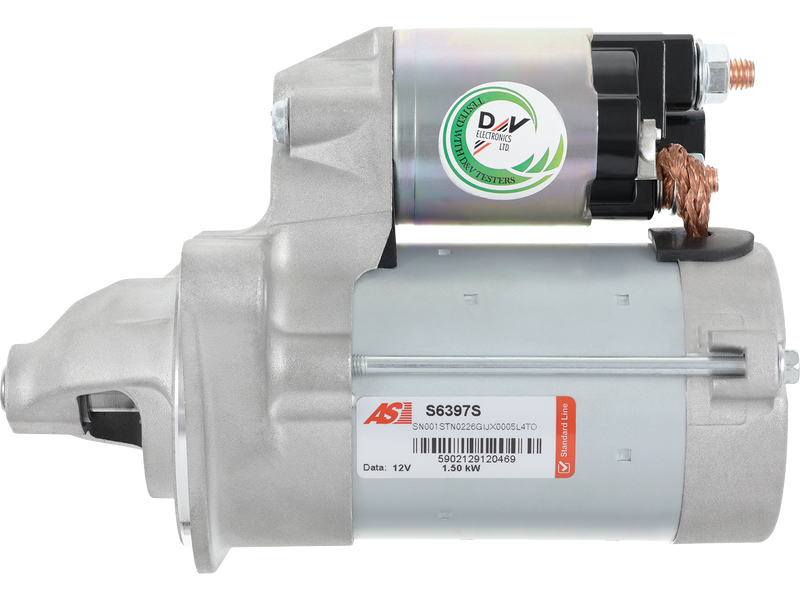

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 339.43 including GST
NZ$ 295.16 excluding GST
or four payments of $84.86
with
Learn More
each
S6397S
No stock in NZ currently
No stock in NZ currently
Information

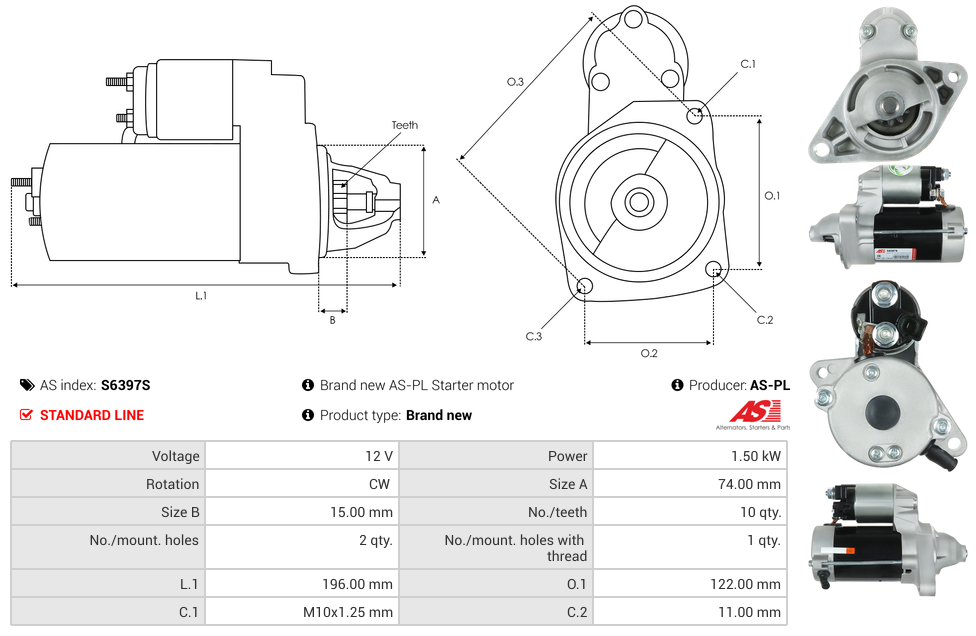

428000-4940Specifications
| Kilowatt | 1.50 kW |
| Length (L.1) | 196 mm |
| Mount Hole Center - Center (O.1) | 122 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PONTIAC | Vibe 1.8 | 01.2009-12.2010 | |
| SCION | XD 1.8 | 01.2008-12.2014 | |
| TOYOTA | Corolla 1.8 | 01.2009-12.2016 | |
| TOYOTA | Matrix 1.8 | 01.2009-12.2014 |
Reference Information
| 19048N | WAI / TRANSPO |
| 428000-4940 | DENSO |
| 91-29-5752 | WILSON |
| S-80408 | DIXIE |
| UD20539S | AS-PL |
Video/Publications
