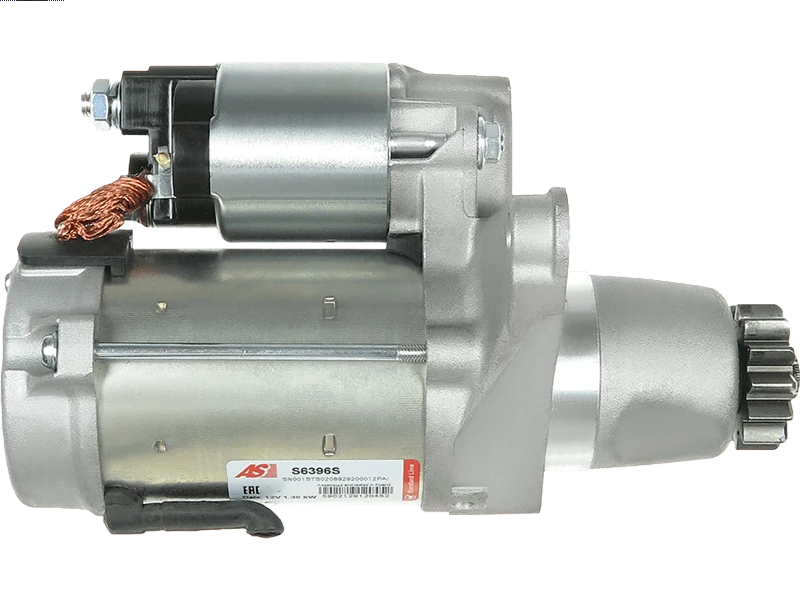

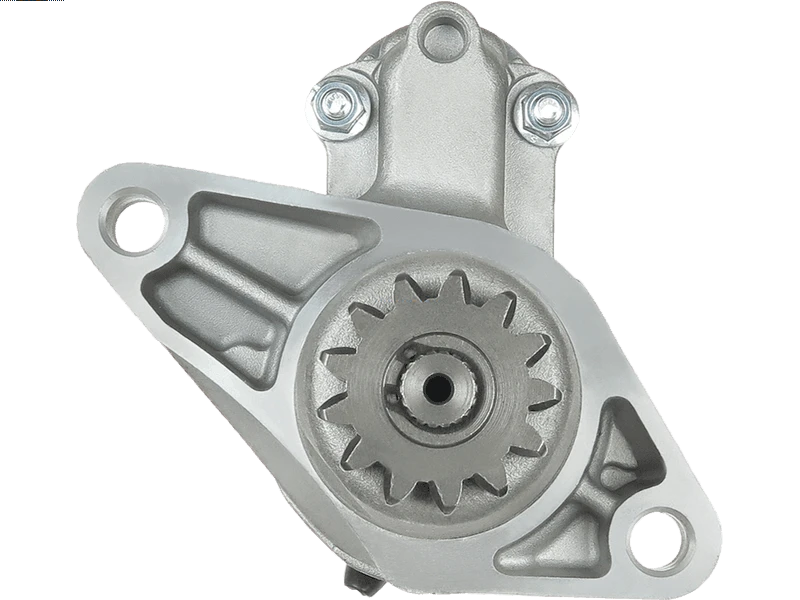

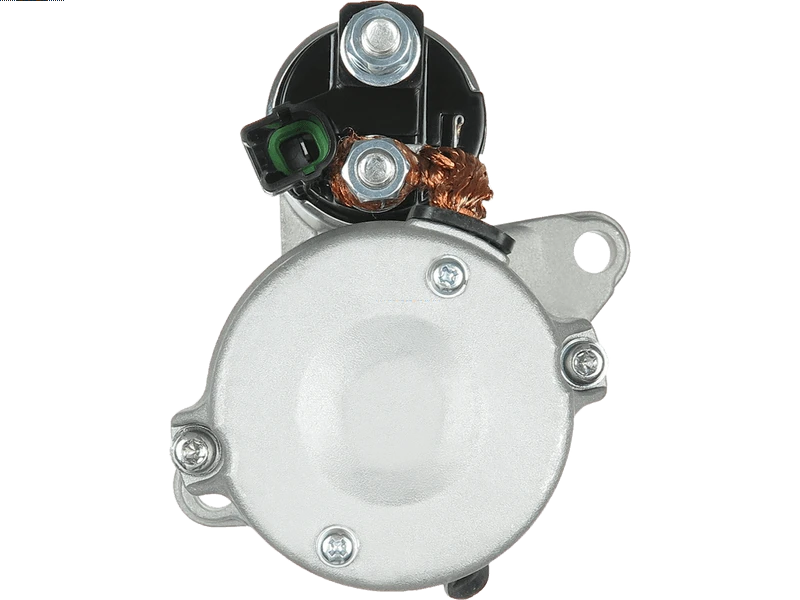

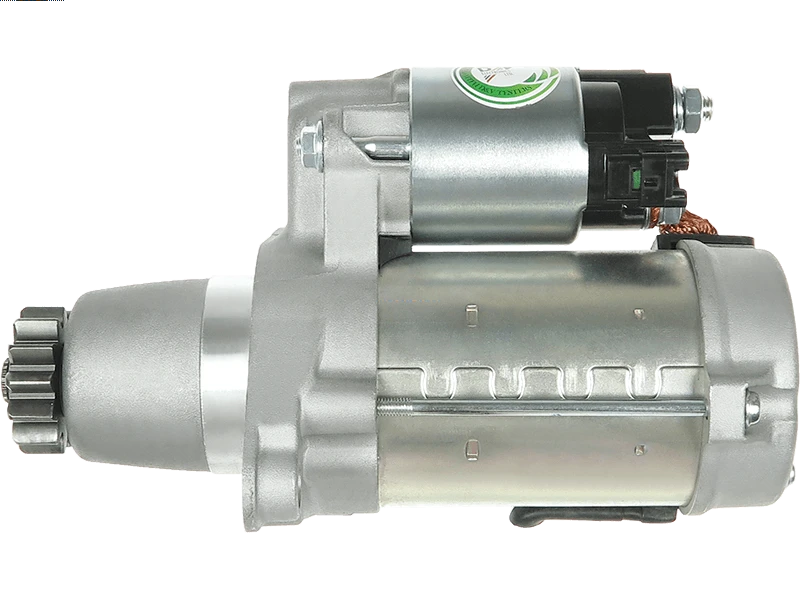

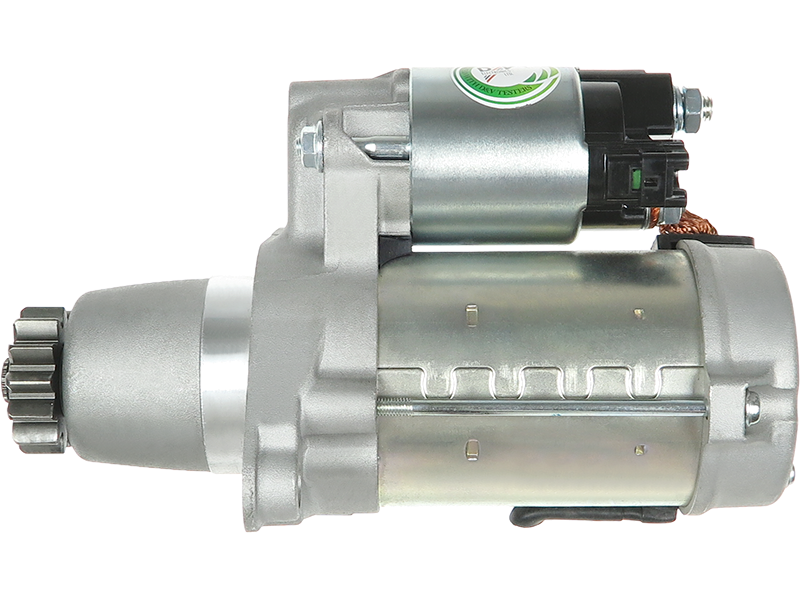

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 359.04 including GST
NZ$ 312.21 excluding GST
or four payments of $89.76
with
Learn More
UOM:
each
Product Code:
S6396S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
428000-4310Specifications
| Kilowatt | 1.30 kW |
| Length (L.1) | 214 mm |
| Mount Hole Center - Center (O.1) | 122 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 66 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 55 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | ES (_V4_) 3.5 (GSV40_, GSV40) | 2GR-FE | 05.2006-06.2012 |
| LEXUS | ES (_V6_) 250 (AVV60_, ASV60_) | 2AR-FE | 06.2012-06.2018 |
| LEXUS | ES (_V6_) 350 (GSV60_) | 2GR-FE | 06.2012-06.2018 |
| LEXUS | ES (_V6_) 350 (GSV60_, GSV60R) | 2GR-FE | 06.2012-06.2018 |
| LEXUS | NX (_Z1_) 200t (AGZ10_, AGZ10R) | 8AR-FTS | 07.2014- |
| LEXUS | NX (_Z1_) 200t AWD (AGZ15_, AGZ15R) | 8AR-FTS | 07.2014- |
| LEXUS | NX (_Z1_) 300 (AGZ10_, AGZ10R) | 8AR-FTS | 09.2017- |
| LEXUS | NX (_Z1_) 300 AWD (AGZ15_, AGZ15R) | 8AR-FTS | 09.2017- |
| LEXUS | RX (_L1_) 350 AWD (GGL15_, GGL15R) | 2GR-FE | 12.2008-08.2015 |
| LEXUS | RX (_L1_) 350 AWD (GGL15_, GGL15R) | 2GR-FXE | 12.2008-08.2015 |
| LEXUS | RX (_L1_) 350 (GYL10_, GYL10R) | 2GR-FXE | 12.2008-10.2015 |
| LEXUS | RX (_U3_) 300 (MCU35_, MCU35R) | 1MZ-FE | 05.2003-12.2008 |
| LEXUS | RX (_U3_) 330 AWD (MCU38) | 3MZ-FE | 04.2003-12.2008 |
| LEXUS | RX (_U3_) 330 (MCU38_, MCU38R) | 3MZ-FE | 04.2003-01.2006 |
| LEXUS | RX (_U3_) 350 AWD (GSU35_, GSU35R) | 2GR-FE | 02.2006-12.2008 |
| LEXUS | RX (_U3_) 350 (GSU30_) | 2GR-FE | 01.2006-12.2008 |
| PONTIAC | Vibe 2.4 | 01.2009-12.2010 | |
| TOYOTA | AVALON Saloon (_X3_) 3.5 (GSX30_, GSX30) | 2GR-FE | 01.2005-09.2012 |
| TOYOTA | AVALON Saloon (_X4_) 3.5 (GSX40_) | 2GR-FE | 09.2012-03.2018 |
| TOYOTA | AVENSIS Estate (_T25_) 2.0 VVT-i (AZT250_, AZT250R) | 1AZ-FE | 04.2003-11.2008 |
| TOYOTA | AVENSIS Estate (_T25_) 2.0 VVT-i (AZT250_, AZT250R) | 1AZ-FSE | 04.2003-11.2008 |
| TOYOTA | AVENSIS Estate (_T25_) 2.4 VVT-i (AZT251_, AZT251R) | 2AZ-FSE | 09.2003-11.2008 |
| TOYOTA | AVENSIS Estate (_T25_) 2.4 VVT-i (AZT251_, AZT251R) | 2AZ-FSE | 10.2003-10.2008 |
| TOYOTA | AVENSIS Saloon (_T25_) 2.0 VVT-i (AZT250_, AZT250R) | 1AZ-FSE | 04.2003-11.2008 |
| TOYOTA | AVENSIS Saloon (_T25_) 2.4 VVT-i (AZT251_, AZT251R) | 2AZ-FSE | 09.2003-11.2008 |
| TOYOTA | AVENSIS Saloon (_T25_) 2.4 VVT-i (AZT251_, AZT251R) | 2AZ-FSE | 10.2003-10.2008 |
| TOYOTA | AVENSIS (_T25_) 2.0 VVT-i (AZT250_, AZT250R) | 1AZ-FSE | 03.2003-11.2008 |
| TOYOTA | AVENSIS (_T25_) 2.4 VVT-i (AZT251_, AZT251R) | 2AZ-FSE | 09.2003-11.2008 |
| TOYOTA | AVENSIS (_T25_) 2.4 VVT-i (AZT251_, AZT251R) | 2AZ-FSE | 10.2003-10.2008 |
| TOYOTA | AVENSIS VERSO (_M2_) 2.0 VVT-i (ACM20_, ACM20R) | 1AZ-FE | 08.2001-11.2009 |
| TOYOTA | CAMRY Saloon (_V3_) 2.0 (ACV31_, ACV31) | 1AZ-FE | 08.2001-11.2006 |
| TOYOTA | CAMRY Saloon (_V3_) 2.4 (ACV30, ACV36) | 2AZ-FE | 11.2001-11.2006 |
| TOYOTA | CAMRY Saloon (_V3_) 3.0 (MCV30_, MCV30R) | 1MZ-FE | 08.2001-11.2006 |
| TOYOTA | CAMRY Saloon (_V4_) 2.4 (ACV40) | 2AZ-FE | 01.2006-09.2011 |
| TOYOTA | CAMRY Saloon (_V4_) 2.4 (ACV40_) | 2AZ-FE | 01.2006-09.2011 |
| TOYOTA | CAMRY Saloon (_V4_) 2.4 (ACV40_, ACV40R) | 2AZ-FE | 01.2006-09.2011 |
| TOYOTA | CAMRY Saloon (_V4_) 2.4 Hybrid (AHV40R) | 2AZ-FXE | 01.2006-09.2011 |
| TOYOTA | CAMRY Saloon (_V4_) 3.5 (GSV40_) | 2GR-FE | 09.2006-12.2014 |
| TOYOTA | CAMRY Saloon (_V5_) 2.5 (ASV50_) | 2AR-FE | 10.2011-03.2018 |
| TOYOTA | CAMRY Saloon (_V5_) 2.5 (ASV50_, ASV50R) | 2AR-FE | 09.2011-03.2018 |
| TOYOTA | CAMRY Saloon (_V5_) 3.5 (GSV50_) | 2GR-FE | 09.2011-12.2017 |
| TOYOTA | CAMRY Saloon (_V5_) 3.5 (GSV50_) | 2GR-FE | 12.2012-03.2018 |
| TOYOTA | Corolla 2.4 | 01.2009-12.2010 | |
| TOYOTA | HIGHLANDER / KLUGER (_U4_) 3.5 4WD (GSU45_, GSU45R) | 2GR-FE | 06.2007-02.2014 |
| TOYOTA | Matrix 2.4 | 01.2009-12.2013 | |
| TOYOTA | MATRIX (_E14_) 2.4 (AZE14_) | 2AZ-FE | 01.2008-05.2014 |
| TOYOTA | PREVIA III (_R2_, _R5_) 2.4 (ACR50_, ACR50R) | 2AZ-FE | 10.2005- |
| TOYOTA | RAV 4 III (_A3_) 2.0 4WD (ACA30_, ACA30R) | 1AZ-FE | 02.2006-06.2013 |
| TOYOTA | RAV 4 III (_A3_) 2.4 4WD (ACA31, ACA33) | 2AZ-FE | 11.2005-06.2013 |
| TOYOTA | RAV 4 III (_A3_) 2.4 (ACA36, ACA38) | 2AZ-FE | 11.2005-12.2013 |
| TOYOTA | RAV 4 III (_A3_) 2.5 (ASA38) | 2AR-FE | 11.2008-06.2013 |
| TOYOTA | RAV 4 III (_A3_) 3.5 4WD (GSA33) | 2GR-FE | 11.2005-12.2012 |
| TOYOTA | RAV 4 IV (_A4_) 2.5 4WD (ASA44) | 2AR-FE | 12.2012-10.2018 |
| TOYOTA | RAV 4 IV (_A4_) 2.5 (ASA42) | 2AR-FE | 12.2012-11.2018 |
| TOYOTA | SIENNA (_L2_) 3.3 4WD (MCL25_, MCL25L) | 3MZ-FE | 01.2003-11.2009 |
| TOYOTA | SIENNA (_L2_) 3.3 (MCL20_, MCL23_, MCL20L, MCL23L) | 3MZ-FE | 01.2003-12.2006 |
| TOYOTA | SIENNA (_L3_) 3.5 4WD (GSL35_) | 2GR-FE | 01.2010- |
| TOYOTA | SIENNA (_L3_) 3.5 (GSL30_) | 2GR-FE | 01.2010- |
| TOYOTA | VENZA (_V1_) 2.7 4WD (AGV15_) | 1AR-FE | 11.2008-04.2012 |
| TOYOTA | VENZA (_V1_) 2.7 4WD (AGV15_) | 1AR-FE | 11.2008-11.2016 |
| TOYOTA | VENZA (_V1_) 2.7 (AGV10_) | 1AR-FE | 11.2008-11.2016 |
| TOYOTA | VENZA (_V1_) 3.5 4WD (GGV15_) | 2GR-FE | 11.2008-11.2016 |
Reference Information
| 17825N | WAI |
| 255502 | KUHNER |
| 428000-4310 | DENSO |
| 91-29-5751 | WILSON |
| S6396S | AS-PL |
| S-80484 | DIXIE |
| STM1098 | ROLLCO |
| STM1332 | ROLLCO |
| STR6338 | ELECTROLOG |
| UD20544S | AS-PL |
