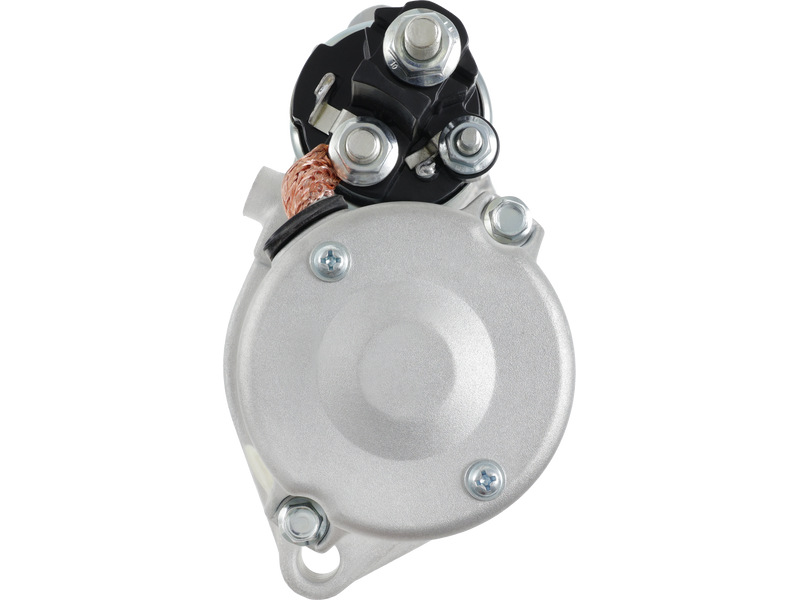

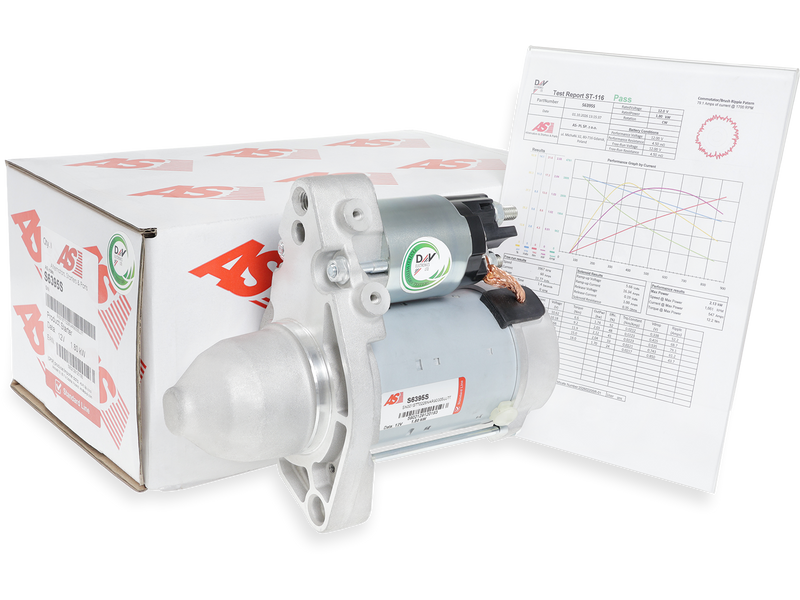

Specifications
Kilowatt | 1.8 kW |
Length (L.1) | 199 mm |
Mount Hole Center - Center (O.1) | 143 mm |
Mount Hole Diameter (C.1) | M10x1.5 mm |
Mount Hole Diameter (C.2) | 11 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 9 qty |
Pinion at Rest (B) | 27 mm |
Rotation | CW |
Spigot Diameter (A) | 62 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
JAGUAR | XF 5.0 | [508PN] | 03.2009-04.2015 |
JAGUAR | XF 5.0 Kompressor | [508PS] | 01.2009-04.2015 |
JAGUAR | XF 5.0 Kompressor | [508PS] | 03.2009-04.2015 |
JAGUAR | XJ 5.0 SCV8 | [508PS] | 10.2009- |
JAGUAR | XJ 5.0 V8 | [508PN] | 10.2009- |
JAGUAR | XK 5.0 V8 | [508PN] | 01.2009-07.2014 |
JAGUAR | XK 5.0 XKR | [508PS] | 01.2009-07.2014 |
JAGUAR | XK 5.0 XKR | [508PS] | 09.2010-07.2014 |
JAGUAR | XK 5.0 XKR-S | [508PS] | 01.2011-07.2014 |
Reference Information
254787D DRS1192 8W83-11001-BB 6040468.1 STN5320 C2P26075 840.510.092 DSN1383 UD20545S DENDSN1383 S6395S DX23-11001-AA 8W83-11001-BD C2D27864 8W83-11001-BC DX23-11001-AC LRS4054 88213888 20432864OE C2D19967 DS2302 EAA-122877 LRS04054 CST40468GS 428000-5320 C2D3536 428000-9600 S-80758 STR6299 25-5217 3689 STR70350Video/Publications
20432864OE 25-5217 254787D 3689 428000-5320 428000-9600 6040468.1 840.510.092 88213888 8W83-11001-BB 8W83-11001-BC 8W83-11001-BD C2D19967 C2D27864 C2D3536 C2P26075 CST40468GS DENDSN1383 DRS1192 DS2302 DX23-11001-AC EAA-122877 LRS04054 LRS4054 S-80758 STN5320 STR70350 UD20545S 70-8451-2
