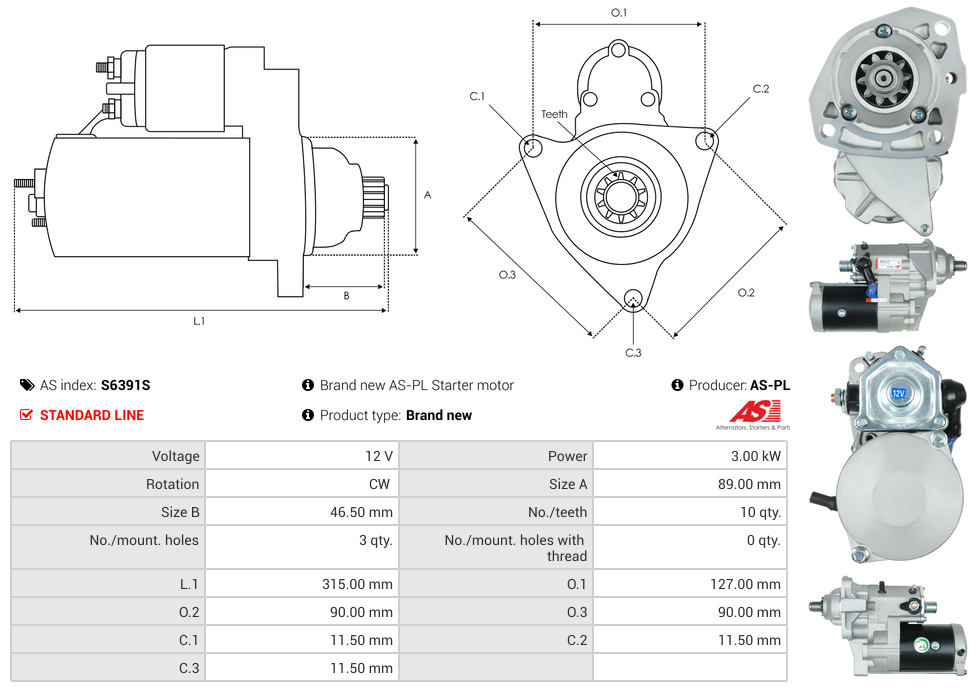

Specifications
Kilowatt | 3 kW |
Length (L.1) | 315 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 90 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11.5 mm |
Mount Hole Diameter (C.2) | 11.5 mm |
Mount Hole Diameter (C.3) | 11.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 46.5 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
BOBCAT | 943 P | [4-236] | 01.1985-12.1994 |
BOBCAT | 953C | [4-236] | 01.1995-12.1999 |
BOBCAT | 963G | [1004-40T] | 01.1999-12.2002 |
BOBCAT | 963 P | [1004-40T] | 01.1997-12.2002 |
CLARK | 953 | [4-236] | 01.1994-12.2004 |
CLARK | 963 | [4-236] | 01.1994-12.2004 |
Reference Information
91-29-5437 STN1705 STR6611 228000-5512 228000-5510 UD16531S 228000-5511 STR70288 6040355 254206 830.905.103 10461643 20432553BN 6667320 CST40355AS 17250N STRS826Video/Publications
10461643 17250N 20432553BN 228000-5510 228000-5511 228000-5512 254206 6040355.0 6667320 830.905.103 91-29-5437 CST40355AS STN1705 STR70288 STRS826 UD16531SAdd Your Number
