Specifications
Kilowatt | 3 kW |
Length (L.1) | 318 mm |
Mount Hole Center - Center (O.1) | 163 mm |
Mount Hole Diameter (C.1) | 15.5 mm |
Mount Hole Diameter (C.2) | 15.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |

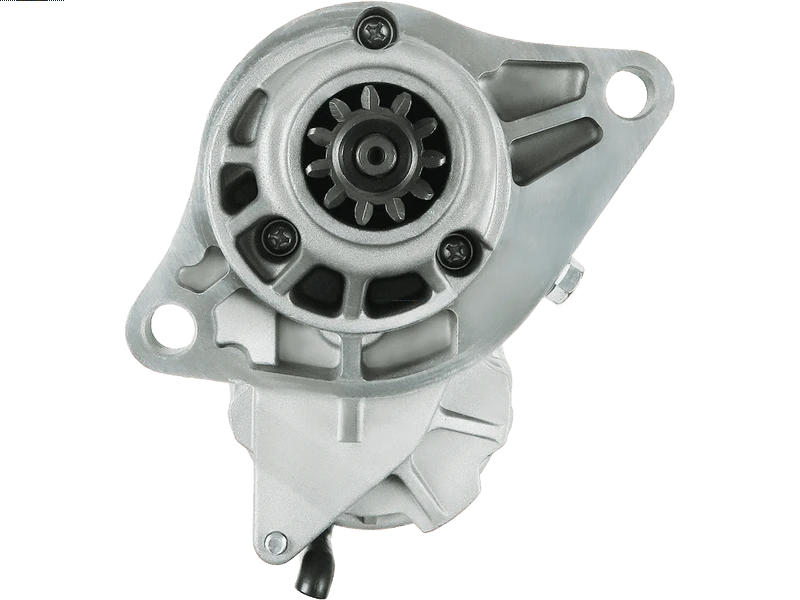

No./Teeth | 11 qty |
Pinion at Rest (B) | 44 mm |
Rotation | CW |
Spigot Diameter (A) | 95 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
ISUZU | Various Models |
Reference Information
2280002807 228000-2800 8975002310 190-30106 2280002805 8975003580 2280002804 130.567.112 8975003582 8975003581 18136N 18136R STR6272 UD17015S 255697 2280002800 91-29-5441 STRJ335 2911234200Video/Publications
130.567.112 18136N 18136R 190-30106 228000-2800 2280002800 2280002804 2280002805 2280002807 255697 2911234200 8975002310 8975003580 8975003581 8975003582 91-29-5441 STRJ335 UD17015SAdd Your Number
