S6377S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S6377S
Price: 361.86 NZD
Availability: InStock

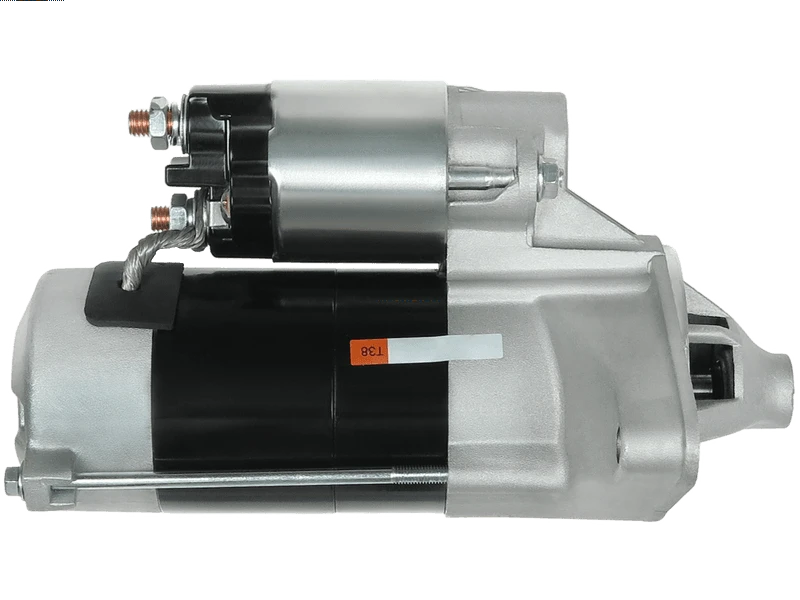

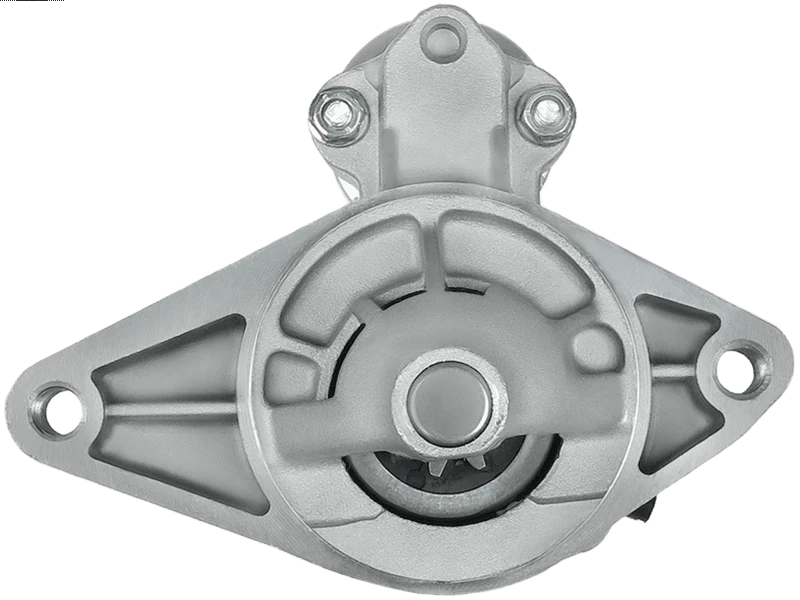

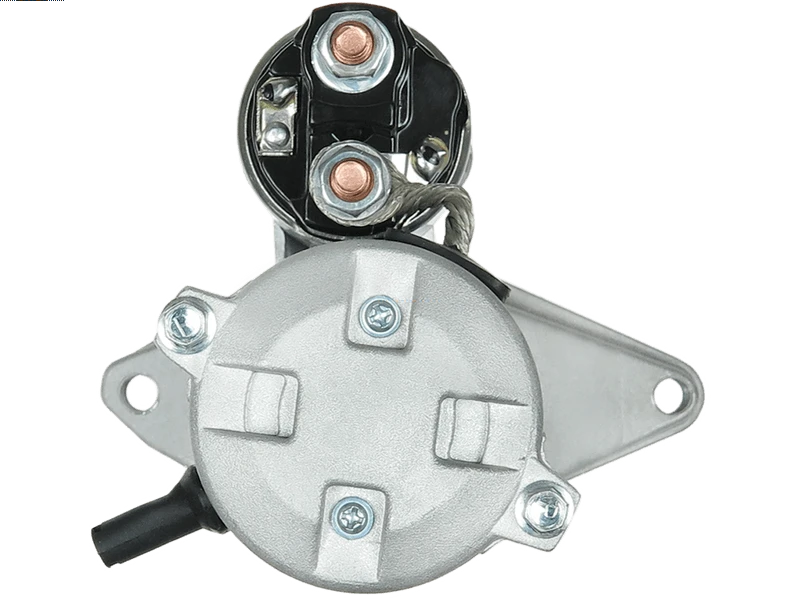

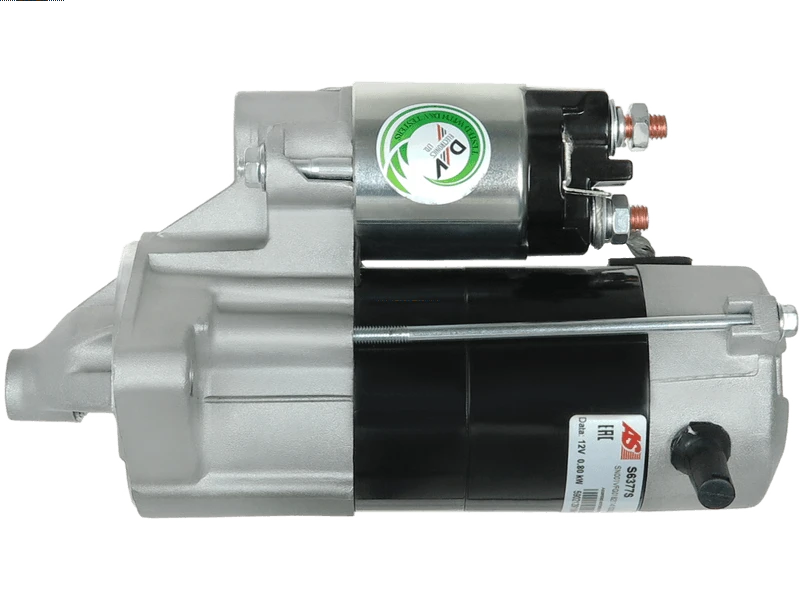

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DENSO

Price:

NZ$ 361.86 including GST

NZ$ 314.66 excluding GST

UOM:

each

Product Code:

S6377S

Quantity In Stock:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

Kilowatt	0.8 kW
Length (L.1)	211 mm
Mount Hole Center - Center (O.1)	131 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
Pinion at Rest (B)	4 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	DENSO
Voltage	12 V

Make	Model	Type	Year
DAIHATSU	Charade 1.3 16V	[HCE]	01.1993-12.2000
DAIHATSU	Feroza 1.6	[HD-C]	01.1988-12.1999
DAIHATSU	Gran Move 1.5 16V	[HE-EG]	01.1996-12.2000
DAIHATSU	Gran Move 1.6 16V	[HD-EP]	01.1998-12.2002

JS1086 LRS1280 MAV421720 STRS170 UD16995S STRS613 20432771BN MAV421770 11849 201086 DRS3546 J5216014 128000-6780 MAV461190 128000-9470 2810087602 2810087603 128000-6750 CST40177AS LRS01280 220205 S12DE0511A2 110.504.082 STN0154 6040177 9649 ANM15766X 2810087606 25-1492

110.504.082 11849 128000-6750 128000-6780 128000-9470 201086 20432771BN 25-1492 2810087602 2810087603 2810087606 6040177.0 9649 CST40177AS DRS3546 J5216014 JS1086 LRS01280 LRS1280 MAV421720 MAV421770 MAV461190 STN0154 STRS170 STRS613 UD16995S 220205
