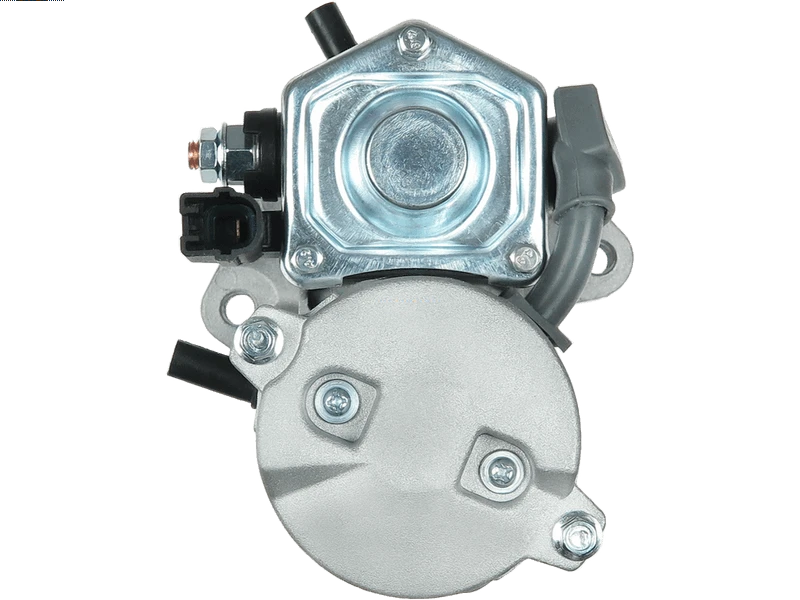

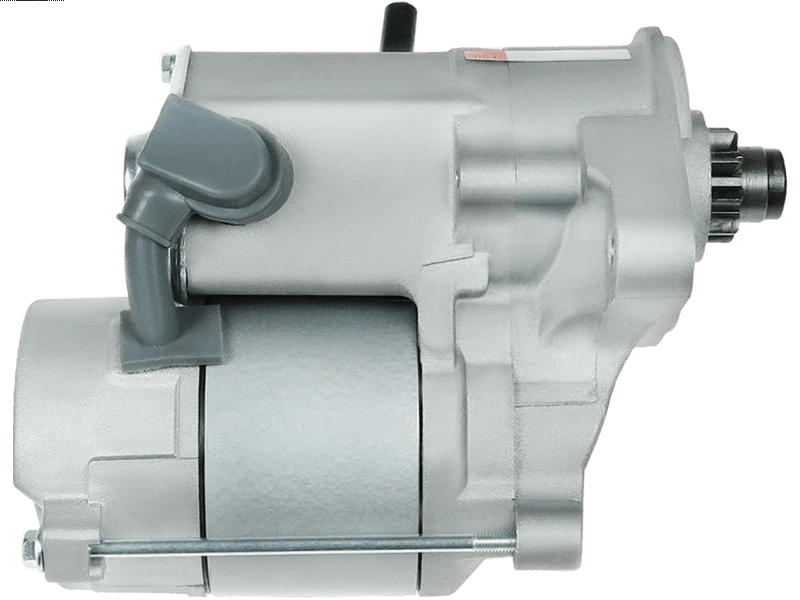

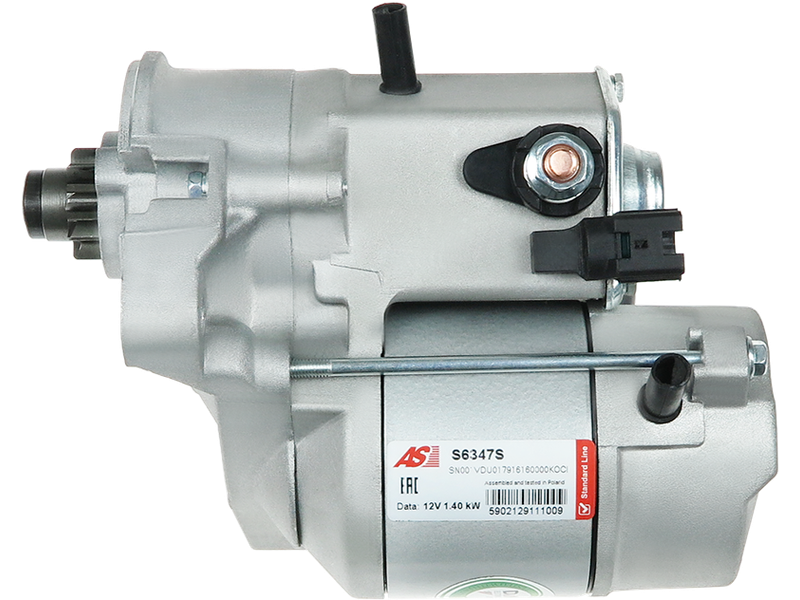

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 391.26 including GST
NZ$ 340.23 excluding GST
or four payments of $97.82
with
Learn More
each
S6347S
No stock in NZ currently
No stock in NZ currently
Information
228000-2570Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 189 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | 4 Runner 2.7 | [3RZ-FE] | 01.1995-12.2000 |
| TOYOTA | Hi-Ace 2.0 | [1RZ] | 01.1993- |
| TOYOTA | Hi-Ace 2.4 | [2RZ-E] | 01.1993-12.1995 |
| TOYOTA | Hi-Ace 2.4 | [2RZ-E] | 01.1995-12.1998 |
| TOYOTA | Hi-Lux 2.4 | [RZ-FE] | 01.1998- |
Reference Information
| 17668 | ROBERT'S |
| 17668N | WAI / TRANSPO |
| 190.540.092 | PSH |
| 201101 | KUHNER |
| 20432804OE | REAL |
| 2280001690 | DENSO |
| 228000-2570 | DENSO |
| 2280002571 | DENSO |
| 2280002572 | DENSO |
| 2280002573 | DENSO |
| 2280002574 | DENSO |
| 2280003262 | DENSO |
| 228000-3282 | DENSO |
| 25-2239 | ELSTOCK |
| 28100-0C010 | TOYOTA |
| 281000C040 | TOYOTA |
| 281000C041 | TOYOTA |
| 2810042040 | TOYOTA |
| 2810075090 | TOYOTA |
| 2810075091 | TOYOTA |
| 336528 | LOGISTIK |
| 6040408 | SANDO |
| 88212892 | POWERMAX |
| 91-29-5273 | WILSON |
| CST40408 | CASCO |
| DRS3848 | DELCO |
| F004A94007 | BOSCH |
| F004A94012 | BOSCH |
| J5212102 | HERTH+BUSS |
| LRS01378 | LUCAS |
| LRS1378 | LUCAS |
| MAV461060 | SIOM |
| S131.321 | PSH |
| S-8454 | DIXIE |
| STN1101 | KRAUF |
| UD16975S | AS-PL |
Video/Publications
