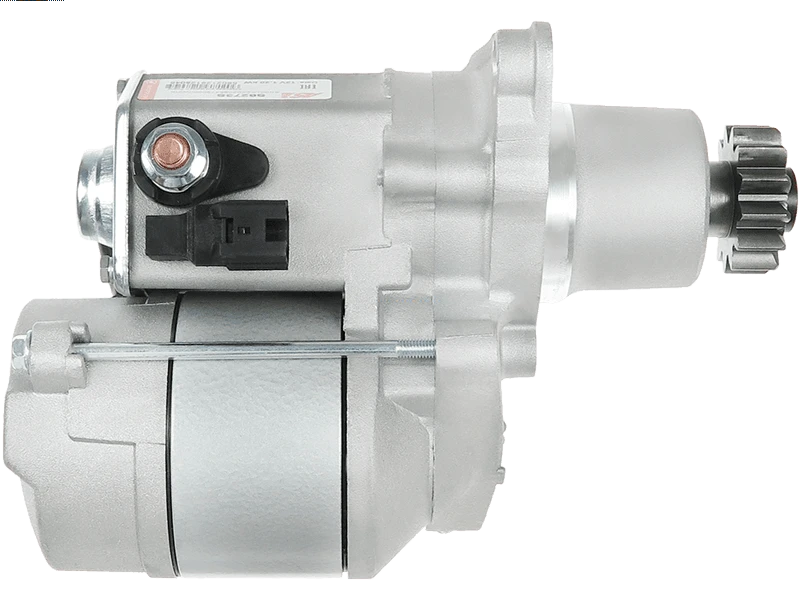

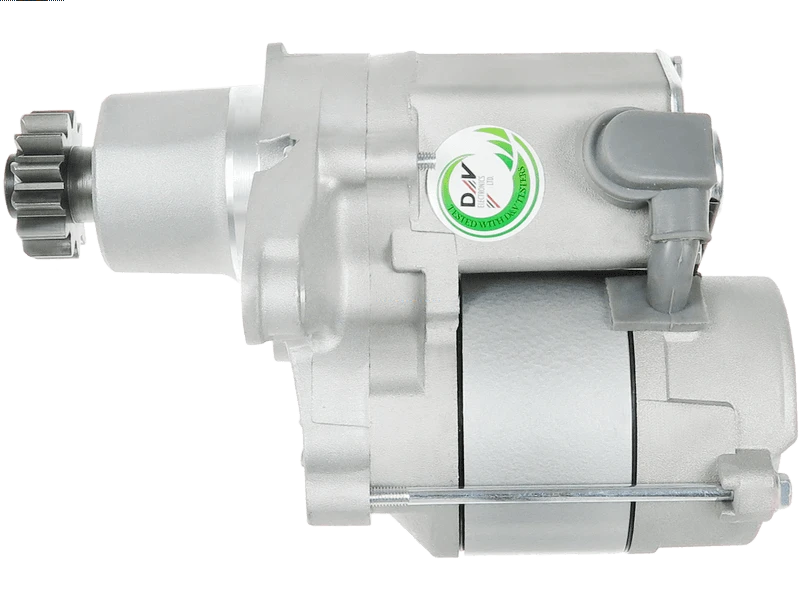

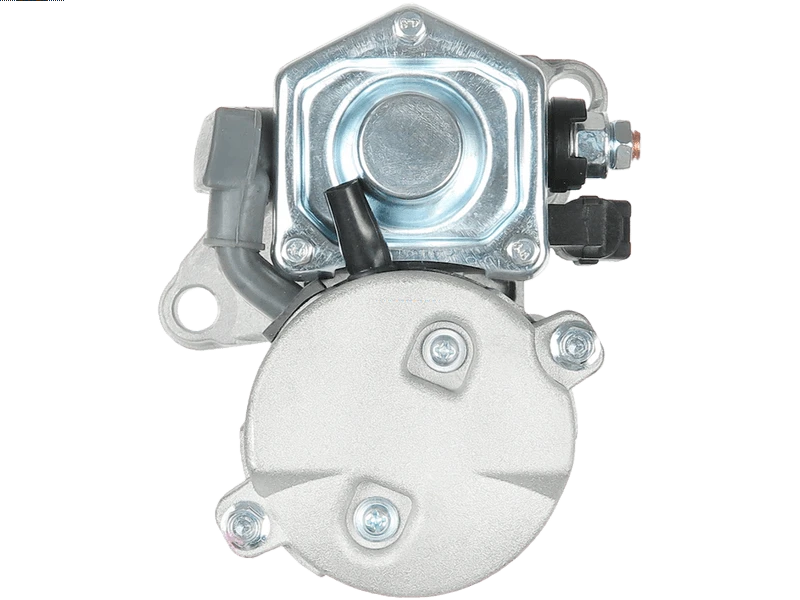

Specifications
Kilowatt | 1.2 kW |
Length (L.1) | 209 mm |
Mount Hole Center - Center (O.1) | 122 mm |
Mount Hole Diameter (C.1) | 12 mm |
Mount Hole Diameter (C.2) | 12 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 13 qty |
Pinion at Rest (B) | 66 mm |
Rotation | ACW |
Spigot Diameter (A) | 55 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Avensis 2.0 | [3S-FE] | 01.1997-12.2003 |
TOYOTA | Caldina 2.0 | [3S-FE] | 01.1992-12.1997 |
TOYOTA | Carina E 2.0 | [3S-FE] | 01.1992-12.1997 |
TOYOTA | Carina E 2.0 GTi | [3S-GE] | 01.1992-12.1996 |
TOYOTA | Corona 2.0 | [3S-FE] | 01.1992-12.1996 |
TOYOTA | Picnic 2.0 | [3S-FE] | 01.1996-12.2001 |
TOYOTA | Picnic 2.0 16V | [3S-FE] | 01.1996-12.2001 |
TOYOTA | RAV 4 2.0 | [3S-FE] | 01.1994-12.2000 |
TOYOTA | Sportsvan 2.0 16V | [3S-FE] | 01.1996-12.2001 |
Reference Information
20652 63280051 63280051010 190.513.132 DSN923 8213118 2810062011 228000-3220 2810074011R 6040142 220483 20652D 2810003070 20432241OE DENDSN923 UD20833S 20432241BN LRS02066 STRF030 STN1080 2810074120 MSN8051 11755 CST40142AS 9.44281E+11 MAV421420 28100-74130 JS1080 CGB-23638 28100-74210 2810074011 J5212058 STR6048 2810074010 228000-0820 6040142.1 228000-0821 2810028052 228000-0822 201080D 228000-0823 28100-74280 428000-7780 STB1080 25-2088 228000-7251 2810074140 CST40142GS LRS2066 MAV421420A 88213118Video/Publications
063280051010 11755 190.513.132 201080D 20652 20652D 228000-0820 228000-0821 228000-0822 228000-0823 228000-3220 228000-7251 25-2088 28100-74130 28100-74210 28100-74280 428000-7780 8213118 88213118 944280522700 CGB-23638 DENDSN923 J5212058 JS1080 LRS02066 LRS2066 MAV421420 MSN8051 STB1080 STN1080 STRF030 UD20833S 220483Add Your Number
