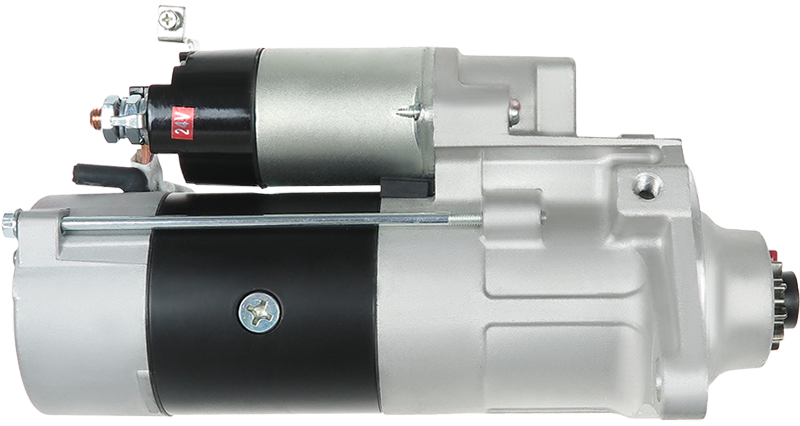

Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 309 mm |
| Mount Hole Center - Center (O.1) | 163 mm |
| Mount Hole Diameter (C.1) | 15 mm |
| Mount Hole Diameter (C.2) | 15 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 43 mm |
| Rotation | CW |
| Spigot Diameter (A) | 95 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Various Models |
Reference Information
M008T6097 M008T61371 E02GES096 MAV376220A UD18603S CST35622AS 20437226OE 20437226BN 1811003493 1811004142 1811004340 M8T60973AM 1811004261 1811004140 M8T61371 6035622.1 M009T60871 1811003191 M8T60973 M8T60971 M8T60972 M9T60871 1811003240 1811003241 M008T60973 CST35622GS M008T60972 1811004173 M008T60971 S5468S 6035622 151.520.112.130Video/Publications
151.520.112.130 1811003493 1811004261 M009T60871 M9T60871 S5468S UD18603SAdd Your Number
