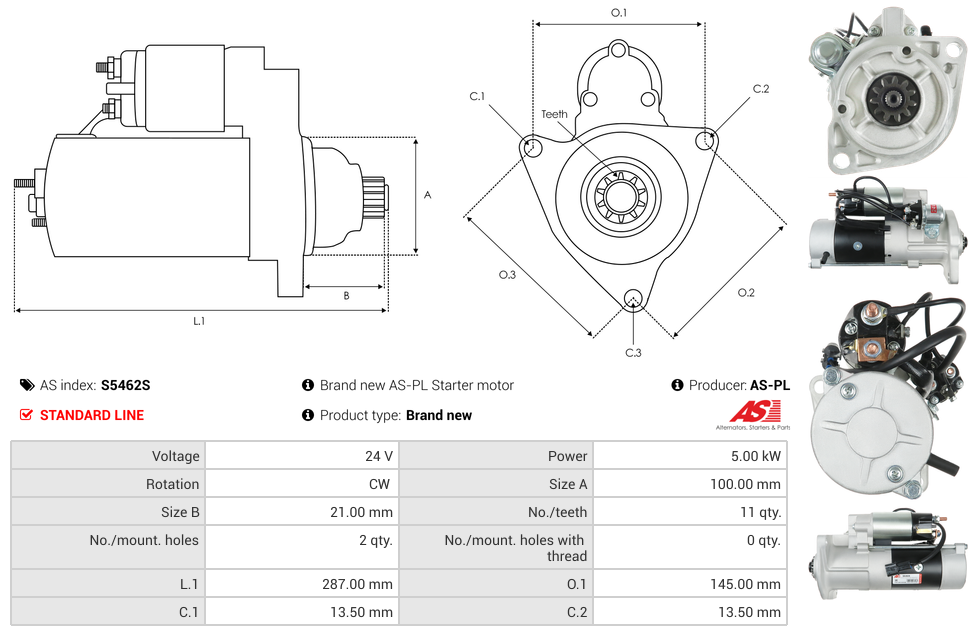

Specifications
Kilowatt | 5 kW |
Length (L.1) | 287 mm |
Mount Hole Center - Center (O.1) | 145 mm |
Mount Hole Diameter (C.1) | 13.5 mm |
Mount Hole Diameter (C.2) | 13.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 21 mm |
Rotation | CW |
Spigot Diameter (A) | 100 mm |
Unit Type | MITSUBISHI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
KOBELCO | SK200-3 | [6D34] | |
MITSUBISHI | Fuso | [6D32] |
Reference Information
130-80182 STM3889 M008T87071 UD18646S ME087775 M8T87071Video/Publications
130-80182 M008T87071 M8T87071 ME087775 STM3889 UD18646SAdd Your Number
