Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 366 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |

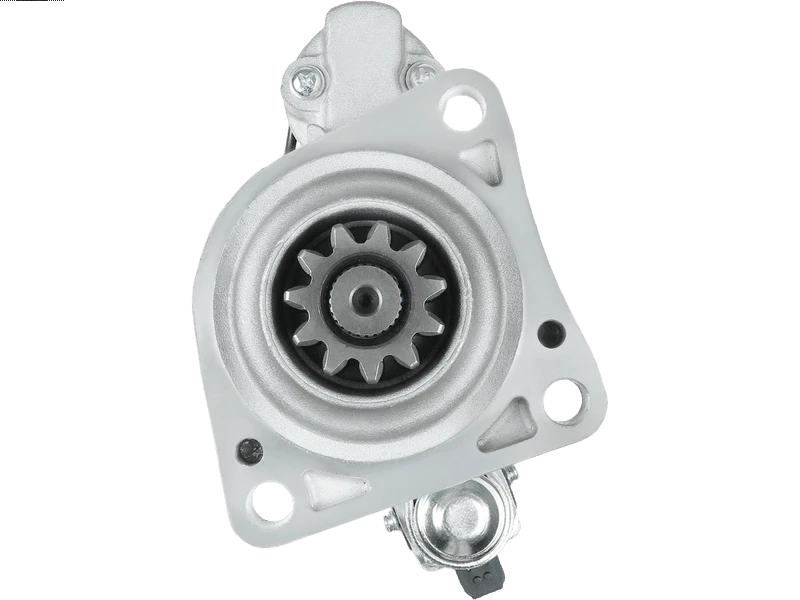

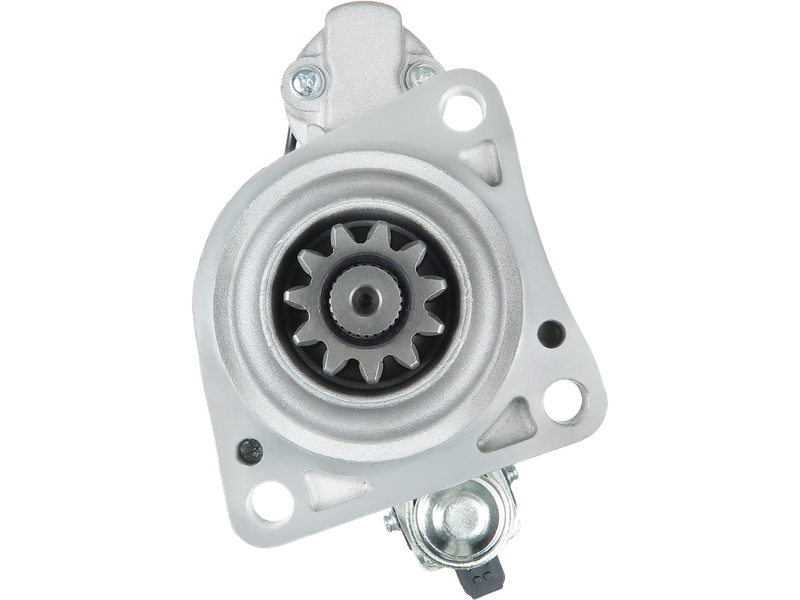

| No./Teeth | 11 qty |
| Pinion at Rest (B) | 47.5 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88.5 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | Various Models | ||
| VOLVO PENTA | Various Models |
Reference Information
M009T67989 M009T67989AM M9T67979AM 21855436 UD18575S M9T67989AM M009T67979 M009T67979AM 336604 20437986OE CST35689GS 130-90182 256410M M9T67979 M9T67989 6035689.1 STM2492 23288375 811.533.113.370 811.533.113.371 MITM9T67979 MITM9T67989Video/Publications
20437986OE 21855436 6035689.1 811.533.113 CST35689GS M009T67979 M009T67979AM M009T67989 M009T67989AM M9T67979 M9T67979AM M9T67989 M9T67989AM MITM9T67989 UD18575S 11139226 Mahle Volvo 23288375 72524889 811533113 PSH AZE4714 IS9524 Mitsubishi show MS1042Add Your Number
