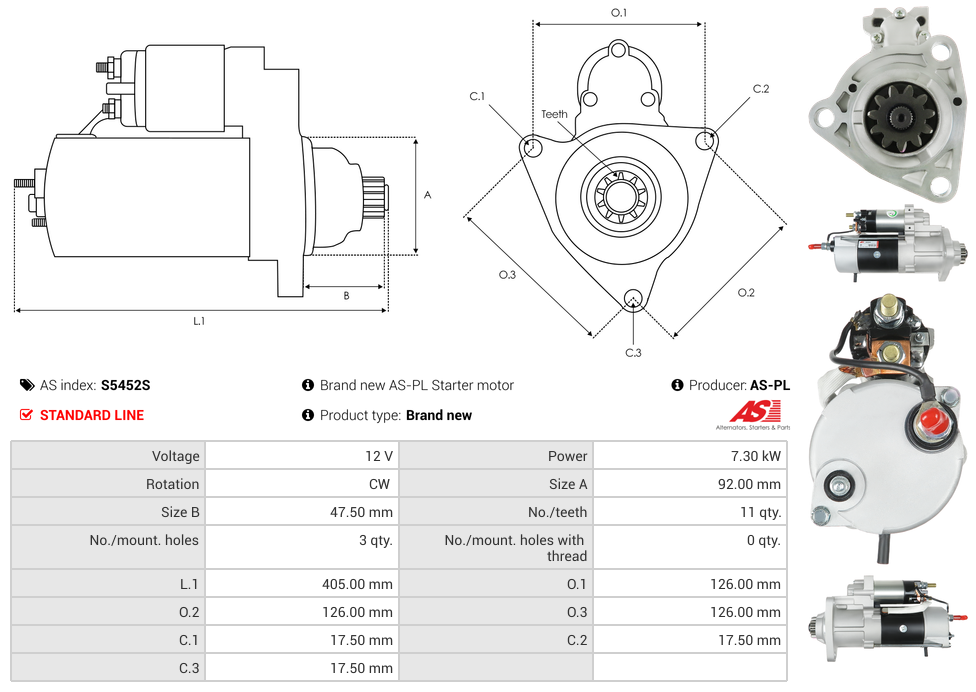

Specifications
Kilowatt | 7.3 kW |
Length (L.1) | 405 mm |
Mount Hole Center - Center (O.1) | 126 mm |
Mount Hole Center - Center (O.2) | 126 mm |
Mount Hole Center - Center (O.3) | 126 mm |
Mount Hole Diameter (C.1) | 17.5 mm |
Mount Hole Diameter (C.2) | 17.5 mm |
Mount Hole Diameter (C.3) | 17.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 47.5 mm |
Rotation | CW |
Spigot Diameter (A) | 92 mm |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CUMMINS | Various Models |
Reference Information
STR2698 3102762 M9T70579 M39308 M009T70579 UD18493SVideo/Publications
3102762 M009T70579 M39308 M9T70579 UD18493SAdd Your Number
