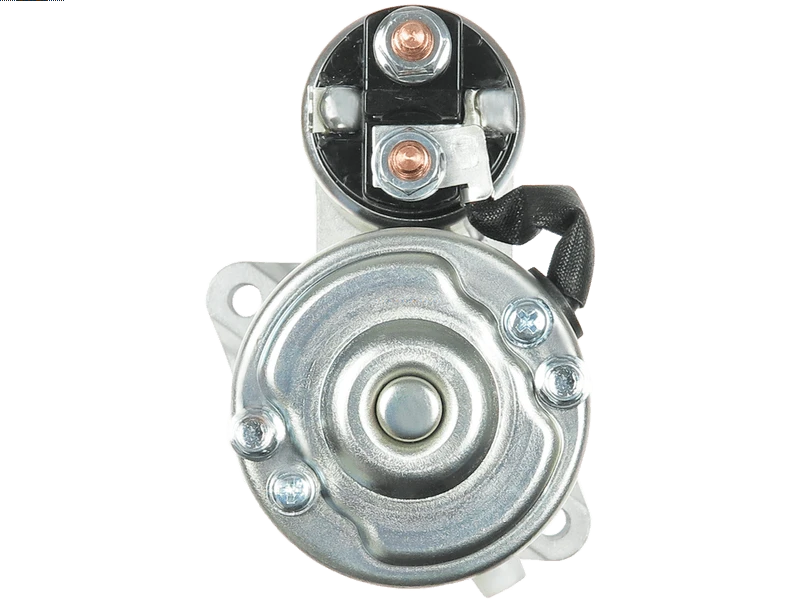

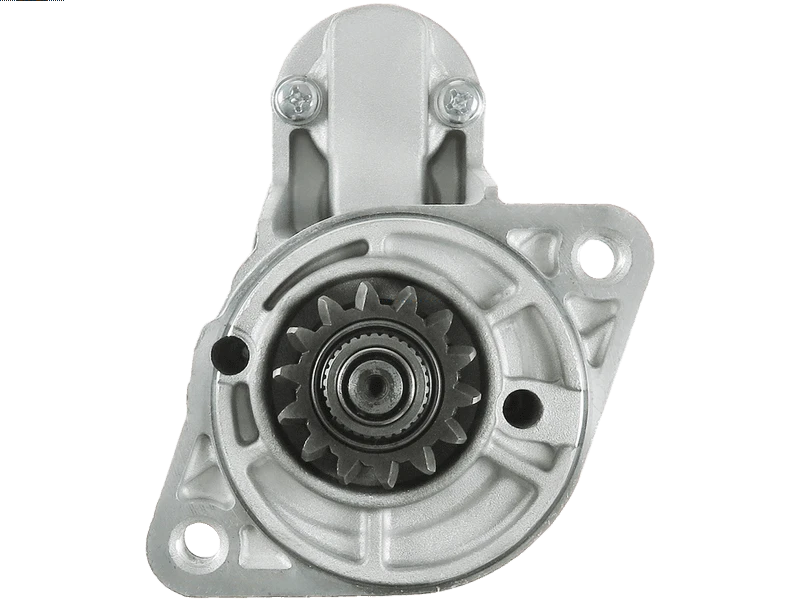

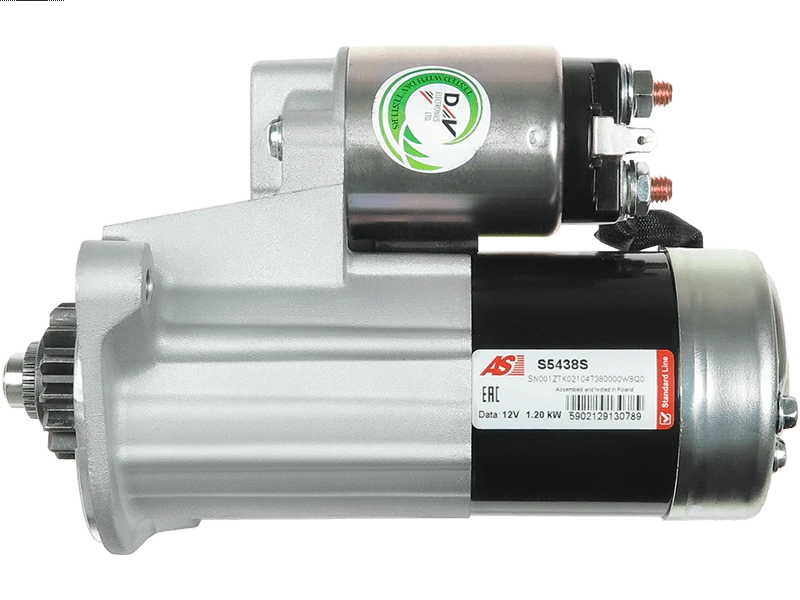

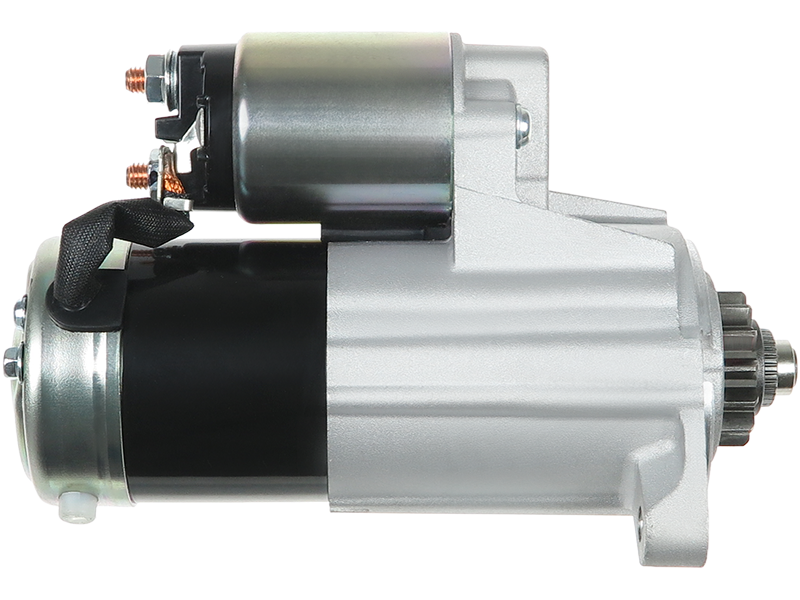

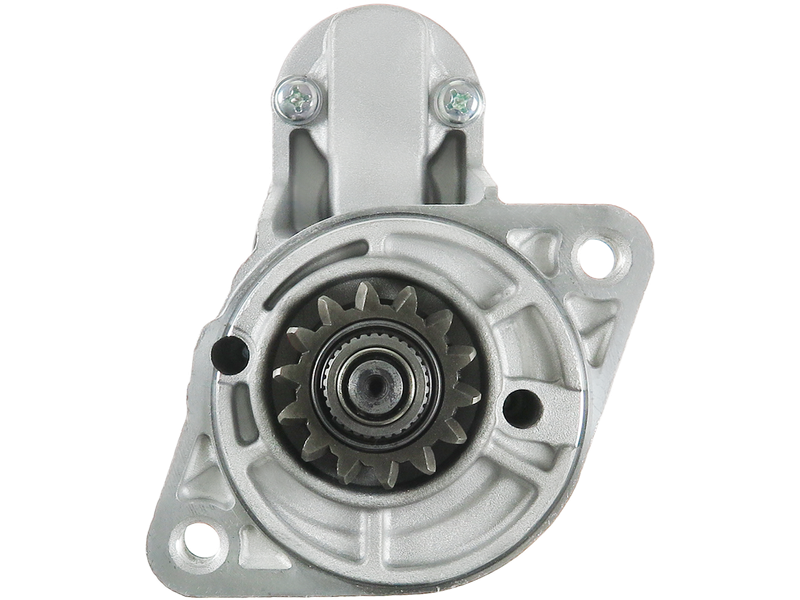

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 262.61 including GST
NZ$ 228.36 excluding GST
or four payments of $65.65
with
Learn More
each
S5431.
S5438S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T60481Associated Numbers
M0T60482 snj548 MITSUBISHI M000T60482 M0T60481 WAI New 17097N Old Alltech 124-19700 Armature G Roy 19700 Atelier Dynamo S103-530 CASCO CST35273GS DuBois M900703 EGI S-19700 Elpar Industries 0125036107 Lester Mitsubishi M000T60481 Heavy 30L66-10600 Sales Mondial 73-035-00 Our Part Number # PASCO S-130530 Power Select Powerite Automotive Quality Rebuilders Raw Road Warrior ARROWHEAD M2T50281 M2T50285 M2T53681 SMT0319 DELCO DRS3936 J N ELECTRICAL PRODUCTS 410-48036 JANNCO 410-48036R LESTER 17097 19713 LUCAS ELECTRIC LRS01145 LRS02627 M002T50281ZC M2T50271 M2T50281ZC MM317600 MM31760001 MM317601 MM317602 MM317604 SCHAEFF INC 5527662777 5999999577 5999999877 TORO 67-4600 70-8760 VOLVO 7410733 WEIDEMANN 5166001159 5166001163 5166317604 5166317612 S5431S. S5438S. S5469S.Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 207 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 14 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DOOSAN | DX15 1.0 | [L3E] | 01.2009- |
| DOOSAN | DX18 1.0 | [L3E] | 01.2009- |
| DOOSAN | Solar 015 1.0 | [L3E] | 01.2002-12.2008 |
| DOOSAN | Solar 018-VT 1.0 | [L3E] | 01.2004-12.2008 |
Reference Information
| 114696 | CARGO |
| 130-00105 | ROBERT'S |
| 150.571.142.130 | PSH |
| 150.571.142.370 | PSH |
| 20437372OE | REAL |
| 2.401-00003 | DOOSAN |
| 2.401.00003 | DOOSAN |
| 243-14119 | DIXIE |
| 25-4413 | ELSTOCK |
| 30L66-10600 | MITSUBISHI |
| 30L66-20600 | MITSUBISHI |
| 6035273.1 | SANDO |
| 8310 | CEVAM |
| 88214774 | POWERMAX |
| CGB-54413 | AINDE |
| CST35273GS | CASCO |
| F032114696 | CARGO |
| LRS02740 | LUCAS |
| LRS2740 | LUCAS |
| M000T60481 | MITSUBISHI |
| M000T60481AM | MITSUBISHI |
| M000T60482 | MITSUBISHI |
| M000T60482AM | MITSUBISHI |
| M0T60481 | MITSUBISHI |
| M0T60481AM | MITSUBISHI |
| M0T60482 | MITSUBISHI |
| M0T60482AM | MITSUBISHI |
| MD072585 | MITSUBISHI |
| MITM0T60481 | WOODAUTO |
| MITM0T60482 | WOODAUTO |
| S130.376 | PSH |
| S145.495 | PSH |
| S5438S | AS-PL |
| STX200117 | STARDAX |
| STX200249 | STARDAX |
| STX200249R | STARDAX |
| UD18553S | AS-PL |
