Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 259.45 including GST
NZ$ 225.61 excluding GST
or four payments of $64.86
with
Learn More
each
S9080
S5409S
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T20571Associated Numbers
MXS345 M0T81781 M000T81781 md341813 SNJ565 BXS0143 MXS297 70-6277 M0T31172 M00T31172 MD1810A0 706277 Arrowhead SMT0306 Lester 17907 Mitsubishi M0T20571 M0T20571ZC M994145D MR994145 PIC Picture ID 1035057 Wilson 91273391 J N 41048273 M000T20571 M000T20571ZC BSR4129X MD342382 m00t31171 m000t31171 m00t31172 m000t31172
| Arrowhead | SMT0286 |
| BBB Industries | 19038 |
| Bosch Reman | SR4117X |
| Bosch Service Europe | 0-986-UR1-480 |
| DENSO Auto Parts | 280-4332 |
| Dixie Electric Ltd | S-80329 |
| IAT | S19038 |
| Industry | 19038 |
| J&N | 410-48220 |
| Lester | 19038 |
| Mitsubishi | MN137825 |
| Mitsubishi Electric | M0T31071 |
| Mitsubishi Reman | M137825D |
| PIC | 103-421A |
| RELIANCE | 61087 |
| Romaine Electric | 41-17906 |
| Standard Starter Drive | 436538 |
| Voltux | V1-19038 |
| Wilson | 91-27-3414 |
410-48273 41048273
| 0986UR1480 | Bosch ruil | |
| 114488 | Cargo | |
| 150549082 | PSH | |
| 1810A025 | Mitsubishi | |
| 1810A098 | Mitsubishi | |
| 254190 | Elstock | |
| DRS0287 | Remy | |
| DRS0688 | Remy | |
| LRS02518 | Lucas | |
| LRS2518 | Lucas | |
| M000T31071 | Mitsubishi | |
| M000T31171 | Mitsubishi | |
| M000T31771 | Mitsubishi | |
| M000T32471 | Mitsubishi | |
| M0T31071 | Mitsubishi | |
| M0T31171 | Mitsubishi | |
| M0T31771 | Mitsubishi | |
| M0T32471 | Mitsubishi | |
| M137825D | Mitsubishi | |
| MN128202 | Mitsubishi | |
| MN137825 | Mitsubishi | |
| SR4117X | Bosch (USA) | |
| STR71166 | Wood Auto | |
| WOOSTR71166 | Wood Auto |

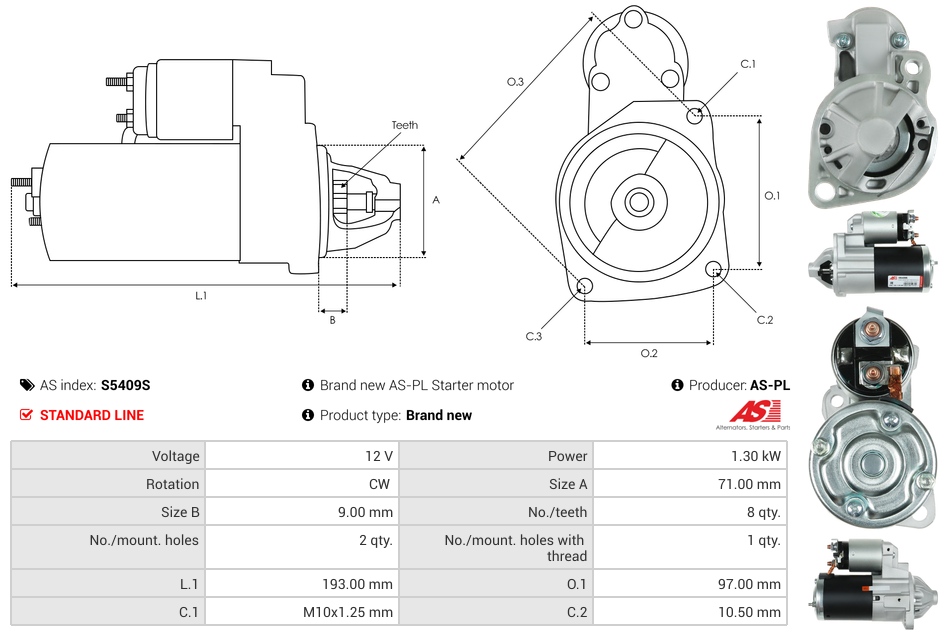

Specifications
| Kilowatt | 1.30 kW |
| Length (L.1) | 193 mm |
| Mount Hole Center - Center (O.1) | 97 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 9 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 71 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Eclipse 3.8 | 01.2006-12.2006 | |
| MITSUBISHI | Eclipse 3.8 | 01.2007-12.2007 | |
| MITSUBISHI | Eclipse 3.8 | 01.2008-12.2008 | |
| MITSUBISHI | Eclipse 3.8 | 01.2009-12.2009 | |
| MITSUBISHI | Eclipse 3.8 | 01.2010-12.2010 | |
| MITSUBISHI | Eclipse 3.8 | 01.2011-12.2011 | |
| MITSUBISHI | Eclipse 3.8 | 01.2012-12.2012 | |
| MITSUBISHI | Endeavor 3.8 | 01.2004-12.2004 | |
| MITSUBISHI | Endeavor 3.8 | 01.2005-12.2005 | |
| MITSUBISHI | Endeavor 3.8 | 01.2006-12.2006 | |
| MITSUBISHI | Endeavor 3.8 | 01.2007-12.2007 | |
| MITSUBISHI | Endeavor 3.8 | 01.2008-12.2008 | |
| MITSUBISHI | Endeavor 3.8 | 01.2010-12.2010 | |
| MITSUBISHI | Endeavor 3.8 | 01.2011-12.2011 | |
| MITSUBISHI | Galant 3.8 | 01.2005-12.2005 | |
| MITSUBISHI | Galant 3.8 | 01.2006-12.2006 | |
| MITSUBISHI | Galant 3.8 | 01.2007-12.2007 | |
| MITSUBISHI | Galant 3.8 | 01.2008-12.2008 | |
| MITSUBISHI | Galant 3.8 | 01.2009-12.2009 |
Reference Information
| 150.935.082 | PSH |
| 17907N | WAI / TRANSPO |
| 17907R | WAI / TRANSPO |
| 91-27-3391 | WILSON |
| M000T20571 | MITSUBISHI |
| M0T20571 | MITSUBISHI |
| M0T20571ZC | MITSUBISHI |
| MR994145 | MITSUBISHI |
| S130.313 | PSH |
| STM4945 | KRAUF |
| UD20392S | AS-PL |
Video/Publications
