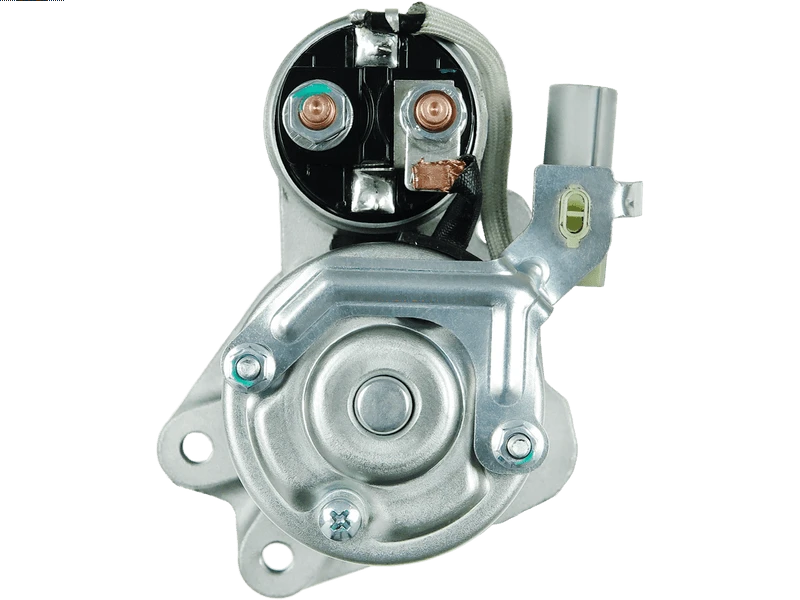

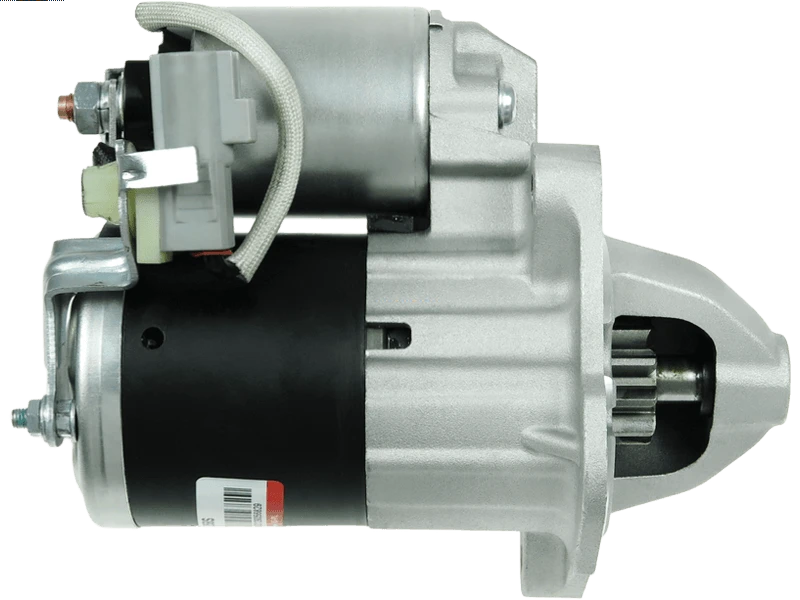

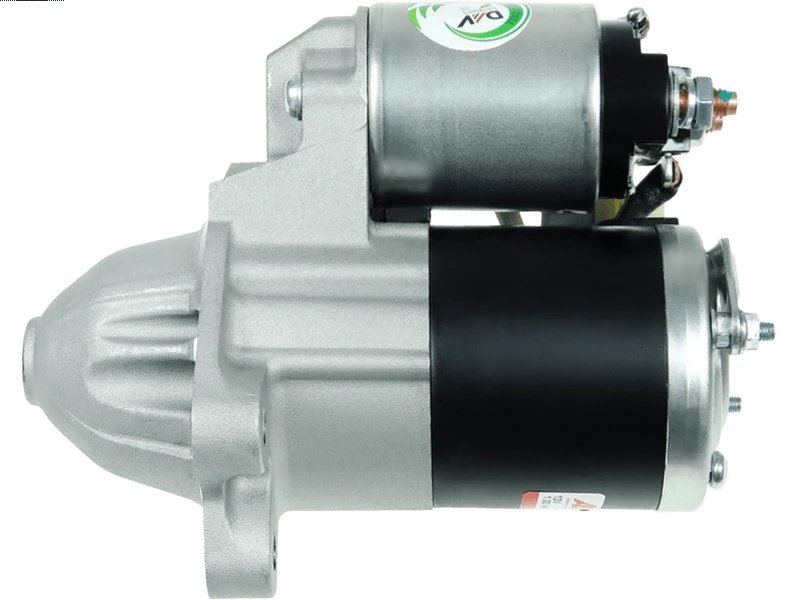

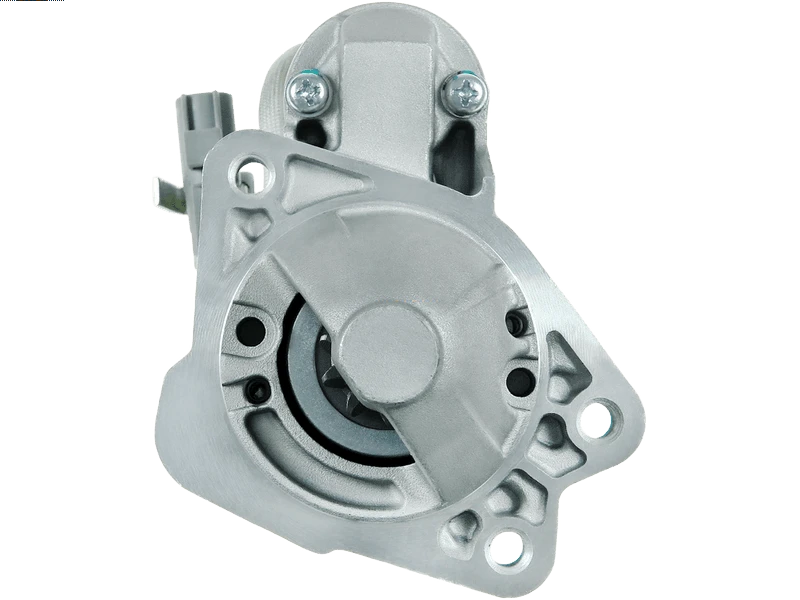

S5258S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 294.64 including GST

NZ$ 256.21 excluding GST
each
S5258S
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

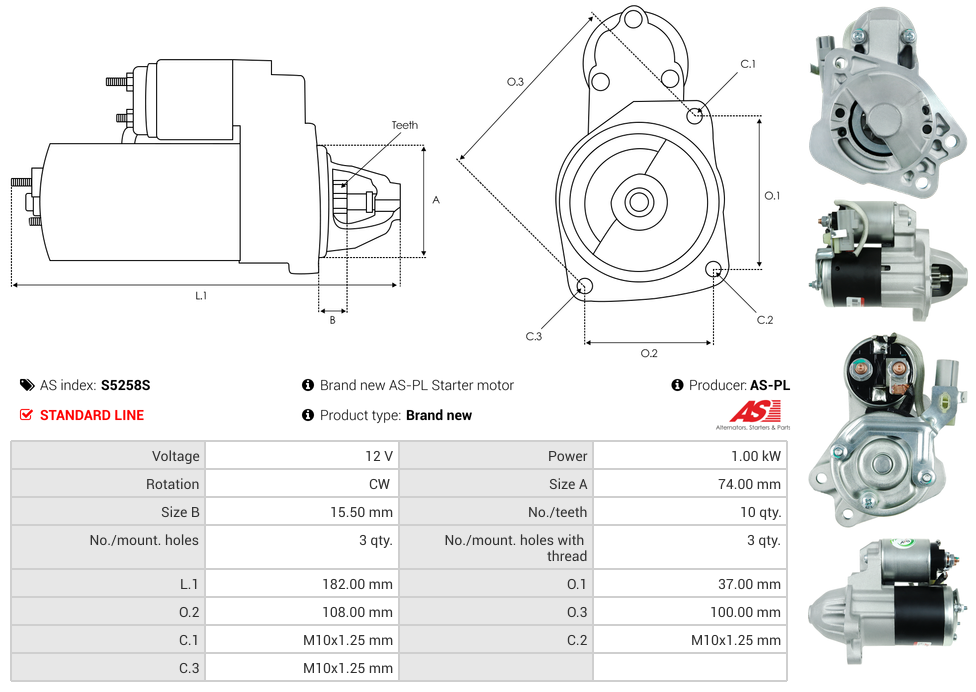

Kilowatt1 kW
Length (L.1)182 mm
Mount Hole Center - Center (O.1)37 mm
Mount Hole Center - Center (O.2)108 mm
Mount Hole Center - Center (O.3)100 mm
Mount Hole Diameter (C.1)M10x1.25 mm
Mount Hole Diameter (C.2)M10x1.25 mm
Mount Hole Diameter (C.3)M10x1.25 mm
No./Mount holes3 qty
No./Mount holes with thread3 qty
No./Teeth10 qty
Pinion at Rest (B)15.5 mm
RotationCW
Spigot Diameter (A)74 mm
Unit TypeMITSUBISHI
Voltage12 V
Make Model Type Year
MAZDA 3 1.6 MZR [Z6] 02.2009-09.2014
M000T33371 STM9371 Z66818400 88214179 AEX1169 DRS0709 UD03088S M0T33371
88214179 AEX1169 DRS0709 M000T33371 M0T33371 STM9371 UD03088S Z66818400
