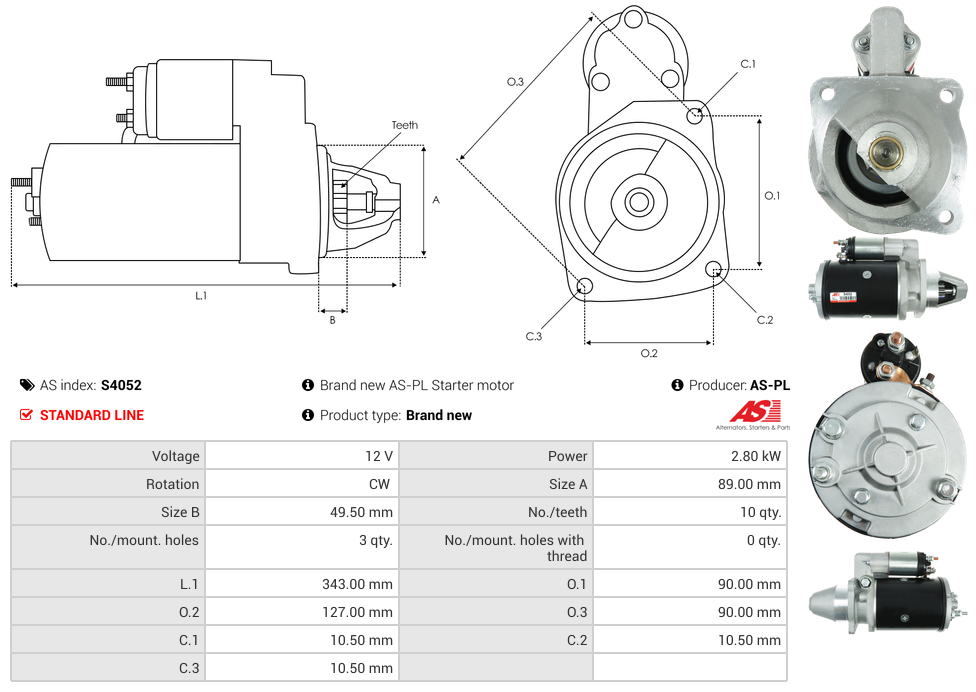

Specifications
| Kilowatt | 2.8 kW |
| Length (L.1) | 343 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 49.5 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS/MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ERF | E6.18 5.9 | [6BTA-180] | 01.1986-12.1993 |
| ERF | E6.21 5.9 | [6BTA-180] | 01.1990-12.1993 |
| ERF | ES6.18 2.8 | [6BTA-180] | 01.1989-12.1993 |
| ERF | ES6.18 2.8 | [6BTA-180] | 01.1993-12.1994 |
| JCB | Fastrac 3185 | (Cummins)[6BTA] | 01.1998-12.2002 |
| LEYLAND | Roadrunner 6.13 | [302] | 01.1986-12.1990 |
| LEYLAND | Roadrunner 8.13 | [302] | 01.1986-12.1991 |
Reference Information
CBU1188R 0009004475111 33907 111574 STR4202 27564F CST25131GS LRS706 STRS252 27564M CBU1188 AES7106 27564 DRS3426 MS418 ANM15646X 20405131OE 700.011.103 9004475111 22.0889 CS889 8442 6025131 8025 8212852 LRS00706 8EA737088-001 1259961 18065N-OE 27595A 858762 8055706 UD12321S 10889 25-2067 27595 20500706 26025110AVideo/Publications
10889 111574 18065N-OE 20405131OE 20500706 22.0889 25-2067 26025110A 27564 27564F 27564M 27595 27595A 33907 6025131 700.011.103 8025 8055706 8212852 8442 858762 8EA737088-001 9004475111 AES7106 CS889 CST25131GS DRS3426 LRS00706 LRS706 MS418 STRS252 UD12321SAdd Your Number
