Associated Numbers
UD17055SAS-PL
116428CARGO
8EA011611-781HELLA
36100-03300HYUNDAI / KIAList
36100-03301HYUNDAI / KIA
1197909MANDO
1201973MANDO
1197908VALEO
CST25129GSCASCO
9671CEVAM
12297EAI
STR0120ELECTROLOG
25-4447ELSTOCK
CS1541HC PARTS
J5210309HERTH+BUSS
255642KUHNER
336041LOGISTIK
LRS02774LUCAS
LRS2774LUCAS
5015864MEAT & DORIA
88214440POWERMAX
20405921OEREAL
RNL36100-03300RNL
6025129.1SANDO
30507NWAI / TRANSPO
30507N-OSWAI / TRANSPO
0986026700 Bosch ruil
116428 Cargo
1201973 Valeo show
150598132 PSH
254489 Elstock
255460 Elstock
3610003301 Kia show
3610003BB0 Hyundai
3610003BB6 Hyundai
608398 Valeo
8000968 Remy
ACS179 ATK
DRS1186 Remy
LRS03816 Lucas
LRS04298 Lucas
LRS3816 Lucas
S0001201973 Valeo show
VAL608398 Wood Auto

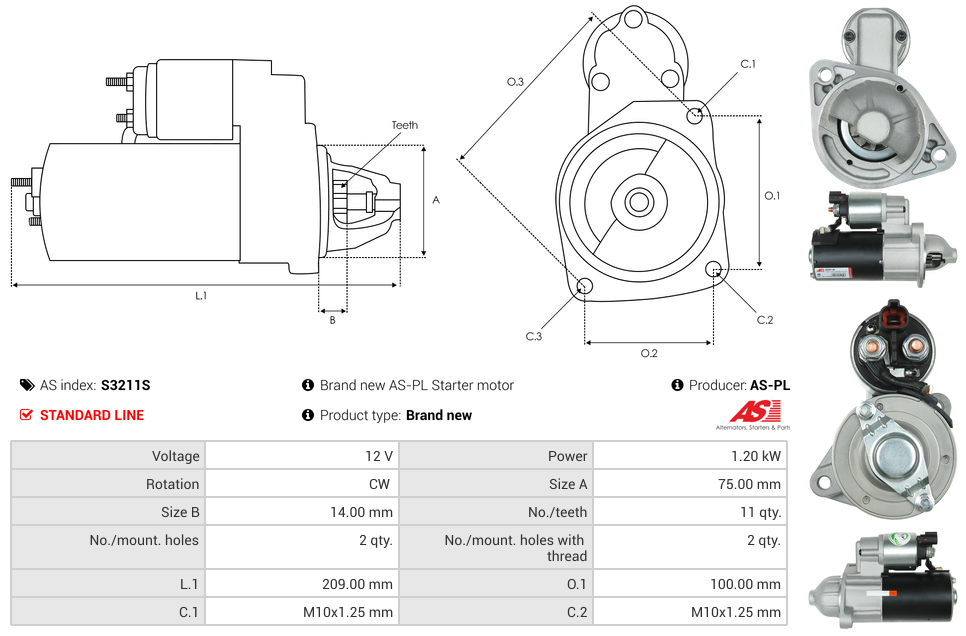

Specifications
Kilowatt | 1.2 kW |
Length (L.1) | 209 mm |
Mount Hole Center - Center (O.1) | 100 mm |
Mount Hole Diameter (C.1) | M10x1.25 mm |
Mount Hole Diameter (C.2) | M10x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 14 mm |
Rotation | CW |
Spigot Diameter (A) | 75 mm |
Unit Type | VALEO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
HYUNDAI | i10 1.0 | [G3LA] | 01.2011-12.2017 |
HYUNDAI | i10 1.0 | [G3LA] | 08.2013- |
HYUNDAI | i20 1.2 | [G4LA] | 03.2012-12.2015 |
Reference Information
6025129.1 12297 STR0120 88214440 5015864 116428 LRS02774 3610003400 30507N-OS 3610003200 UD17055S LRS2774 CST25129GS 36100-03300 36100-03301 RNL36100-03300 1197908 J5210309 30507N CS1541 1201973 9671 1197909 20405921OE 255642 25-4447 8EA011611-781 336041 36100-03BB0Video/Publications
1197908 12297 20405921OE 25-4447 255642 30507N 30507N-OS 36100-03300 6025129.1 88214440 8EA011611-781 9671 CST25129GS J5210309 LRS02774 LRS2774 RNL36100-03300 UD17055SAdd Your Number
