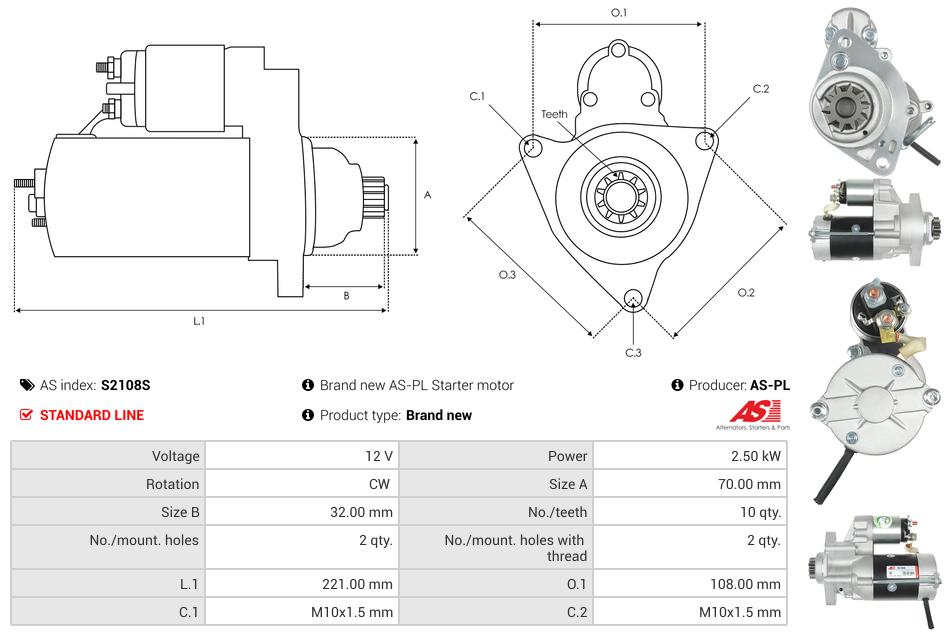

Specifications
| Kilowatt | 2.5 kW |
| Length (L.1) | 221 mm |
| Mount Hole Center - Center (O.1) | 108 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 32 mm |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Navara |
Reference Information
UD18543S 23300-EB70B S13-564Video/Publications
23300-EB70B S13-564 UD18543SAdd Your Number
