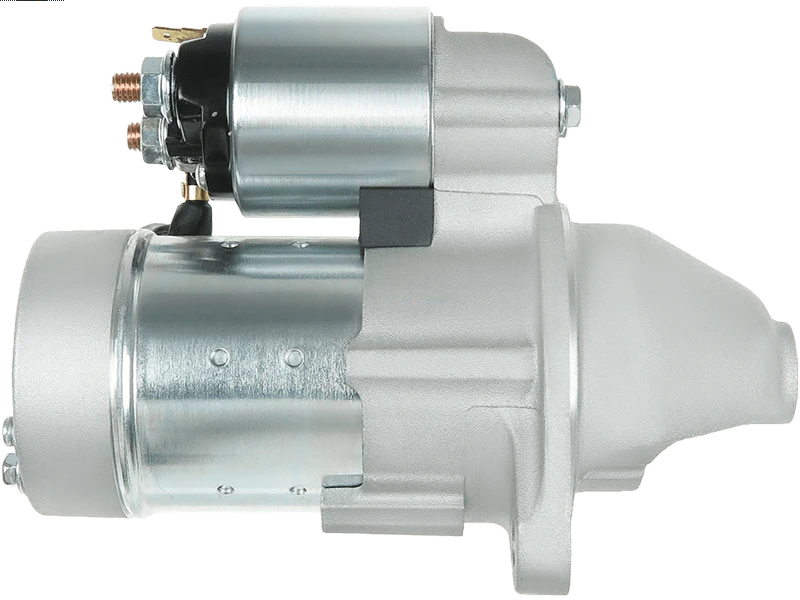

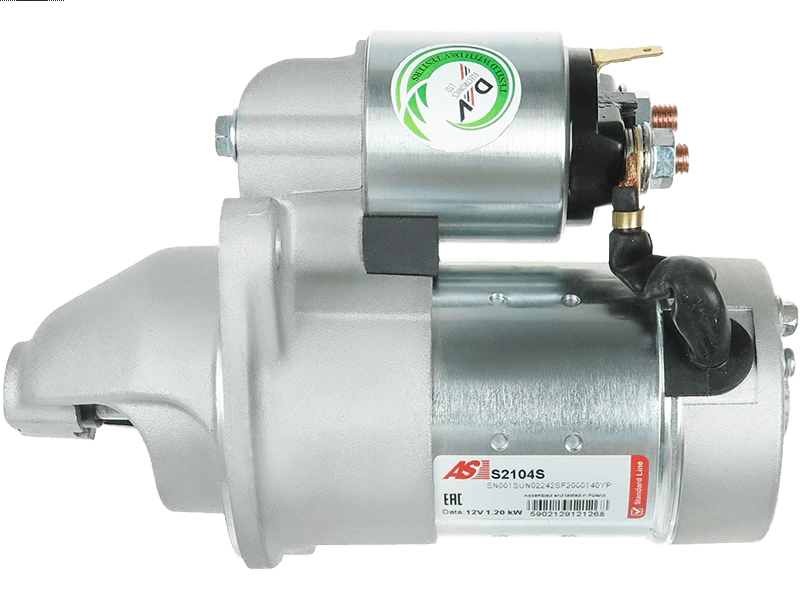

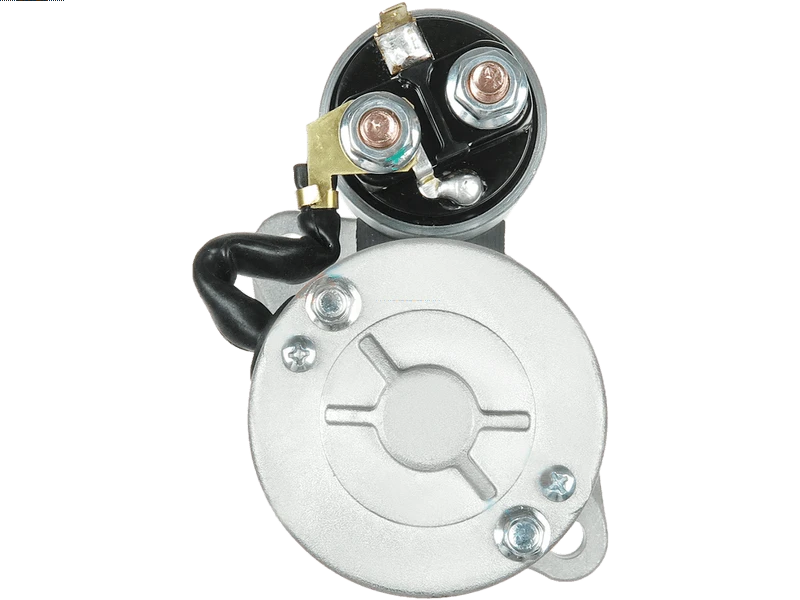

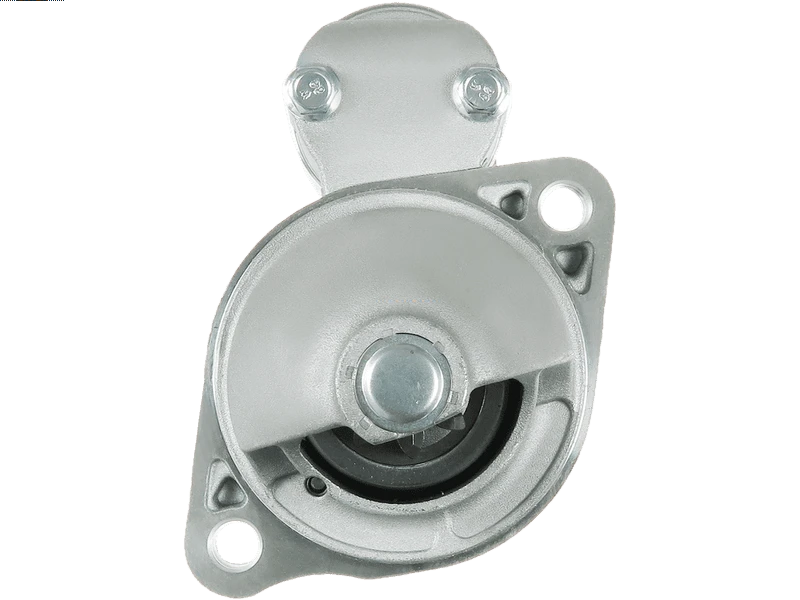

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 303.89 including GST
NZ$ 264.25 excluding GST
or four payments of $75.97
with
Learn More
each
S2104S
No stock in NZ currently
No stock in NZ currently
Information

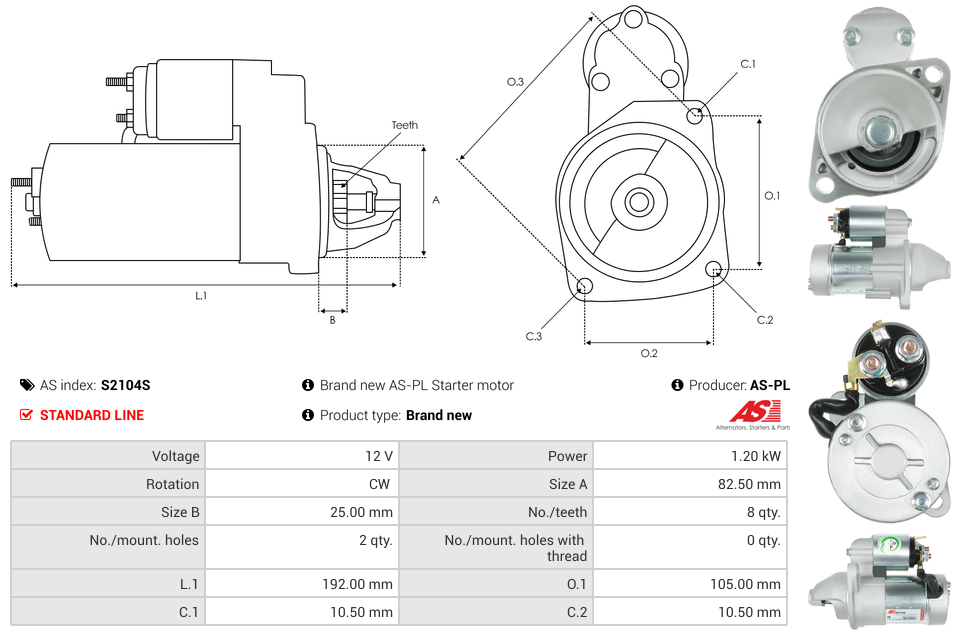

S114-833BSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 192 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KUBOTA | L2600DT | [D1403AE] | 01.1999-12.2003 |
| KUBOTA | L2600F | [D1403AE] | 01.1999-12.2003 |
| KUBOTA | L3000DT | [D1503ELA] | 01.1999-12.2004 |
| KUBOTA | L3000F | [D1503ELA] | 01.1999-12.2004 |
Reference Information
| 104-10247 | ROBERT'S |
| 18288N | WAI / TRANSPO |
| 91-25-1218 | WILSON |
| S114-833B | HITACHI |
| S-80444 | DIXIE |
| STH4833 | KRAUF |
| STR3048 | ELECTROLOG |
| UD20575S | AS-PL |
