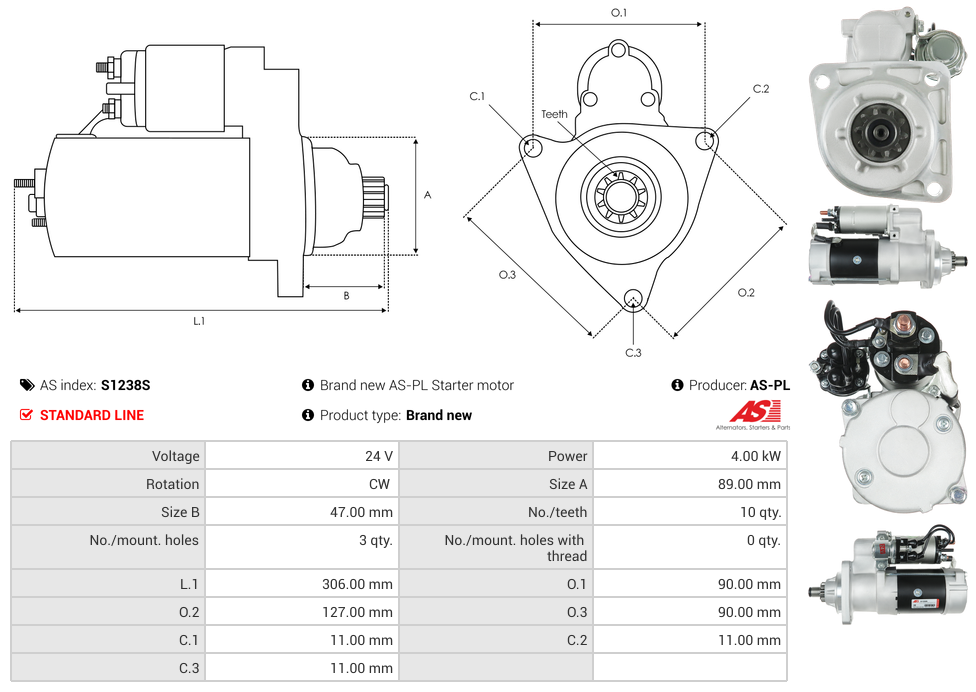

Specifications
Kilowatt | 4 kW |
Length (L.1) | 306 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 47 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | DELCO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CASE | 845 5.9 | [6A] | 01.2010-12.2013 |
NEW HOLLAND | RG140B 5.9 | [6A] | 01.2010-12.2013 |
Reference Information
REM8200386 8200745 STD0386 201-29203 TS-1832 UD18483S STR2062 8200386 STR2109 8200054 87739573 140-29121Video/Publications
140-29121 201-29203 8200054 8200386 87739573 REM8200386 STD0386 TS-1832 UD18483SAdd Your Number
