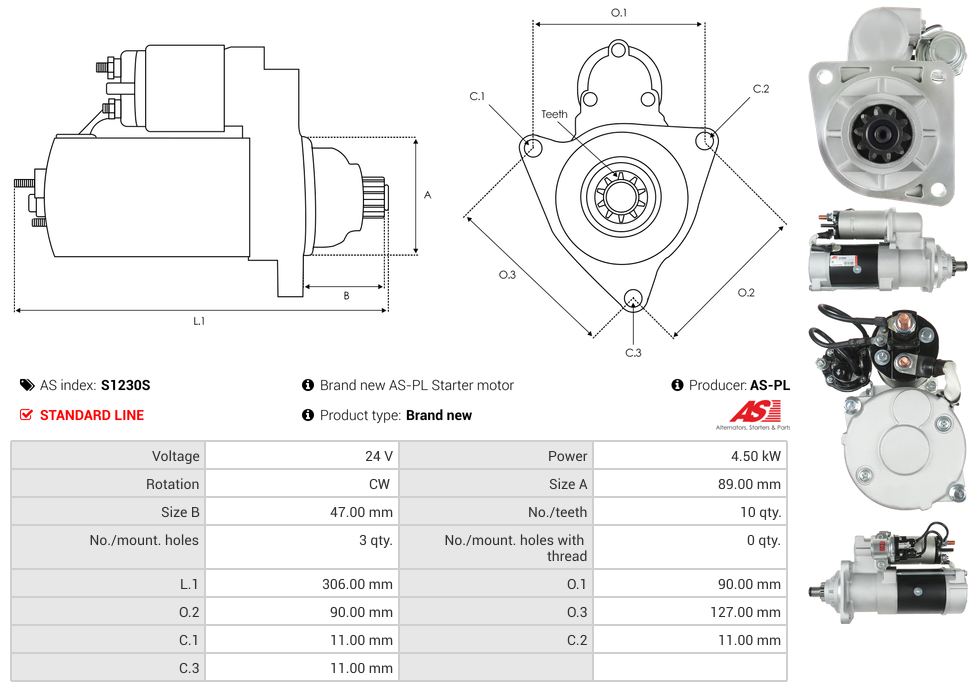

Specifications
Kilowatt | 4.5 kW |
Length (L.1) | 306 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 90 mm |
Mount Hole Center - Center (O.3) | 127 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 47 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | DELCO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
VW | Delivery 5.150 | ||
VW | Delivery 8.160 | ||
VW | Delivery 9.160 |
Reference Information
2071557 6060607 8200387 20409706OE CST60607AS 2P0911023E TS-1876 6060607.1 201-29211 20409706BN UD18484S CST60607GSVideo/Publications
201-29211 8200387 2P0911023E TS-1876 UD18484SAdd Your Number
