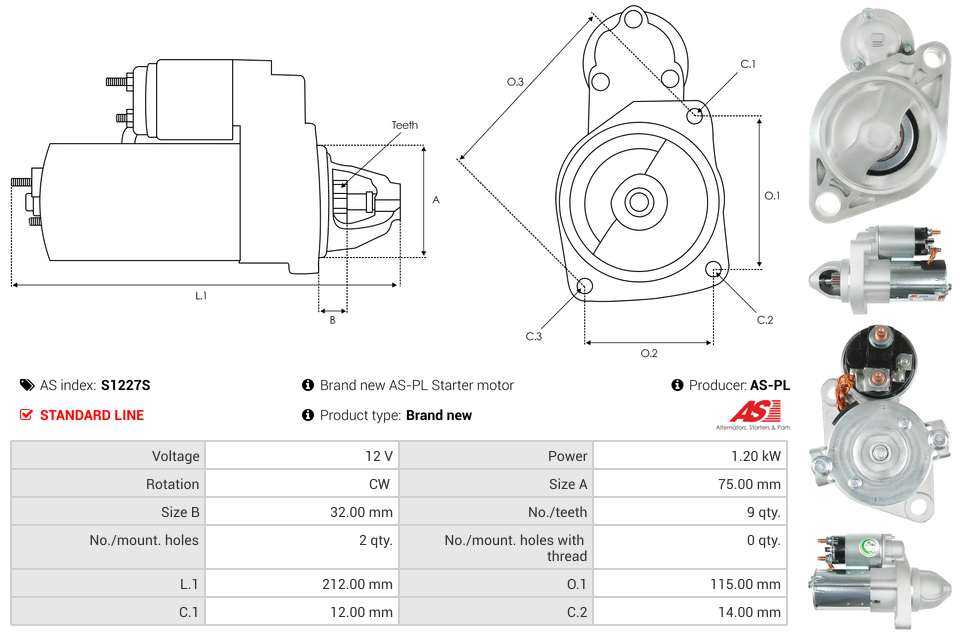

Specifications
| Kilowatt | 1.2 kW |
| Length (L.1) | 212 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 32 mm |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Various Models |
Reference Information
96238 UD20590SVideo/Publications
96238 UD20590SAdd Your Number
