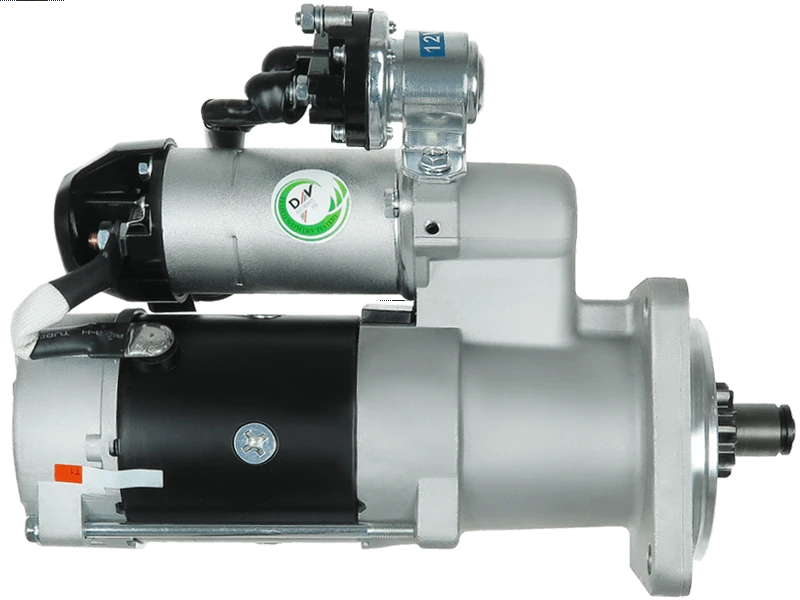

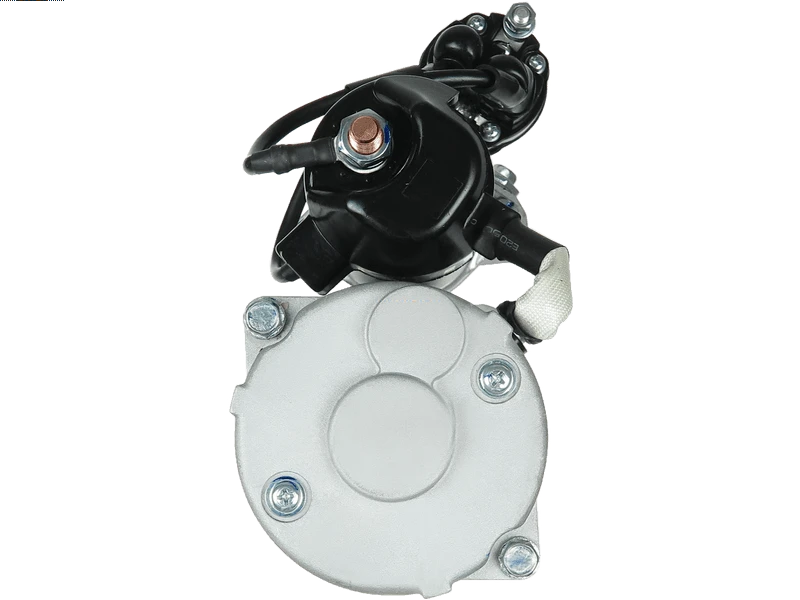

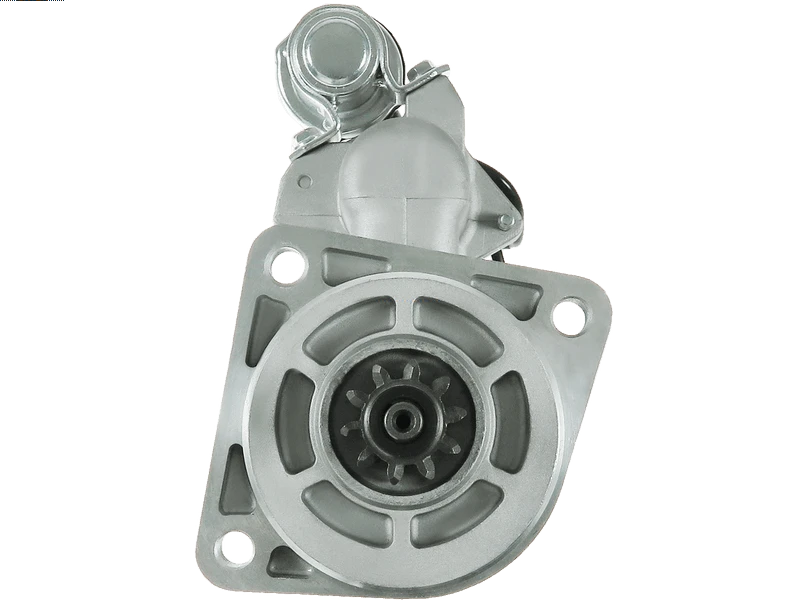

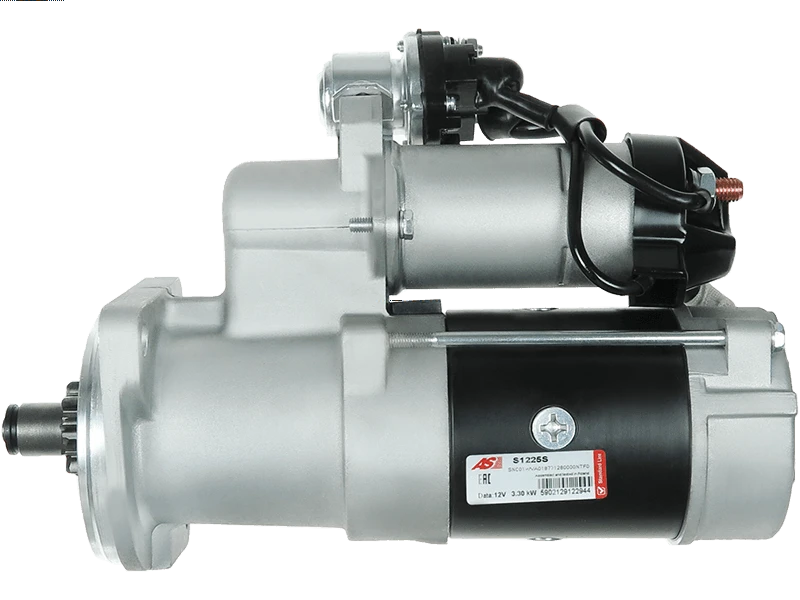

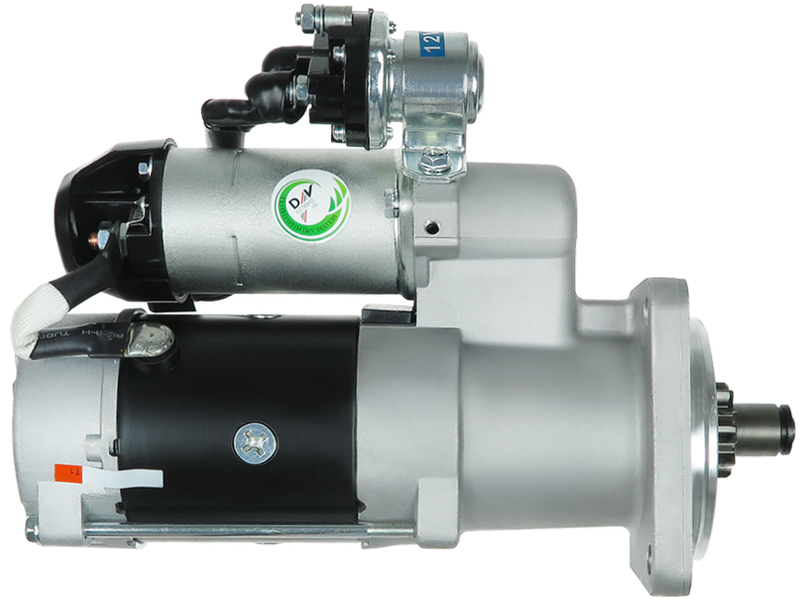

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 589.66 including GST
NZ$ 512.75 excluding GST
or four payments of $147.42
with
Learn More
each
S1225S
No stock in NZ currently
No stock in NZ currently
Information

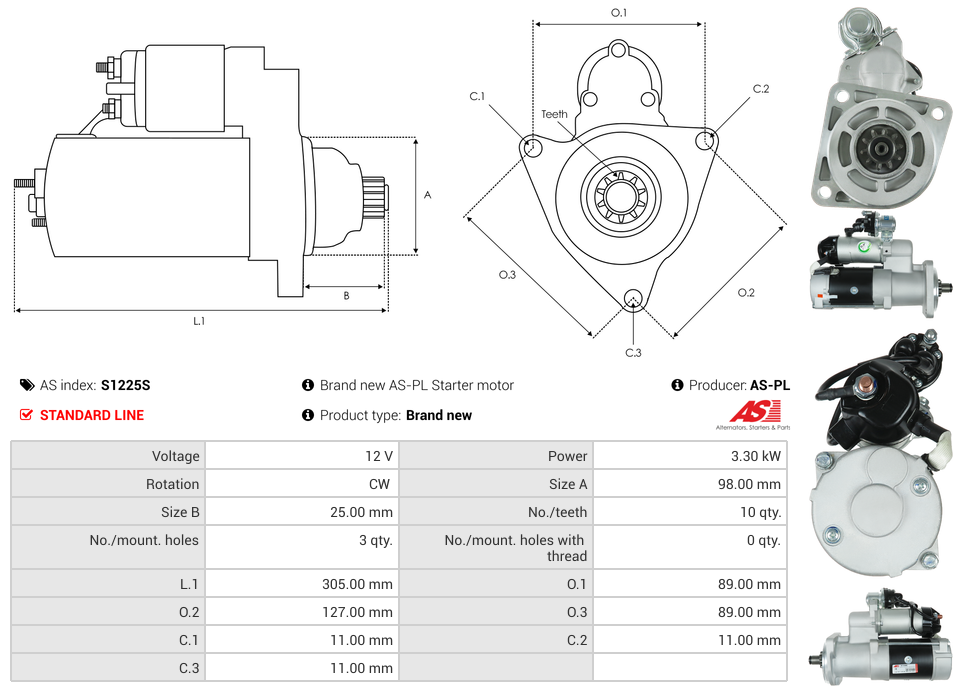

8200889Specifications
| Kilowatt | 3.30 kW |
| Length (L.1) | 305 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 89 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 98 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGRALE | 5075 | [D229-4] | 01.2012-12.2014 |
| AGRALE | 5085 | [D229-4] | 01.2012-12.2014 |
Reference Information
| 201-29122 | DIXIE |
| 8200854 | DELCO |
| 8200889 | DELCO |
| UD17274S | AS-PL |
Video/Publications
