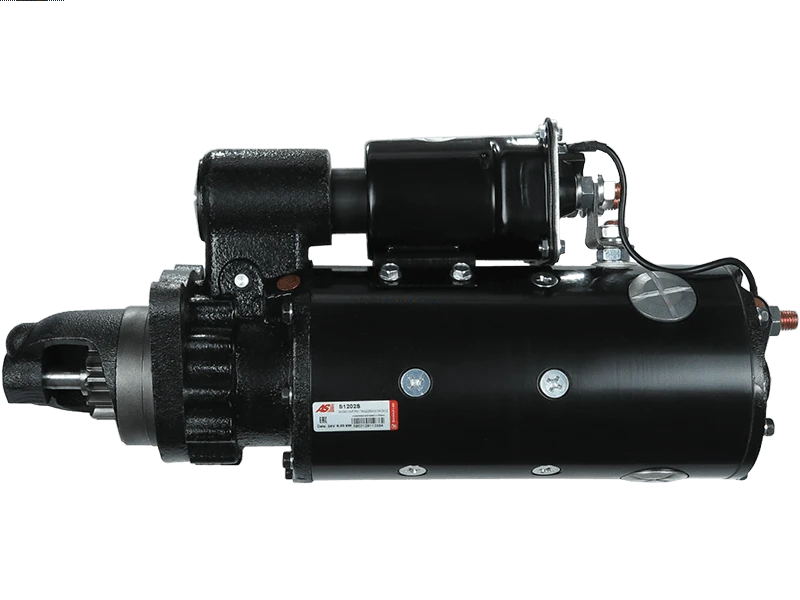

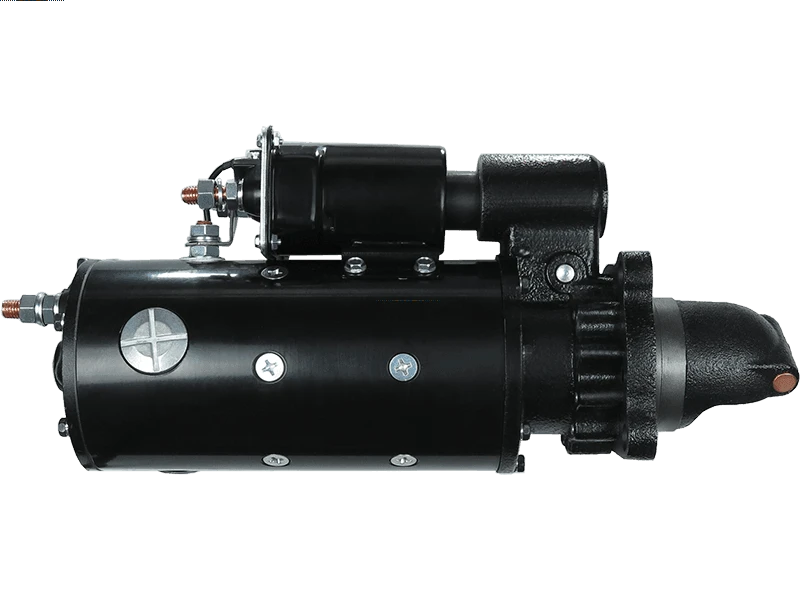

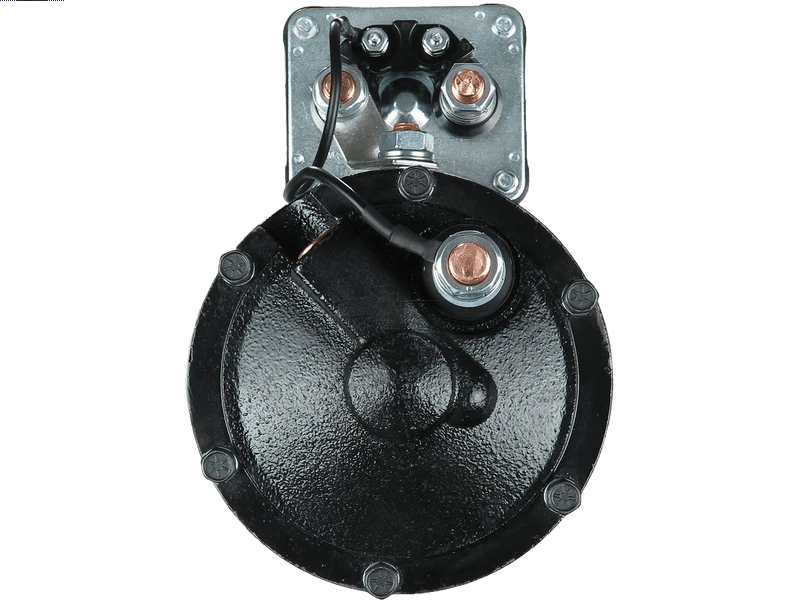

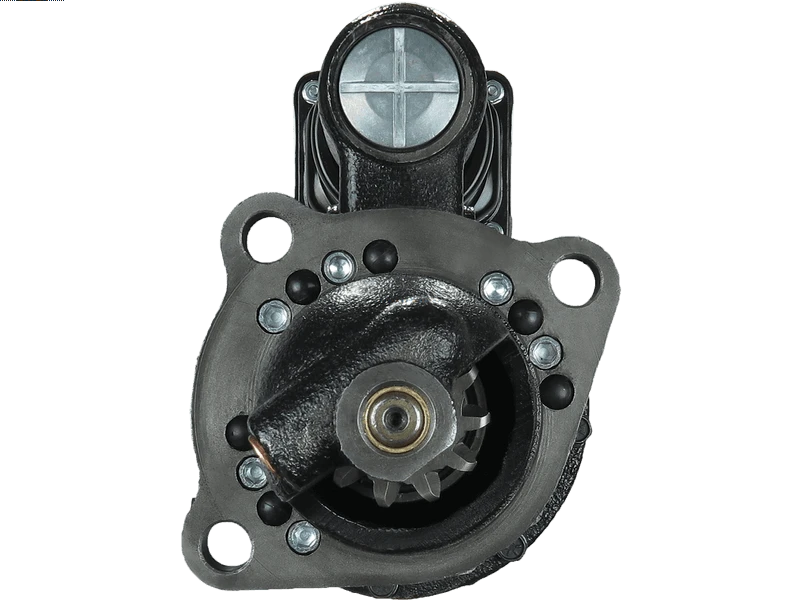

Specifications
Kilowatt | 9 kW |
Length (L.1) | 521 mm |
Mount Hole Center - Center (O.1) | 146.5 mm |
Mount Hole Center - Center (O.2) | 104 mm |
Mount Hole Center - Center (O.3) | 104 mm |
Mount Hole Diameter (C.1) | 16.5 mm |
Mount Hole Diameter (C.2) | 16.5 mm |
Mount Hole Diameter (C.3) | 16.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 47 mm |
Rotation | CW |
Spigot Diameter (A) | 92 mm |
Unit Type | DELCO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CATERPILLAR | 3508 | [3508] | 01.1986-12.1993 |
CATERPILLAR | 3512 | [3512] | 01.1986-12.1993 |
CATERPILLAR | 3516 | [3516] | 01.1986-12.1993 |
CATERPILLAR | 5130 | [3508] | 01.1992-12.1997 |
CATERPILLAR | 5130 | [3508] | 01.2006-12.2015 |
CATERPILLAR | 5130B | [3508B] | 01.1997-12.2004 |
CATERPILLAR | 5130B | [3508B] | 01.2006-12.2015 |
CATERPILLAR | 583K | [D342] | 01.1983-12.1989 |
CATERPILLAR | 589 | [3408] | 01.1983-12.1992 |
CATERPILLAR | 591 | [3412] | 01.1983-12.1992 |
CATERPILLAR | 594H | [D353] | 01.1981-12.1985 |
CATERPILLAR | 776B | [3508] | 01.1986-12.1992 |
CATERPILLAR | 776C | [3508] | 01.1992-12.1997 |
CATERPILLAR | 777B | [3508] | 01.1986-12.1992 |
CATERPILLAR | 777C | [3508] | 01.1992-12.2000 |
CATERPILLAR | D10 | [D348] | 01.1978-12.1986 |
CATERPILLAR | D10N | [3412] | 01.1986-12.1993 |
CATERPILLAR | D10R | [3412] | 01.1995-12.2005 |
CATERPILLAR | D11N | [3408] | 01.1986-12.1993 |
CATERPILLAR | D8K | [D342] | 01.1974-12.1982 |
CATERPILLAR | D8L | [3408] | 01.1982-12.1992 |
CATERPILLAR | D9L | [3412] | 01.1980-12.1986 |
CATERPILLAR | D9N | [3408] | 01.1986-12.1995 |
CATERPILLAR | D9R | [3408] | 01.2000-12.2015 |
Reference Information
9G6097 1109789 3604658RX 1109788 1993753 9G6096 7T9162 1993757 0R2697 STR80170 OR4267 1109781 338-3456 3902N 10461103 7G6097 91-01-4111 3T8452 641.017.113 3T8952 1109555 1109635 STR2611 1990291 0R4267 10455855 7N7049 7N6056 OR2697 7N6494 S1202S UD17200S 1990234 1990233 3T2784 1109834 3T5831 3T2782 1109836 3T2783 6T0643 6V0513Video/Publications
0R2697 0R4267 10455855 10461103 1109555 1109781 1109788 1109789 1109834 1109836 1990233 1990234 1990291 1993753 1993757 338-3456 3604658RX 3902N 3T2782 3T2783 3T2784 3T5831 3T8452 3T8952 641.017.113 6T0643 6V0513 7G6097 7N6056 7N6494 7N7049 7T9162 91-01-4111 9G6096 9G6097 OR2697 OR4267 STR80170 UD17200SAdd Your Number
