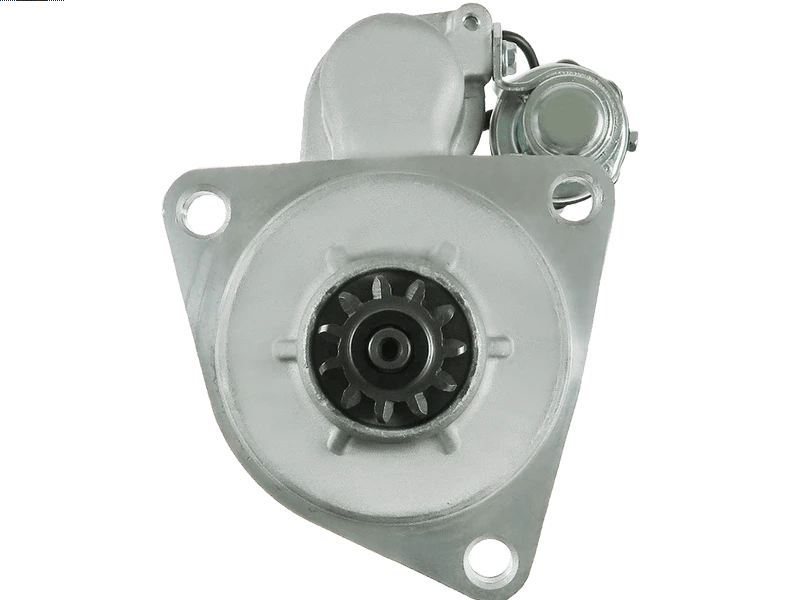

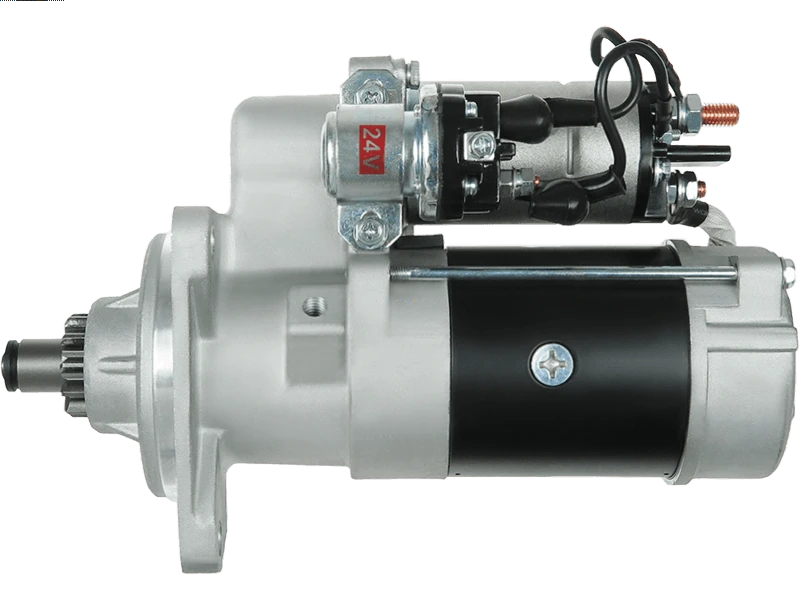

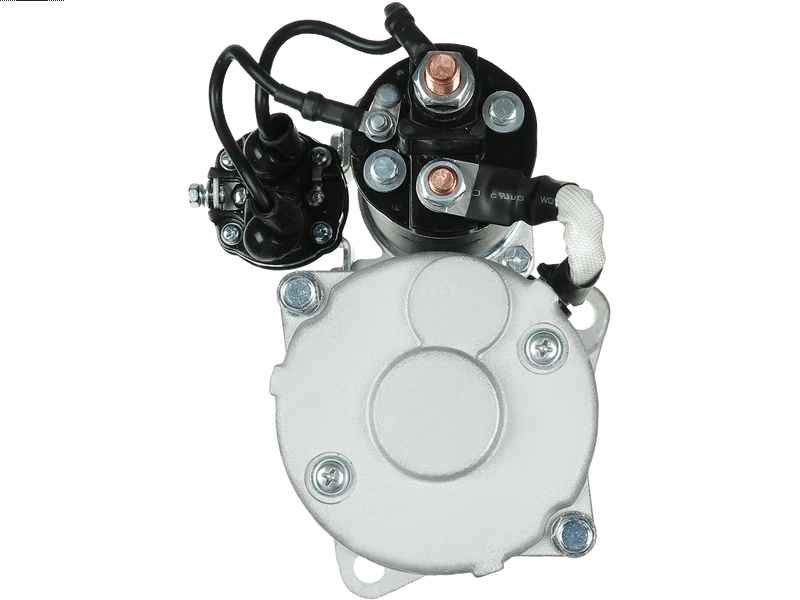

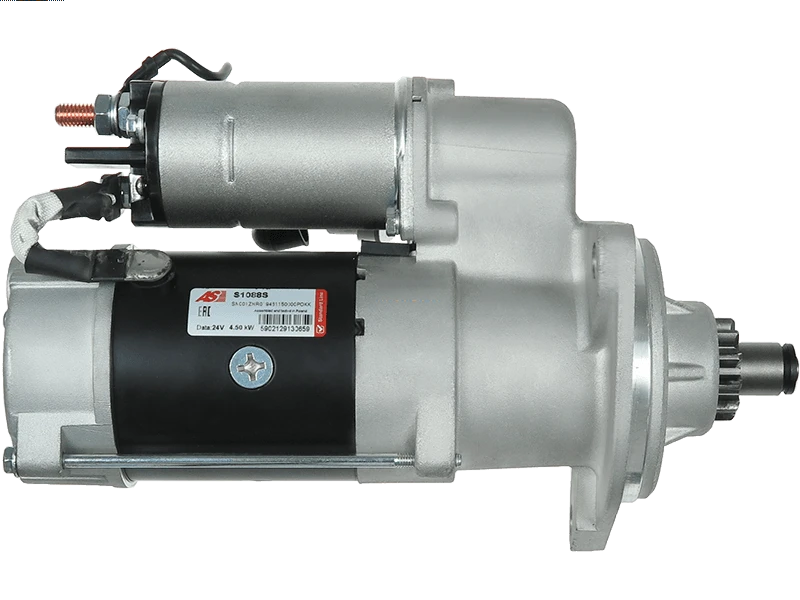

S1088S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S1088S
Price: 659.53 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DELCO

Price:

NZ$ 659.53 including GST

NZ$ 573.50 excluding GST

UOM:

each

Product Code:

S1088S

Quantity In Stock:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

Kilowatt	4.5 kW
Length (L.1)	306 mm
Mount Hole Center - Center (O.1)	111 mm
Mount Hole Center - Center (O.2)	111 mm
Mount Hole Center - Center (O.3)	135 mm
Mount Hole Diameter (C.1)	13 mm
Mount Hole Diameter (C.2)	13 mm
Mount Hole Diameter (C.3)	13 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	105 mm
Unit Type	DELCO
Voltage	24 V

Make	Model	Type
DOOSAN	DX170W
DOOSAN	DX225
DOOSAN	Engine	[DL06]
TEREX	TXL250-2

20460406BN 65.26201-7093 19080025 CST46604AS CST46604GS 65.26201-7075 140-29125 300516-00042 TS-1820 6046604 8200401 65.26201-7075A 8200222 254762 153005KA 254762D 6046604.1 UD18486S STD7093 968436577 DRS0285N 300516-00042C 231.003.113 300516-00042A STR80125 8200776 20460406OE DRS0285 DS1395

140-29125 153005KA 19080025 20460406BN 20460406OE 231.003.113 254762 254762D 300516-00042 300516-00042A 300516-00042C 6046604.0 6046604.1 65.26201-7075 65.26201-7075A 65.26201-7093 8200222 8200401 8200776 968436577 CST46604AS CST46604GS DRS0285 DRS0285N DS1395 STD7093 STR80125 TS-1820 UD18486S
